Product Details:
Payment & Shipping Terms:
|
| Pin: | 48pin | HS Code: | 8536909000 |
|---|---|---|---|
| P/N: | 48-1-13 | Color: | Black |
| MOQ: | 100 Pcs | Warranty: | One Year |
| Keywords: | Sealed Connector | Shipping By: | DHL\UPS\Fedex\EMS\ARAMEX |
| High Light: | TE Connectivity GF20 Automotive Connector,AMP Sealed GF20 Automotive Connector,AMP Sealed PBT Automotive Connector |
||

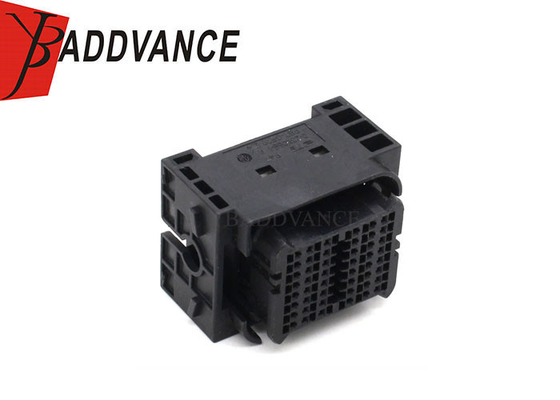

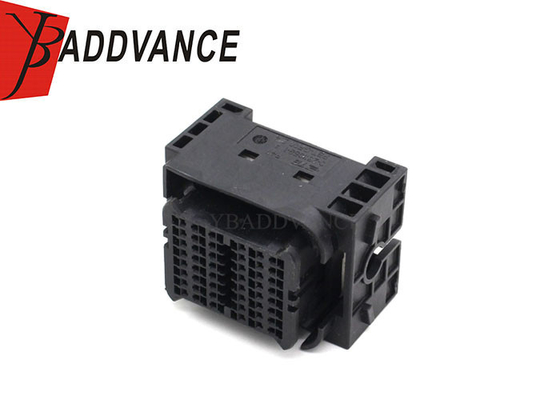

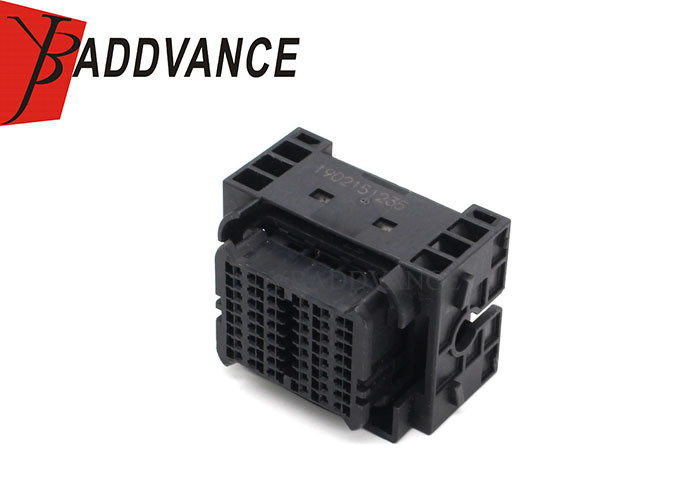

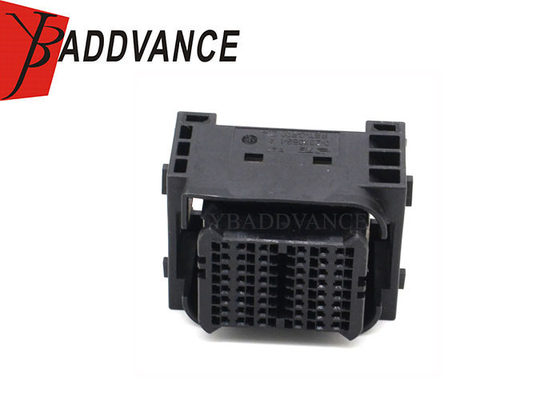

TE Connectivity 48 Pin Female AMP Sealed PBT GF20 F47 Automotive Connector
Description
48 Pin Female AMP Sealed PBT GF20 F47 Automotive Connector
This part come with the following types:
Place of Origin:Shaanxi, China
Brand Name:YBADDVANCE
Model Number:48-1-13
Type:ADAPTER
Application:Automotive
Gender:Female
Include:Terminals+Seals
Connector type:Sealed
This connector kits included the following:
1 x connector housing
48 x terminals
1 x inner seal
Specification
| Product Name | 48 Pin Female AMP Sealed PBT GF20 F47 Automotive Connector |
| Delivery Time | About 7-8 days |
| Way | 48 Way |
| Wire Size | 16-22AWG |
| P/N | 48-1-13 |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Gender | Female |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on.. |
