1-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800

1-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800
1-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800

Large Image :  1-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 1-2177063-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Series: HVP 800 Package: Normal Packaging
Part Status: Active Connector Type: Plug
Contact Type: Male Pin Number Of Positions: 3
Pitch: 0.906" (23.00mm) Mounting Type: Free Hanging (In-Line)
High Light:

1-2177063-1 TE Connectivity AMP Connectors

,

HVP800 TE Connectivity AMP Connectors

,

1-2177063-1





1-2177063-1 3 Pin Male TE Connectivity AMP+HVP800 Automotive Connectors







Description



3 Pin Male TE Connectivity AMP+HVP800 Automotive Connectors



This part come with the following types:



MOQ:100pcs
Certificate:ISO9001
Keywords:Multilock Connector
Package:Normal packaging
Shipping by:DHLUPSFedexEMSARAMEX
Color:Orange
Contact Termination:Crimp
Fastening Type:Lever Lock
Features:Connector Position Assurance (CPA), Sealed
Note:Contacts Not Included








Specification



Product Name 3 Pin Male TE Connectivity AMP+HVP800 Automotive Connectors
Delivery Time About 7-8 days
Way 3 Way
Wire Size 16-22AWG
P/N 1-2177063-1
MOQ 100 units/lot
Sealed/Unsealed Unsealed
Gender Male
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability Please send us drawing or samples to design OEM&ODM
Quality Control All goods will be 100% inspected before shipment
Operating Temperature range -40~120
Contact resistance nitial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Main products Electrical Connectors,wire harnesses and fuel injector repair kits.
Insulation resistance 100MΩ Min.
Including Connector housing,terminals,rubber seals
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Material PBT,Plastic PA66,pbt gf30 and so on...
Market Germany,Finland,UK,USA,CANADA,ITALY and so on..













More details about pictures

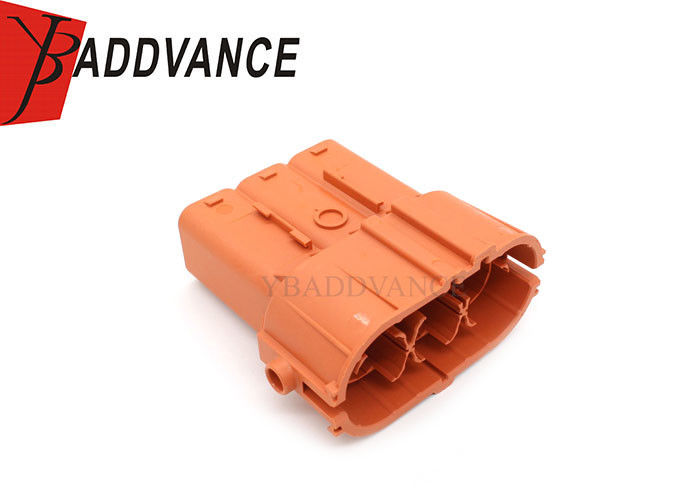

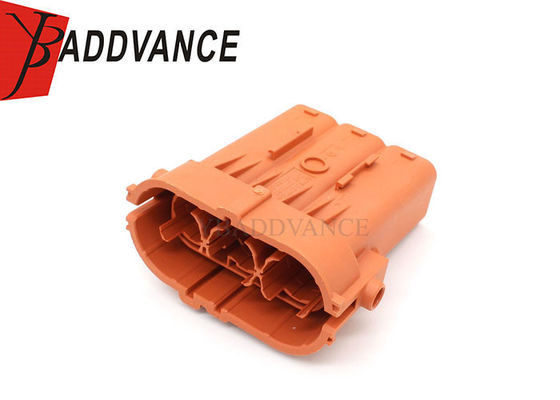

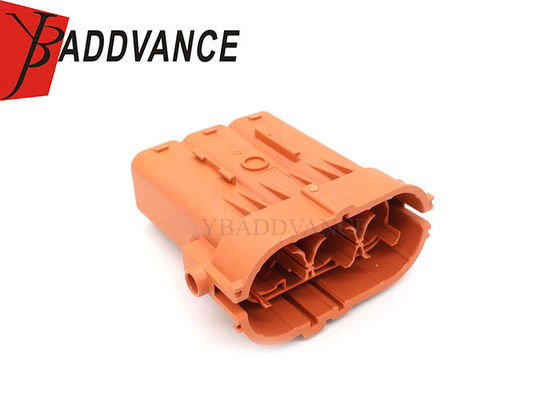

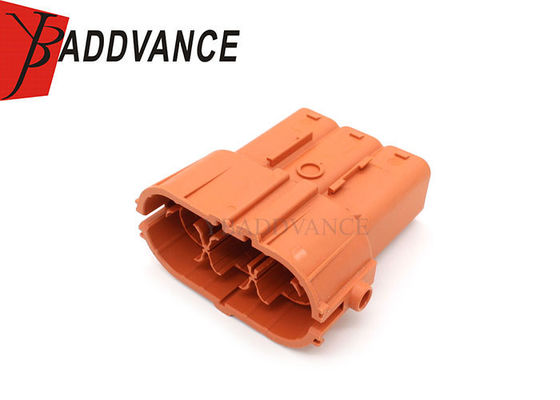

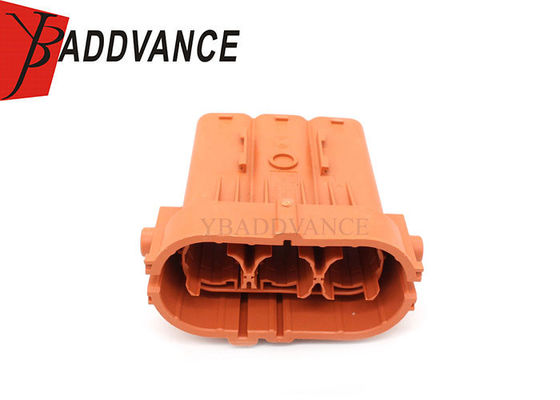

1-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800 01-2177063-1 3 Pin Male TE Connectivity AMP Connectors HVP800 1
