Product Details:
Payment & Shipping Terms:
|
| Number Of Positions: | 28 Pin | Part-No.: | 2203456-1 |
|---|---|---|---|
| Gender: | Female | Color: | Black |
| Application: | Fit For TE | Sealed/Unsealed: | Sealed |
| MOQ: | 100pcs | Material: | PBT |
| Highlight: | 28 Pin Female Connector Terminal,2203456-1 Female Connector Terminal,2203456-1 Needle Seat Wiring Harness |
||

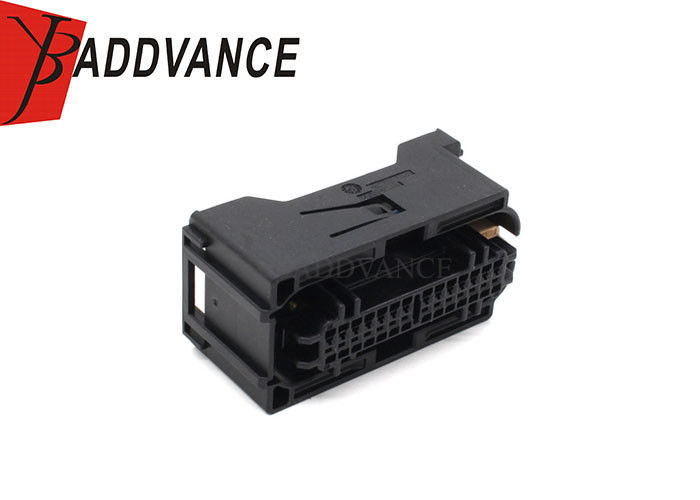

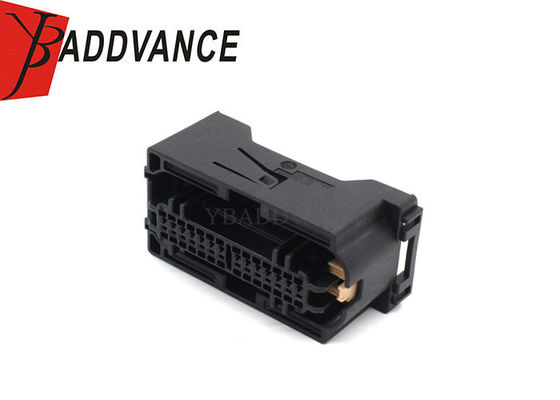

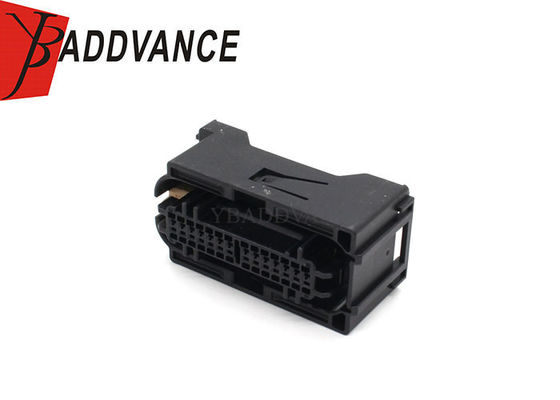

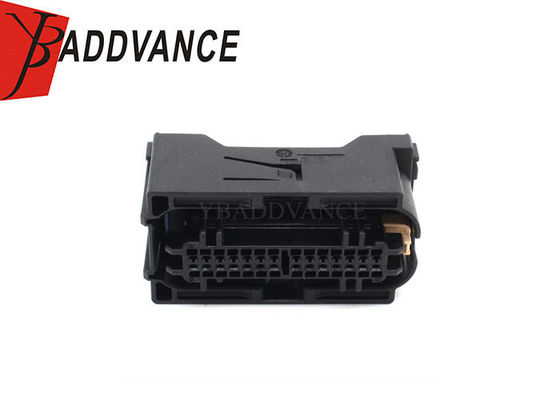

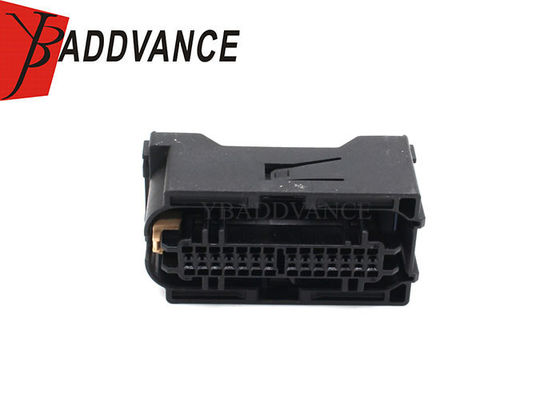

2203456-1 28 Pin Female Terminal Docking Needle Seat Wiring Harness Connector
Description
2203456-1 28 Pin Female Terminal Docking Needle Seat Wiring Harness Connector
This part come with the following types:
1 x black female housing
28 x rubber seals
28 x female terminal
Brand:YBADDVANCE
Model:2203456-1
Type:Connector
Application:Automotive Electronic
Male and female:male and female
code:a02614
MOQ:100PCs
Certificate:IATF 16949
Specification
| Product Name | 28 Pin Female Terminal Docking Needle Seat Wiring Harness Connector |
| Application | For auto |
| Sealed/Unsealed | Sealed |
| Gender | Female |
| VW OE NO. | 2203456-1 |
| Material | PBT |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Leak current | 10μA Max. |
| Insulation resistance | 100MΩ Min. |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
