Product Details:
Payment & Shipping Terms:
|
| Series: | 2.8 Series | Pin: | 8/4Pin |
|---|---|---|---|
| Part-No.: | 3-2109441-9 | Gender: | Female |
| Color: | Blue | Gross Weight: | 1.5kgs/100pcs |
| Application: | For Auto | Sealed/Unsealed: | Sealed |
| HS CODE: | 8536909000 | STYLE: | TE Connectivity AMP Connectors |
| Highlight: | 3-2109441-9 4 Pin Female Connector,MCP 2.8 4 Pin Female Connector,3-2109441-9 8 pin female connector |
||

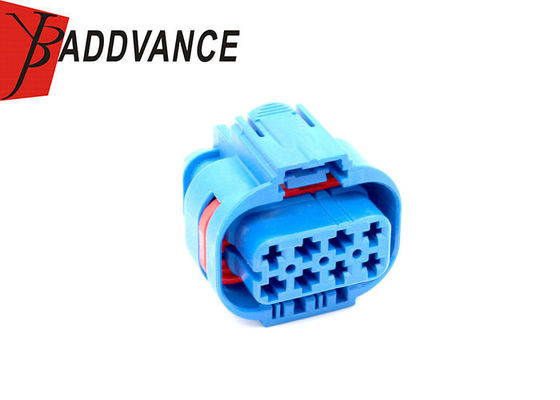

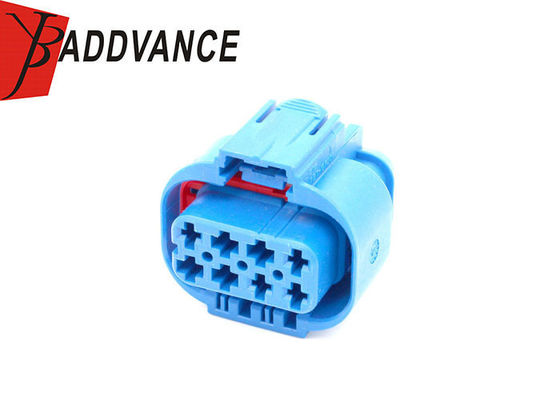

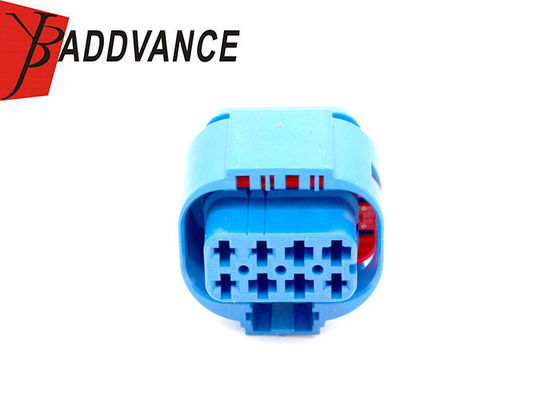

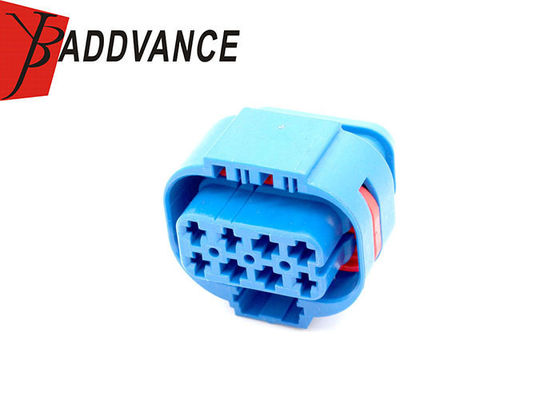

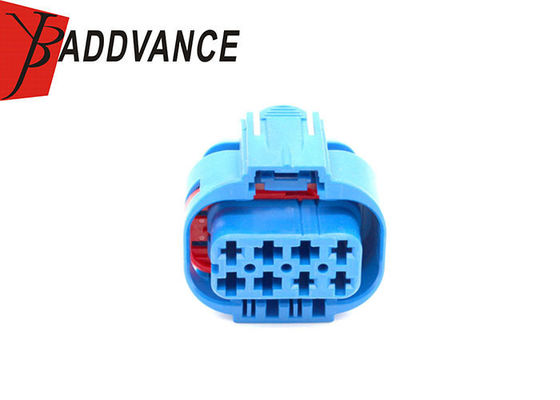

3-2109441-9 AMP MCP 2.8 Series 8/4Pin Female Connector ASSY S-BLU/D
Description
This part come with the following types:
Connector: Blue female connector housing
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 2.8 mm [ .11 in ]
Connector System : Wire-to-Board, Wire-to-Device
Number of Positions : 8
Centerline (Pitch) : 6 mm [ .236 in ]
Brand:YBADDVANCE
Series:2.8 series
Number of Rows:2 Row
Application:For auto
Specification
| Product Name | AMP MCP 2.8 Series 8/4Pin Female Connector |
| Delivery Time | About 3-7 days |
| Way | 8/4 Way |
| Wire Size | 16-22AWG |
| P/N | 3-2109441-9 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Blue |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
