Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Keywords: | TE Connectivity | Pin: | 5 Pin |
|---|---|---|---|
| Part-No.: | 282193-1 | MOQ: | 100 Pcs |
| Gender: | Female | Color: | Black |
| Sealed/Unsealed: | Sealed | Gross Weight: | 3.5kgs/100pcs |
| HS CODE: | 8536909000 | Warranty: | One Year |
| High Light: | 282193-1,5mm Amp Junior Power Timer,Sealed Amp Junior Power Timer |
||
282193-1 TE Connectivity AMP JR PWR Timer 5mm 5 Pin Female Connector
Specification
| Product Name | TE Connectivity AMP JR PWR Timer 5mm 5 Pin Female Connector |
| Including | Connector housing,terminals,rubber seals |
| Way | 5 Way |
| P/N | 282193-1 |
| Gender | Female |
| Delivery Time | About 3-7 days |
| Sealed/Unsealed | Sealed |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Gross weight | 1.5kgs/100 pieces |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
Description

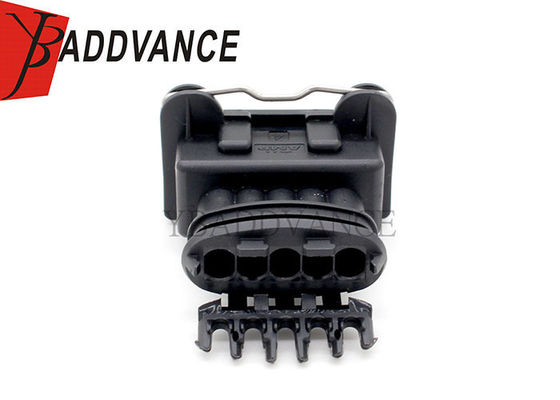

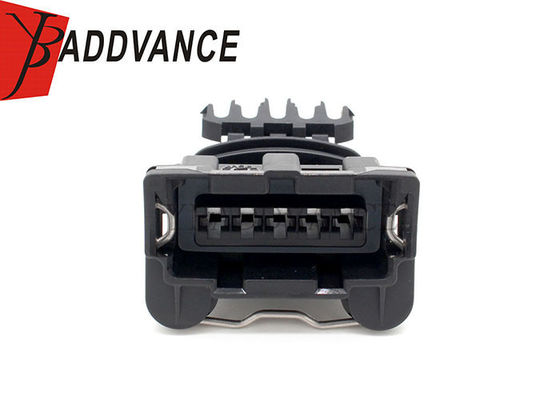

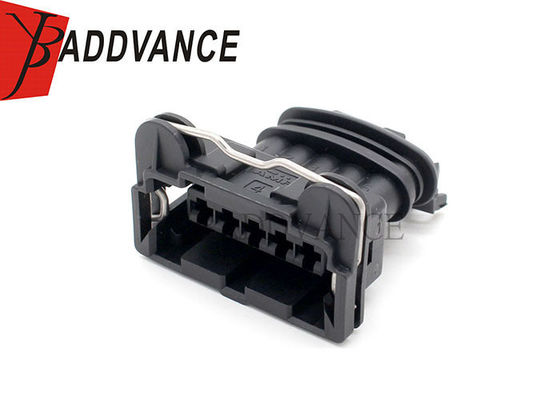

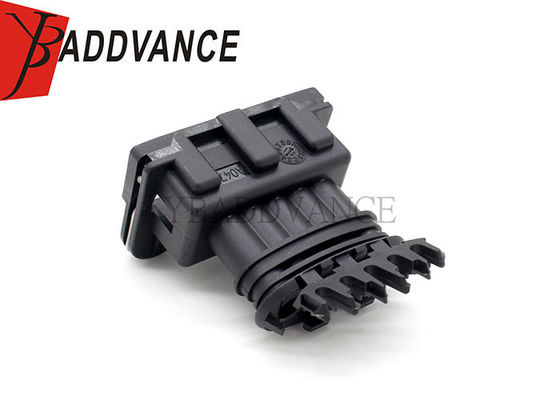

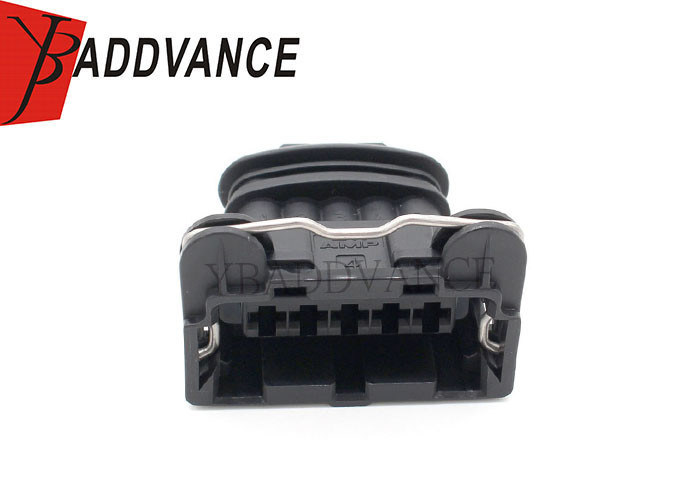

282193-1 TE Connectivity AMP JR PWR Timer 5mm 5 Pin Female Connector
This part come with the following types:
1 x Black female housing
5 x terminal
Application:For Automotive
