Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Number Of Positions: | 2 Pin | Part-No.: | 0-2236114-1 4K0973702A |
|---|---|---|---|
| Application: | For VW Audi | Sealed/Unsealed: | Sealed |
| STYLE: | Automobile Cable Wiring Connector | Color: | Black |
| Gender: | Female | Warranty: | One Year |
| Highlight: | Sealed TE Connectivity AMP Connectors,2 Pin TE Connectivity Connectors |
||

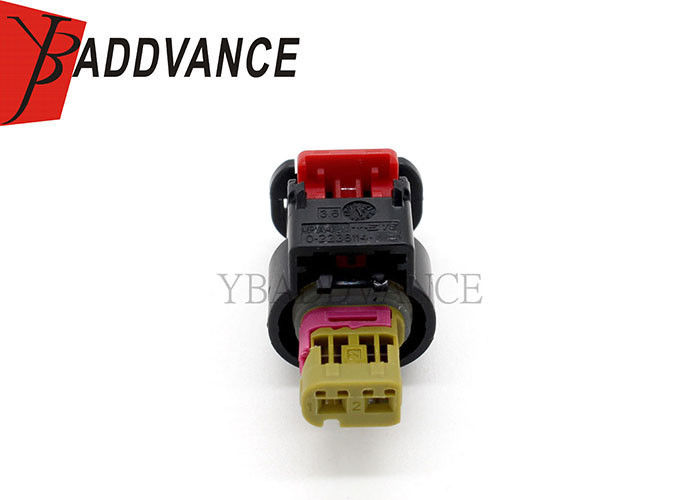

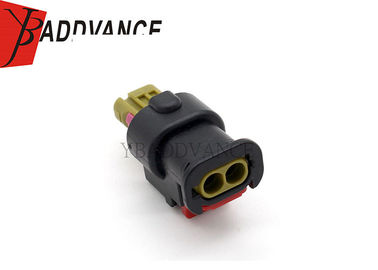

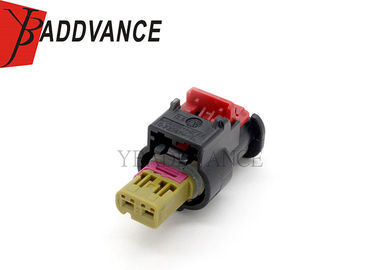

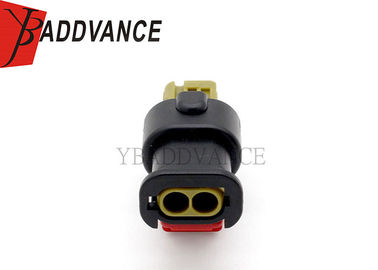

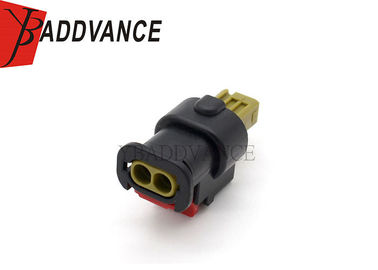

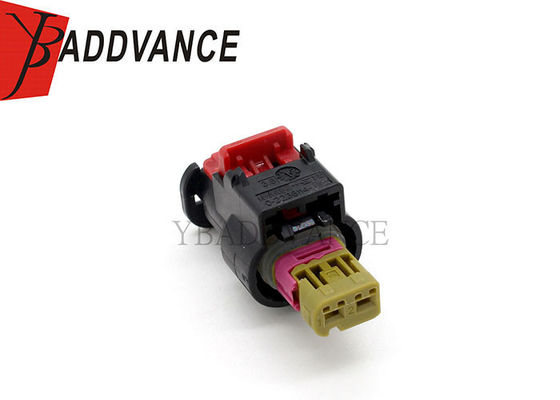

2 Pin Female Sealed Automobile Cable Wiring Connector For VW 0-2236114-1 4K0973702A
Specification
| Sealed/Unsealed | Sealed |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | 0-2236114-1 4K0973702A |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 2 Pin Female Sealed Automobile Cable Wiring Connector |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 2 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Female |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
This part come with the following types:
Brand: YBADDVANCE
Connector Style :Automobile Cable Wiring Connector
Connector System : Cable-to-Cable
Number of Positions : 2
Sealed/Unsealed: Sealed
Gender: Female
Color:Black
MOQ:100pcs
Application:For VW Audi
Hot products
| TE Connector | Gender | Pin number |
| 0-2112986-1 A | Female Connector | 2 Pin |
| 0-2112986-2 A | Female Connector | 2 Pin |
| 0-2236114-1 B | Female Connector | 2 Pin |
| 1-1924067-4 | Female Connector | 2 Pin |
| 1-2296694-3 | Female connector | 2 Pin |
| 1-1924067-6 | Female Connector | 2 Pin |
| 2-2112986-5 A | Female Connector | 2 Pin |
| So on.. | ... | ... |
