776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

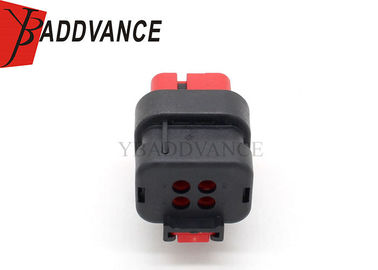

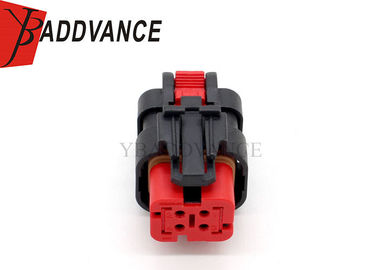

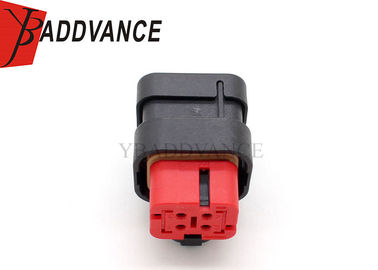

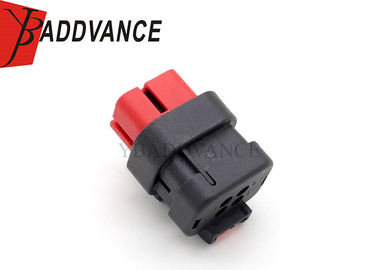

776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1

776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1
776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1 776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1 776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1 776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1

Large Image :  776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 776524-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Part-No.: 776524-1 Application: For Truck / Bus
HS CODE: 8536909000 Warranty: One Year
Way: 4 Way Gross Weight: 2kgs/100pcs
Gender: Female Color: Black
STYLE: TE Connectivity AMP Sealed/Unsealed: Sealed
High Light:

te connectivity automotive connectors

,

amp junior power timer connector

776524-1 4 Pin TE Connectivity Amp 16 Series Connectors 18-20AWG Mates with 776536-1





Description



776524-1 4 Pin TE Connectivity Amp 16 Series Connectors 18-20AWG Mates with 776536-1

This part come with the following types:



Mounting Type : Cable Mount
Gender : Female
Colour : Red
Height : 26.8mm
Housing Material : Glass Fibre Reinforced PBT
Width : 25.33mm
Depth : 39.95mm
Number Of Rows : 2
Series : AMPSEAL 16
Number Of Contacts : 4
Type : Automotive connector housing
Rohs : RoHS Certificate of Compliance





Specification



Number of Positions 4 Pin
Original number 776524-1
Material Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze.
Product Name 4 Pin TE Connectivity Amp 16 Series Connectors
Male/Female Female
Quality Control All goods will be 100% inspected before shipment
Wire Size 16-20AWG
Color Black
Operating Temperature range -40℃~120℃
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Resistor 120 Ohm
MOQ 100 units/lot
Sealed/Unsealed Sealed
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





Hot products



AMP TE Connector Pin number Gender Color
776524-1 4 Pin Female connector Black+red
1-929346-1 12 Pin Male connector Black
1-967167-3 3 Pin Male connector Black
776433-1 6 Pin Female connector Black+red
1-967642-1 3 Pin Female connector Black
1-967640-1 4 Pin Female connector Black
776523-1 3 Pin Female connector Black+red
So on.. ... ... ...
