Product Details:
Payment & Shipping Terms:
|
| P/N: | 6187-6561 | Way: | 6 Way |
|---|---|---|---|
| Color: | White | Gender: | Male |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||

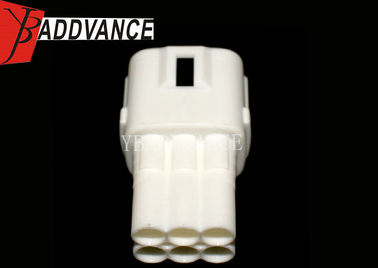

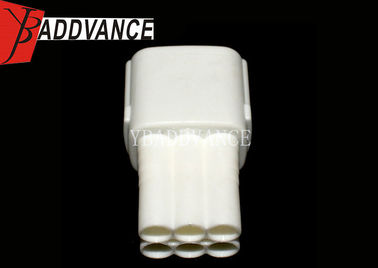

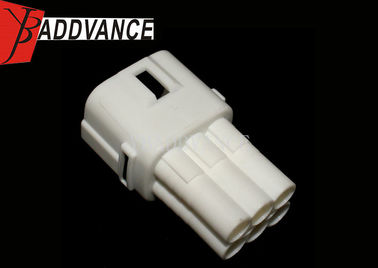

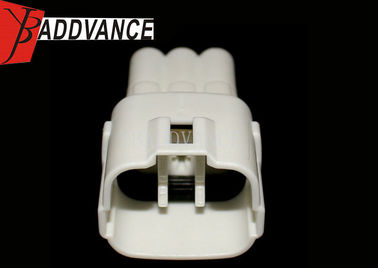

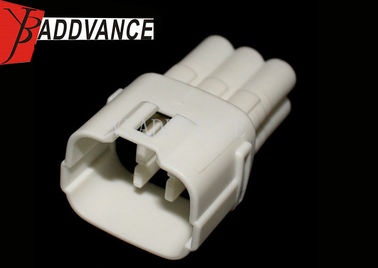

6187-6561 6 Pin MT Sealed Ignition Switch Dealer Mode Connector
Description
6 Pin MT Sealed Ignition Switch Dealer Mode Connector
Height : 20.6 mm
Length : 40 mm
Width : 24.9 mm
Mating parts: 6180-6771
Series: MT Sealed Series
It is used on H onda, K awasaki, S uzuki and Y ama ha motorcycles.
Application :S uzuki ignition switch connector on some GSXR ,S uzuki Service Mode Connector
Specification
|
Item name |
6187-6561 6 Pin MT Sealed Ignition Switch Dealer Mode Connector |
| P/N | 6187-6561 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
