Home ProductsSumitomo Sealed Connectors

2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-0172

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6189-0172 Way: 2 Hole
Type: Sealed Connector Gender: Female
Color: Grey HS Code: 8536909000
Feature: Waterproof WARRANTY: 1 Year
Martial: PBT/PA66 PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo mt connector

,

sumitomo electric connectors

6189-0172 TS Sealed Series 2 Pin Female Connector With Terminals And Seals





Description



TS Sealed Series 2 Pin Female Connector With Terminals And Seals

Height :18.85 mm
Width:29 mm
Length: 33.3 mm
Mating Parts: 6188-0096

Terminal : 8.0mm(312)

It is used for : T OYOTA * M ITSUBISHI * H YUNDAI * K IA * L EXUS *









Specification



Item name

6189-0172 TS Sealed Series 2 Pin Female Connector With Terminals And Seals
P/N 6189-0172

Wire Size

10-14AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles

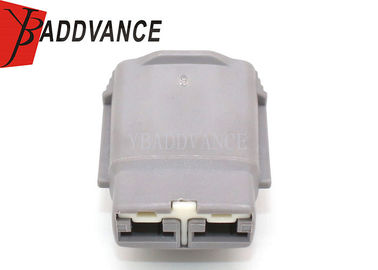

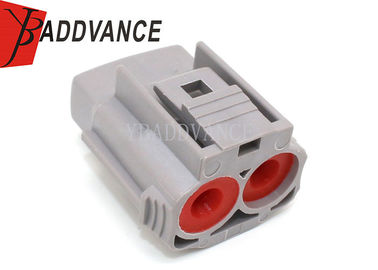

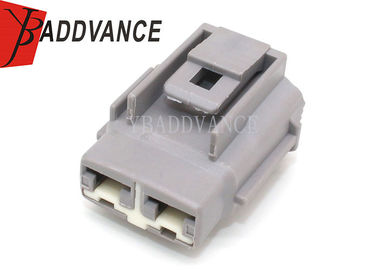

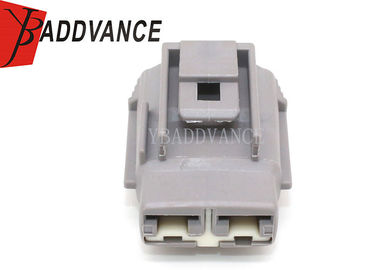

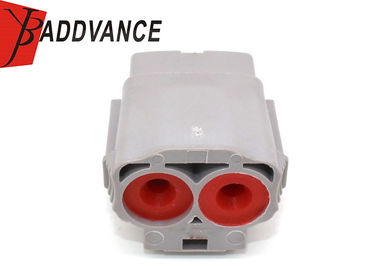

Product Picture Details



2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals 0

2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals 1

2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals 2
