Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 90980-11246 7283-8226-30 | Gender: | Female |
| Feature: | Waterproof | Way: | 2 Hole |
| HS Code: | 8536909000 | Type: | Fuel Injector Connector |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | ignition coil plug connector,ignition coil pack connector |
||

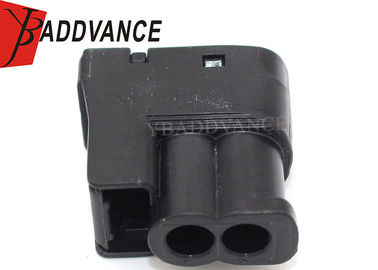

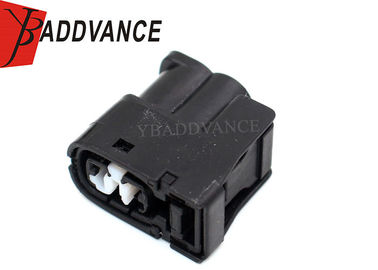

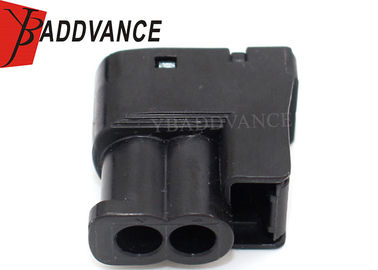

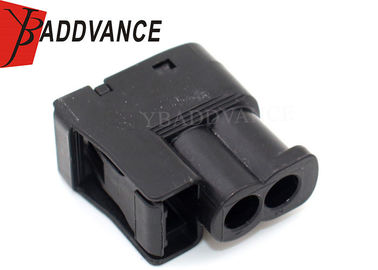

90980-11246 7283-8226-30 2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota
Description
2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota
Please check the photos to ensure that it fits your application
1 Row ,2 way
Width :12.9mm
Height: 24.35mm
Length :26.1mm
Terminal Size: 2.30(090)
It come with :1 housing +2 wire seal +2 terminals
For the crimp connections ,it can also be soldered if required
Fits wire from 16 to 20 AWG
Temperature Range:-40 to 120deg.C
Specification
|
Item name |
90980-11246 7283-8226-30 2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota |
| P/N | 90980-11246 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin fuel injector Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
