Product Details:
Payment & Shipping Terms:
|
| Connector Style: | Housing For Female Terminals | Mounting: | Cable Mount |
|---|---|---|---|
| Application: | Fit For Ford Ignition Coil | HS Code: | 8536909000 |
| Sealed / Unsealed: | Sealed Connector | Way: | 3 |
| Connector Type: | Plug , Socket | Housing Color: | Grey |
| Housing Material: | PBT | Brand: | YBADDVANCE |
| Highlight: | ignition coil plug connector,ignition coil pack connector |
||

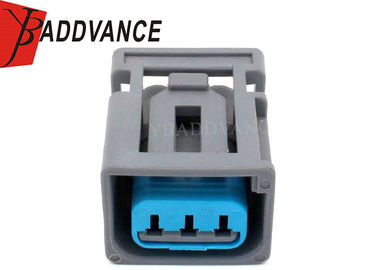

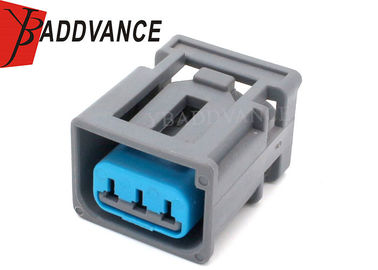

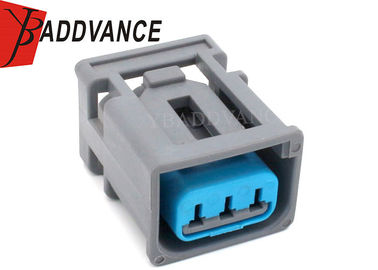

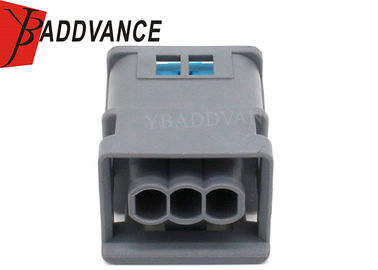

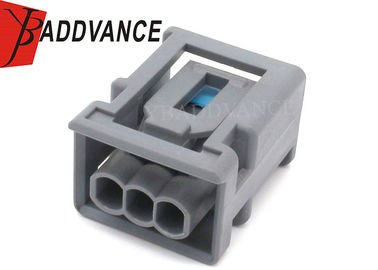

Grey 3 Way Sealed Female Coil Plug Connector Fit For Ford 1W7T-14A464-MA
Description
3 way coil connector (Commonly used on Focus COIL with cables running to engine wiring loom) but also used on some Fiesta, Fusion, C Max and Mondeo.
This connector has many uses including coil and some cam shaft sensors
What's Included:
1 X Female Housing
3 X Wire Seals
3 X Female Terminals
1 X Blue Locking
Specification
|
Item name |
3 Way Coil Plug Connector |
| P/N | 1W7T-14A464-MA |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin coil connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
