Product Details:
Payment & Shipping Terms:
|
| P/N: | 6189-0156 | Lock P/N: | 7165-0095 |
|---|---|---|---|
| Application: | RS125/RS250 | Color: | Gray |
| Number Of Position: | 2 Pin | Series: | HW 090 |
| Type: | Round Connector | Material: | PBT |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||

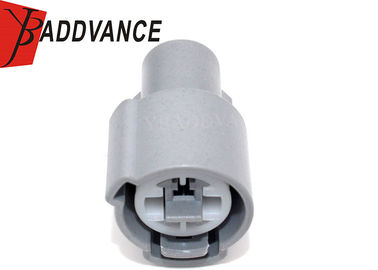

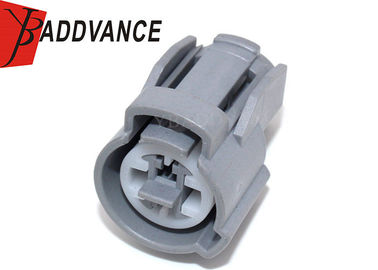

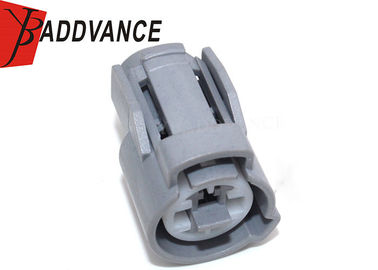

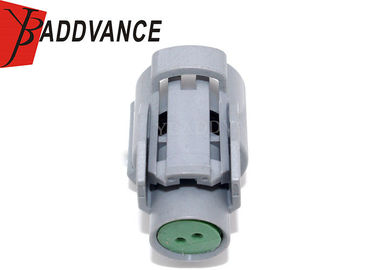

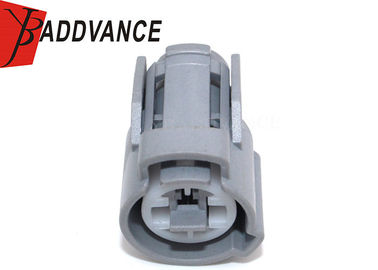

2 Pin Sumitomo HW Sealed Series Round Connector 6189-0156 For Water Temp Sensor
Product Description
2 Pin HW 090 Knock Sensor Coolant-Air Temp Sensor connector. with Retainer, Terminals, Seals
Sumitomo Part numbers 6189-0156, , 6918-0360, 7165-0095
Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)
This YBADDVANCE connector is fit forHonda/Acura Temp Sensor/Coolant Fan switch Connector
Radiator Fan Switch Connector for the following models-
Hayabusa GSX1300R 1999-2007
GSXR 1000 2001-2004
TL 1000S 1997-2001
GSXR 750 1996-2005
GSXR 600 1997-2005
What's Included:
1Xfemale 2 Way Connector
1XHarness Lock
2X Wire Terminal 20-16 AWG
2X Wire Seal
Specification
| Keywords | 2 Pin Air Temp Sensor connector |
| Sumitomo Part Number | 6189-0156 |
| Series | HW 090 sealed series |
| Male/Female | female |
| Material | PBT |
| Sealed/Unsealed | Sealed |
| Way |
2 way |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
