Home ProductsSumitomo Sealed Connectors

6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda

6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda
6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda

Large Image :  6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-0887 6918-1833

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6189-0887 6918-1833 Martial: PBT/PA66
Color: Black Gender: Female
Feature: Waterproof Type: Sumitomo Connector
Way: 3 Hole HS Code: 8536909000
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo mt connector

,

sumitomo electric connectors

6189-0887 6918-1833 3 Pin Sumitomo Ignition Coil Connector for Honda





Description



3 Pin Sumitomo Ignition Coil Connector for Honda

It is the Ignition Coil Connector

Width :21.7 mm

Height: 15.4 mm

Length :24.5mm

1 Row , 3 Way

Mating Part : 6188-4739

Lock :6918-1833

Width :13.5mm

Height :7.5mm

Series : HX Sealed

Fits wire from 18 to 22 AWG

It is middle rib/slot , please check it carefully before you buy it









Specification



Item name

6189-0887 6918-1833 3 Pin Sumitomo Ignition Coil Connector for Honda
P/N 6189-0887 6918-1833

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles

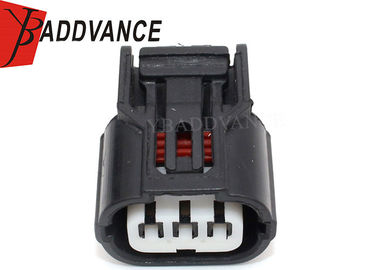

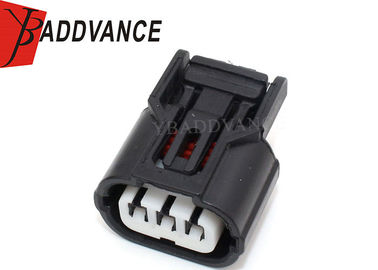

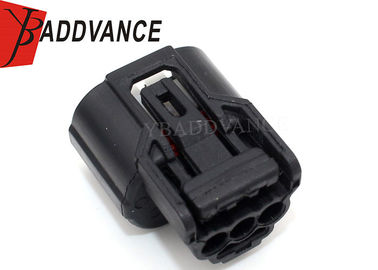

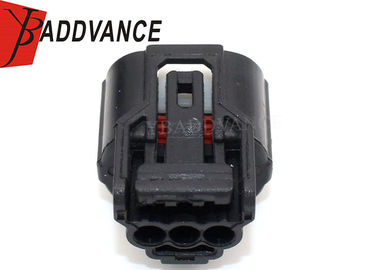

Product Picture Details



6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 0

6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 1

6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda 2
