Product Details:
Payment & Shipping Terms:
|
P/N: | 6189-0552 6918-1260 | Martial: | PBT/PA66 |
---|---|---|---|
Color: | Black | Gender: | Female |
Feature: | Waterproof | Type: | Sumitomo Connector |
Way: | 2 Hole | HS Code: | 8536909000 |
WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
Highlight: | sumitomo electric connectors,sealed sensor connector |
6189-0552 6918-1260 2 Way PBT Female HX Sealed Sensor Connector For Honda
Description
2 Way PBT Female HX Sealed Sensor Connector For Honda
It is H onda HD K Series RV LK connector for Accord Fit Civic Odyssey CRV Gearbox Transmission
It is middle rib/slot , please check it carefully before you buy it
Width :21.4 mm
Height: 21.6 mm
Length :28.3 mm
1 Row , 2 Way
Series : HX 090 2.3 mm sealed
Lock :6918-1260
Width :13 mm
Height: 9.4 mm
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
Specification
Item name |
6189-0552 6918-1260 2 Way PBT Female HX Sealed Sensor Connector For Honda |
P/N | 6189-0552 6918-1260 |
Wire Size |
18-22AWG |
Operating Temperature range |
-40℃~125℃ |
Insulation resistance |
100M Min. |
MOQ |
100 units/lot |
Key words |
2 pin Sumitomo Connector |
Design Tooling |
Sending us samples or drawing to design it |
Delivery Time |
About 5-8 work days |
Sealed/Unsealed |
sealed |
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
The number of hole | 2 way |
Color | Black |
Warranty | 1 year |
Application | Automoive Motorcycles |

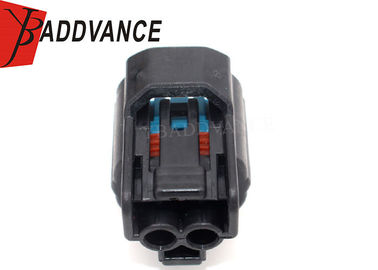

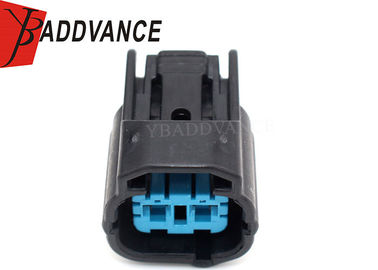

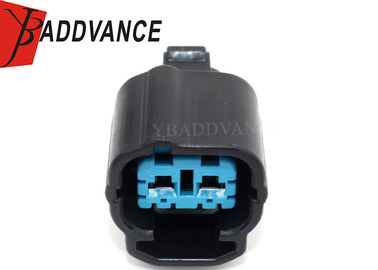

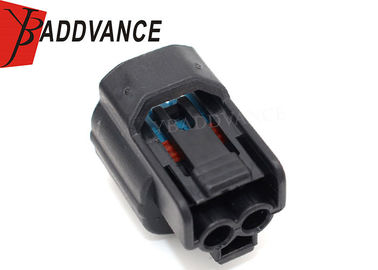

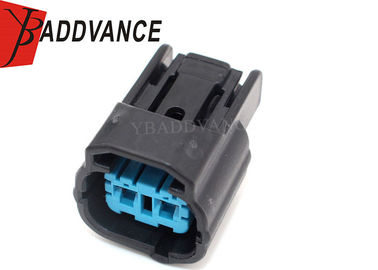

Product Picture Details
