Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

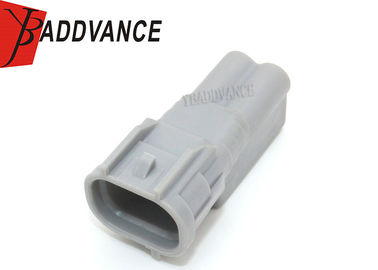

Large Image :  Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6188-0266

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: USD 0.5-0.7 Per set with crimp terminals
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Sumitomo Number: 6188-0266 Series: TS Sealed Series
Material: PBT Color: Gray
Sealed/Unsealed: Sealed Male/Female: Male
Number Of Way: 2 Way Mating Parts: 6189-0249
Leak Current: 100μA Max. Insulation Resistance: 100MΩ Min.
High Light:

sumitomo mt connector

,

sealed sensor connector

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota







Product Description



2 Pin Sumitomo 6188-0266 Male Connector Fits wires from .5mm - 1.25mm (16 - 22 AWG).

It's come with Tough plastic housing with inner seal, plus wire seals and crimp terminals.



Terminals:

2.3mm 8100-0457
2.3mm 8100-1340
2.3mm 8100-0458
2.3mm 8100-1007



Wire seals:

2.3mm 7165-0842
2.3mm 7165-0349
2.3mm 7165-0395
2.3mm 7165-0351







Specification



Keywords Sumitomo 2 pin male connector
Original Number 6188-0266
Type Waterproof connector
Male/Female male
Material PBT
Series TS 090 Series 2.3mm(090)
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.

Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
50kPa Min.
after durability tests
30kP

Quality Control  All goods will be 100% inspected before shipment
Color Gray Color
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





More details about pictures

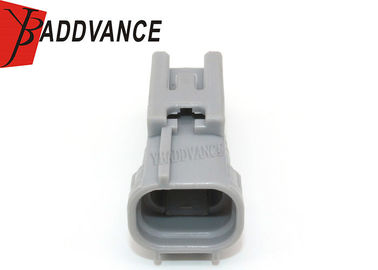

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota 0

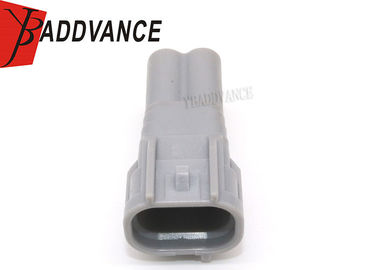

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota 1

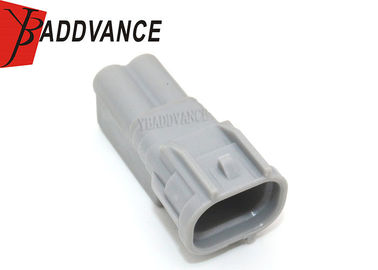

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota 2
