Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | 6189-0445 |
|---|---|---|---|
| Martial: | PBT/PA66 | Feature: | Waterproof |
| Way: | 1 Hole | HS Code: | 8536909000 |
| Type: | Sumitomo Connector | Gender: | Female |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo mt connector,sealed sensor connector |
||
1 Way Female Sumitomo 2JZ H2O Water Temp Sensor Connector 6189-0445
Description
1 Way Sumitomo 2JZ H2O Water Temp Sensor Connector fit for T oyota
Height:20.18mm
Width:13.9mm
Length:28.9 mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
1 Way Female Sumitomo 2JZ H2O Water Temp Sensor Connector 6189-0445 |
| P/N | 6189-0445 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
1 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 1 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

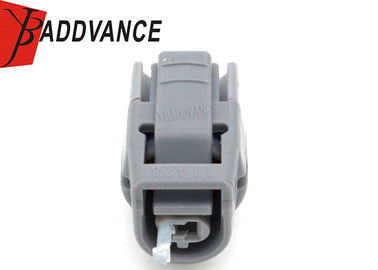

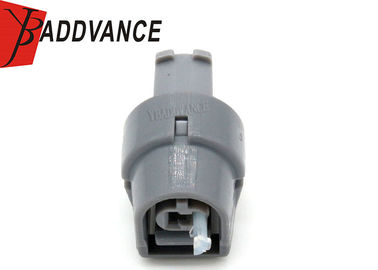

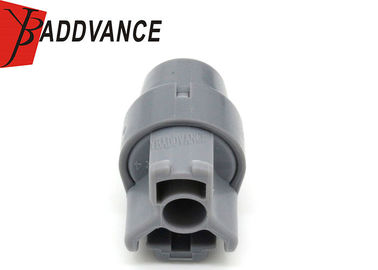

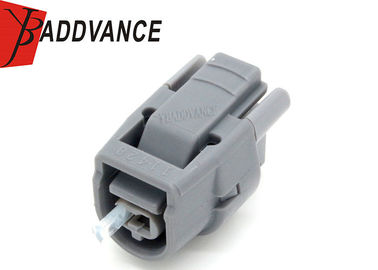

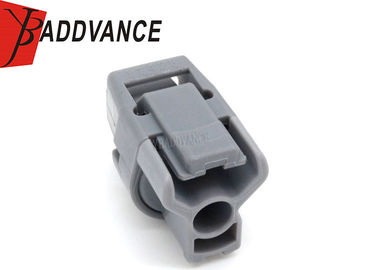

Product Picture Details
