Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 6189-0728 | HS Code: | 8536909000 |
| Type: | Sealed Connector | WARRANTY: | 1 Year |
| Way: | 3 Hole | Feature: | Waterproof |
| Gender: | Female | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | throttle position sensor connector,ignition coil plug connector |
||
3 Way Sumitomo HX 090 Series Ignition Coil Connectors 6189-0728
Description
3 Way Sumitomo HX 090 Series Ignition Coil Connectors
Height : 16.7 mm
Width : 29.7 mm
Length: 28.3 mm
Including :1 housing +3 Pin +3 Seals
Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Way Sumitomo HX 090 Series Ignition Coil Connectors 6189-0728 |
| P/N | 6189-0728 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

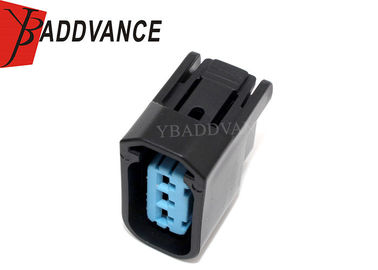

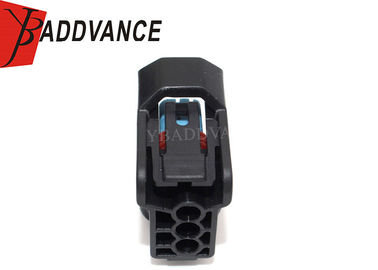

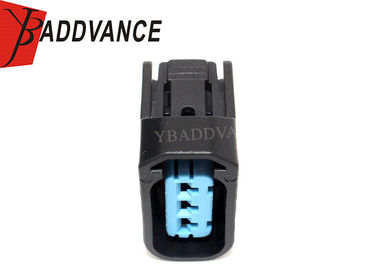

Product Picture Details
