4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5

4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5
4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5

Large Image :  4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 144998-5

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black P/N: 144998-5
Martial: PBT/PA66 Gender: Male
Type: AMP Connector HS Code: 8536909000
Way: 4 Hole Feature: Waterproof
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

te connectivity automotive connectors

,

amp junior power timer connector

4 Way AMP Tyco Sealed PBT GF20 Electrical JPT connector 144998-5







Description



4 Way AMP Tyco Sealed PBT GF20 Electrical JPT connector

Material:
Housing: PBT GF20
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubbe

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

These connectors come with the terminals and seals

We also can make the wire if you need it .

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

4 Way AMP Tyco Sealed PBT GF20 Electrical JPT connector 144998-5
P/N 144998-5

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

4 pin AMP Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  4 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles

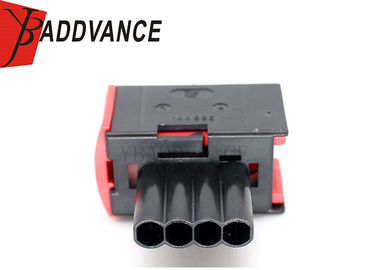

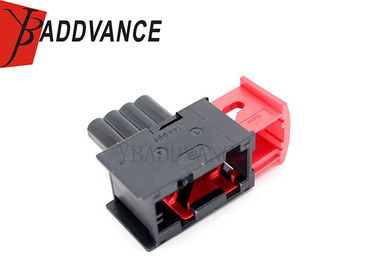

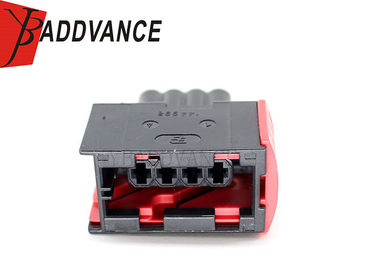

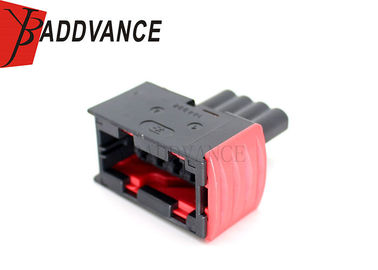

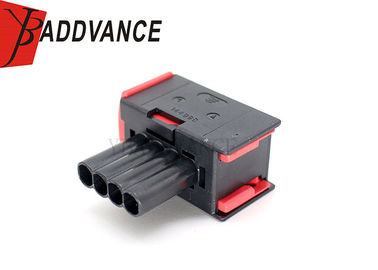

Product Picture Details



4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 0

4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 1

4 Way Amp Electrical Connectors , Tyco JPT Connector PBT GF20 144998-5 2
