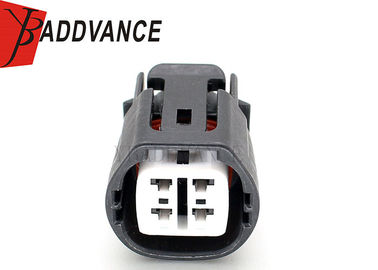

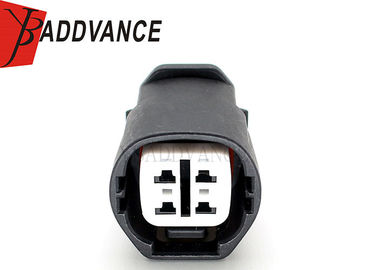

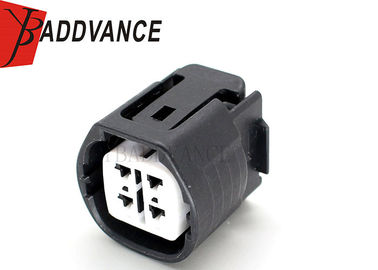

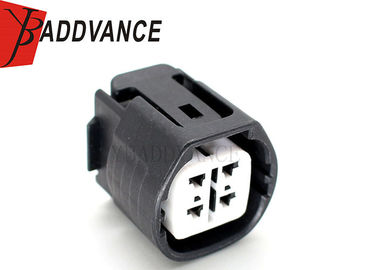

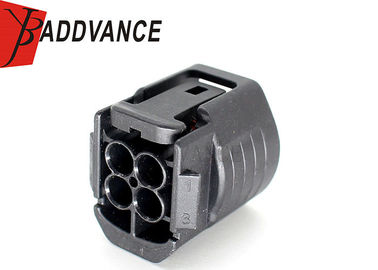

90980-11964 Sumitomo Sealed Connectors 4 Way Toyota Alternator Plug Replacement 6189-0694

Large Image : 90980-11964 Sumitomo Sealed Connectors 4 Way Toyota Alternator Plug Replacement 6189-0694

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	6189-0694 90980-11964

Payment & Shipping Terms:

Minimum Order Quantity:	100 UNITS
Price:	USD 0.5-0.7 Per set with crimp terminals
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month

Contact Now

Detailed Product Description

Toyota Part Number:	90980-11964	Sumitomo Part Number:	6189-0694
Material:	PBT	Color:	Black
Sealed/Unsealed:	Sealed	Male/Female:	F
Way:	4 Way	Application:	Fit For Toyota Japanese Cars
Leak Current:	10μA Max.	Insulation Resistance:	100MΩ Min.
Highlight:	sumitomo mt connector , sumitomo electric connectors

90980-11964 4 Pin 4 Way Toyota Alternator Plug Replacement Sumitomo 6189-0694

Product Description

YBADDVANCE Connector will replacement many brands connection included Amphenol, Aptiv, Bosch, , Denso, Deutsch, Furukawa, FCi, Hirschmann, Kostal, Molex, Sumitomo, TE Connectivity, Yazaki and so on...

This item YBADDVANCE 4 way female alternator connector will replace sumitomo brand and the following is more details about this product.

1 X Connector housing

1 X locking clip

4 X Wire seals

4 X Crimp terminals

Specification

Keywords	4 way alternator plug
Original Number	6189-0694 90980-11964
Type	Sumitomo automotive connector
Male/Female	female
Material	PBT
Number of Rows	2
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max
Leak current	10μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Black
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
