Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

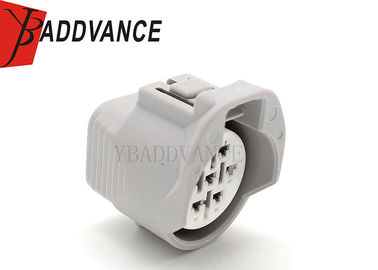

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931

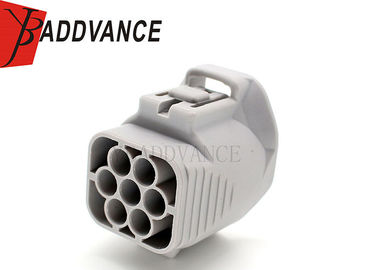

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931

Large Image :  Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 90980-10931

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Gray Sumitomo P/N: 6189-0127
Martial: PBT Feature: Waterproof Connector
Type: Sumitomo Connector HS Code: 8536909000
Way: 7 Way Application: Automotive Car
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo mt connector

,

sumitomo electric connectors

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931







Description



7 Pin female connector will be provided by YBADDVANCE supplier and the parts come with housing,wire seals together.

The following is product details:

1 x Connector housing

1 x Locking Clip

1 x Waterproof seals

7 x Crimp Terminals

7 x Wire seals





Specification



Item name

Sumitomo female 7 Pin connector

P/N 90980-10931

Wire Size

18-22AWG

Operating Temperature range

-40~120

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

7 Pin toyota connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
Total number of hole  7 way
Color  Gray
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

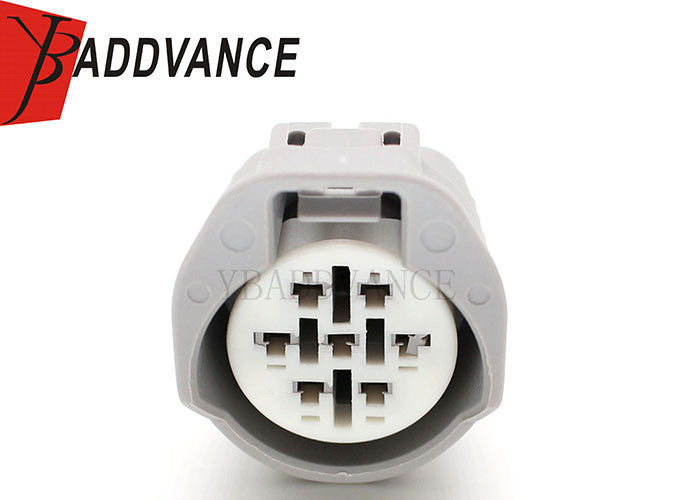

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 0

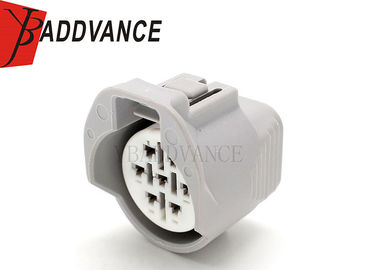

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 1

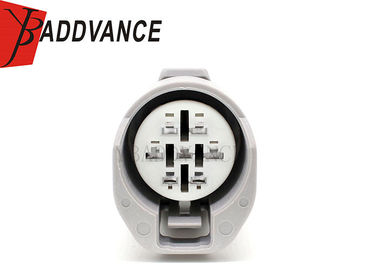

Sumitomo 7 Way Connector Female 6189-0127 For Toyota 90980-10931 2
