6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

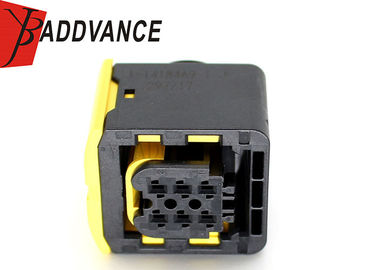

Large Image :  6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 1-1418469-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black P/N: 1-1418469-1
Martial: PBT/PA66 Feature: Waterproof
Type: AMP Connector HS Code: 8536909000
Way: 6 Hole Width: 43 Mm
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

te connectivity automotive connectors

,

amp junior power timer connector

6 Way/Pin AMP HDSCS Series TE Connectivity Waterproof Connector 1-1418469-1







Description



These HDSCS receptacle connector housings feature integrated secondary locks which conform contact alignment and retention producing an audible click when in the fully locked position. A slide lock assists with the mating and unmating process and provides a secure mating connection. The housings feature polarization and keying to prevent mismating and have a low mating force.

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.









Specification



Item name

6 Way/Pin AMP HDSCS Series TE Connectivity Waterproof Connector 1-1418469-1
P/N 1-1418469-1

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

6 pin AMP Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  6 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles

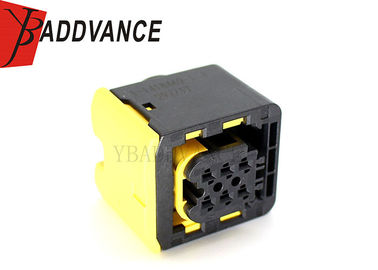

Product Picture Details

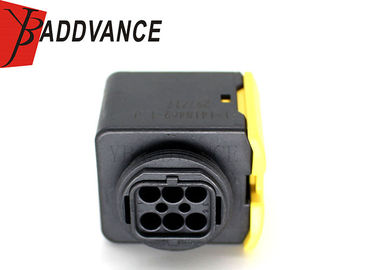

6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1 0

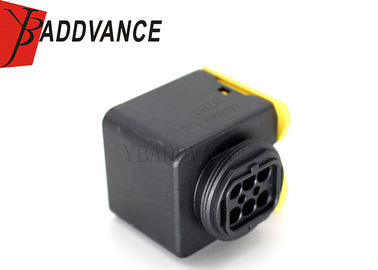

6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1 1

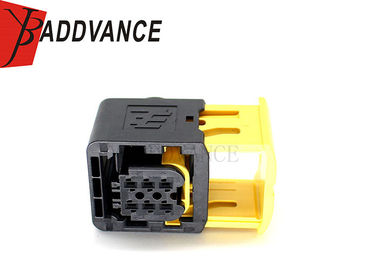

6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1 2
