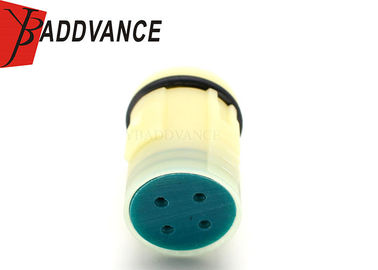

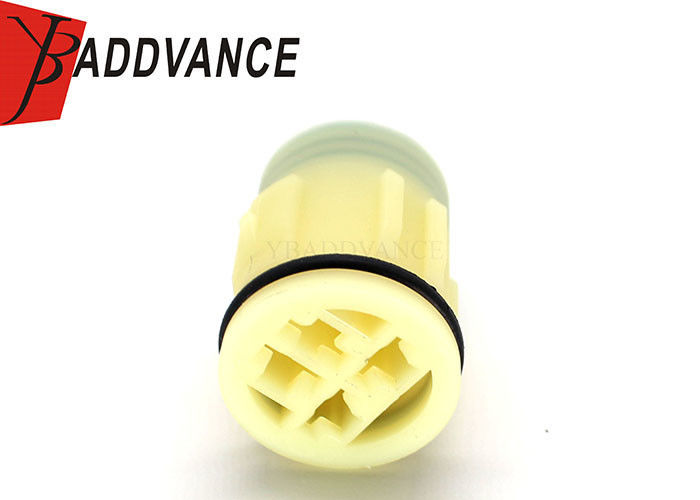

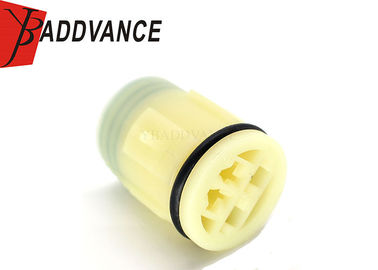

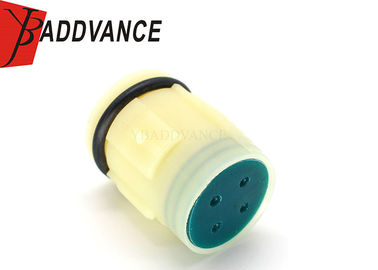

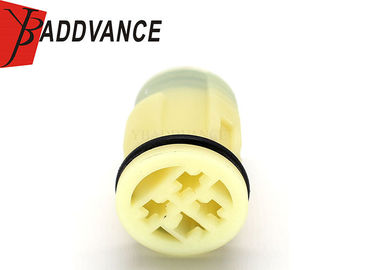

250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal

250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal
250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal

Large Image :  250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DS250-4

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: USD 0.5-0.7 Per set with crimp terminals
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Series: 250 Sealed Connectors Part No.: DS250-4
Material: Nylon Color: White
Sealed/Unsealed: Sealed Male/Female: F
Way: 4 Way Including: With Oring And Terminal
Leak Current: 10μA Max. Insulation Resistance: 100MΩ Min.
High Light:

sumitomo electric connectors

,

sealed sensor connector

250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal


Product Description

4 Pin female 250 Sealed Connector
This was also used on some models for a stator Connector.
These come with seal and housing lance terminals for 14-18 gauge wire
It's Brass terminals



Specification


KeywordsSumitomo 4 Pin Connector
Part NumberDS250-4
Type High quality sumitomo replacement brand
Male/Femalefemale
MaterialNylon
Number of Position4 way
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max

Leak current10μA Max.
Insulation resistance100MΩ Min.
seal

Initial
98kPa Min.
after durability tests
98kPa Min.

Quality Control All goods will be 100% inspected before shipment
ColorWhite
Operating Temperature range-40℃~120℃
SampleWe can provide you samples before place an order
IncludingConnector housing,terminals,rubber seals
Main productsElectrical Connectors,wire harnesses and fuel injector repair kits..
Delivery TimeAbout 3-7 days
Replacement BrandTE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design AbilityPlease send us drawing or samples to design OEM&ODM
MarketGermany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight1kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL



More details about pictures




250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 0
250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 1
250 Sealed Sumitomo 4 Pin Connector With Brass Female Terminal 2
