Product Details:
Payment & Shipping Terms:
|
Toyota Part No.: | 90980-11885 | Male/female: | Male And Female |
---|---|---|---|
Keywords: | Male Female Automotive Connectors | Number Of Positions: | 4 |
Sealed/Unsealed: | Sealed | Application: | For Japanese Toyota Ignition Coil |
Contact Type: | Crimp | Materials: | PBT GF30 |
Highlight: | throttle position sensor connector,ignition coil plug connector |

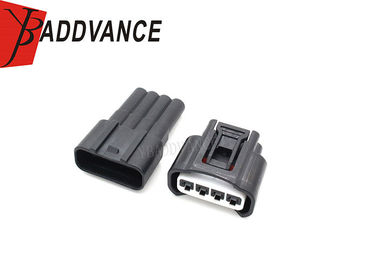

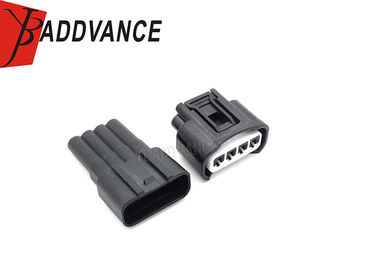

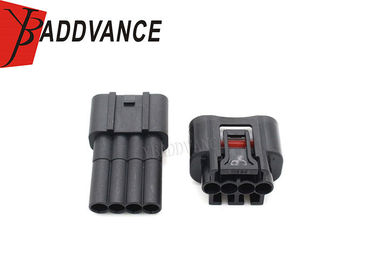

4 Pin Ignition Coil Male Female Automotive Connectors For Toyota 90980-11885
Product Description
4 Way 2.3(090) male female auto connectors fit for toyota Ignition Coil
This type come with housing,seals and terminals.
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 3milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C
Specification
Keywords | 4 Way male female Automotive Connector |
Toyota Number | 90980-11885 |
Series | 2.3II(090II) Connectors |
Male/Female | male and female |
Connector Type | Plug Housing |
Connector Style | Housing for male female terminals |
Plug/Socket | Contact |
Type | For male female Sockets |
Contact Type | Crimp |
Number of Positions | 4 |
Connection Type | Wire to Wire Wire to Board Wire to Device |
Quality Control | All goods will be 100% inspected before shipment |
Color | Black |
Operating Temperature range | -40 to +120°C |
Sample | We can provide you samples before place an order |
Including | Connector housing,terminals,rubber seals |
Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
Delivery Time | About 3-7 days |
Replacement Brand | Replacement for Original Brand Cars |
Design Ability | Please send us drawing or samples to design OEM&ODM |
Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Gross weight | 1kgs/100 pieces |
Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
