Black AMP Econoseal Connectors , 12 Pin Automotive Connector 174661-2

small.img.alt small.img.alt small.img.alt small.img.alt

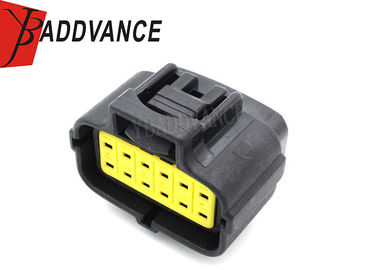

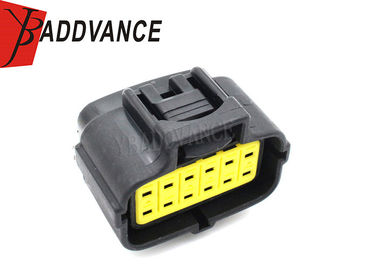

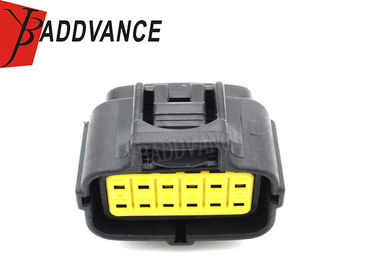

Large Image :  Black AMP Econoseal Connectors , 12 Pin Automotive Connector 174661-2

Product Details:

Place of Origin: China(mainland)
Certification: ISO9001
Model Number: 174661-2

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into Ziplock bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
TE Part #: 174661-2 Connector Type: Plug , Socket
Housing Material: PBT Number Of Positions: 12 Pin
Sealed/Unsealed: Sealed Remark: AMP 070 Econoseal-J Mark II Series Sealed Connectors
Number Of Rows: 2 Wire Gauge (Max): 24 AWG
Wire Gauge (Min): 16 AWG Row Spacing: 5.6mm
High Light:

te connectivity automotive connectors


amp automotive connectors

AMP 070 Econoseal 12 Pin Sealed Connector 174661-2





The 174661-2 is a 12-way 2-row Econoseal Housing with PBT body , 4.8mm pitch spacing
Conn Housing PL 12 POS 4.8mm Crimp ST Cable Mount Automotive Tray
HOUSING, ECONOSEAL, 12WAY; Connector Type:Rectangular Power; Series:070; Connector Type:Rectangular Power; Gender:Pin; No. of Ways:12
Conn Housing PL 12 POS 4.8mm Crimp ST
12 way Econoseal J Mk II plug housing


TE Connectivity Econoseal J Mark II (+) Series Connector Housings


A range of Econoseal J Mark II (+) series waterproof receptacle and plug style automotive wire connector housings. The wire seals for these automotive connector housings can be loaded at the same time as the contacts are crimped and cavity plugs can be used to plug up unused cavities. The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage. These Econoseal J Mark II (+) series automotive housings also have a plate inserted to detect the half-mating of contacts and a double lock feature.





Keywords 12 pin Connectors
Original Number 174661-2
Type High quality Original brand
Male/Female female
Material PBT
Quality Control  All goods will be 100% inspected before shipment
Color Black
Depth 27.6 mm
Height 33.2 mm
Insulation Diameter -2.6 mm
Length 27.6 mm
Pitch 4.8 mm
Max Operating Temperature -105 °C
Min Operating Temperature -30 °C
Operating Temperature range -30℃~105℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 2.5kgs/100 pieces

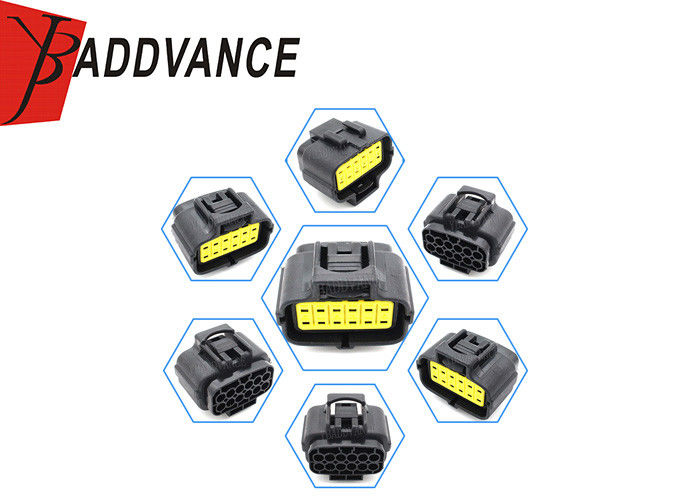

More details about pictures
