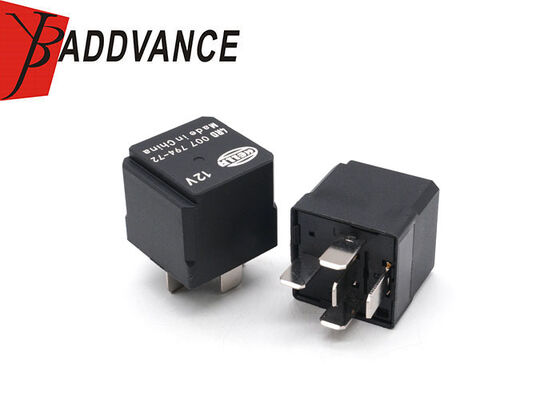

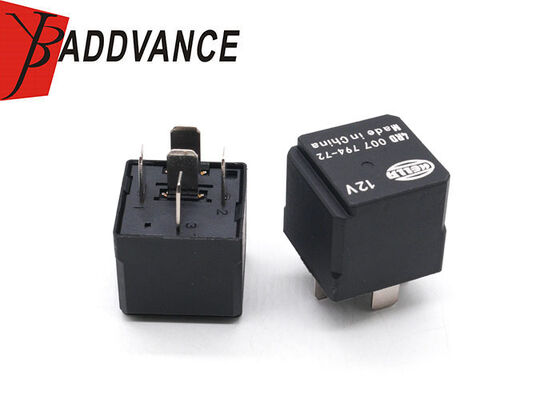

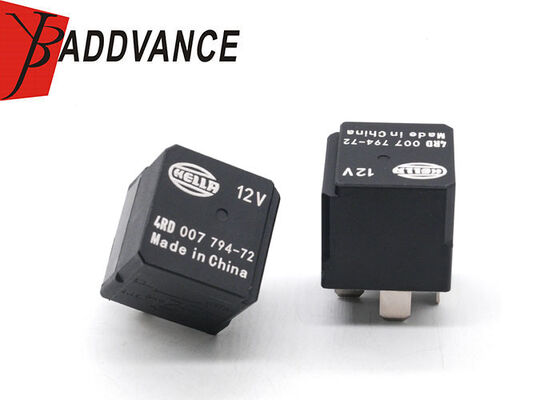

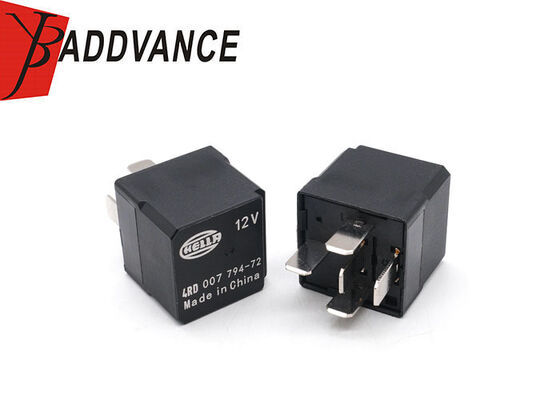

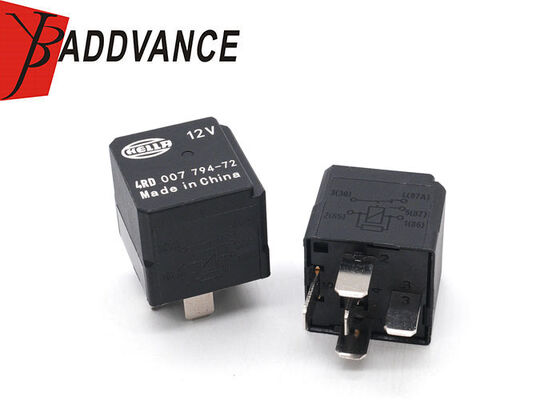

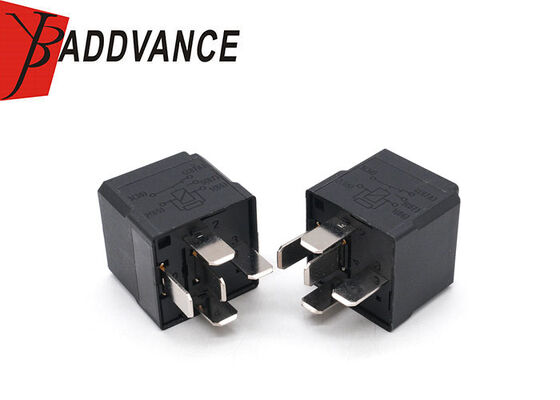

13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Large Image : 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	CE FCC
Model Number:	13500119 4RD 007 794-72

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	Negotiation
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth

Contact Now

Detailed Product Description

Reference:	40A 12V	Feature:	Waterproof
Number Of Position:	5 Pin	Keywords:	Auto Relay
HS Code:	8536909000	Color:	Black
Application:	For Automotive	WARRANTY:	1 Year
PLACE OF ORIGIN:	Shaanxi,China

13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Description

The 4RD 007 794-72 12V is a standard 5-pin, 40-amp automotive relay manufactured by Hella (often cross-referenced with GM part number 13500119). It is widely used for switching high-current vehicle accessories like lights, horns, fuel pumps, and cooling fans.

Specifications & Pinout

Voltage: 12V DC
Amperage: 40A / 30A (Normally Open / Normally Closed)
Pins: 5-Pin standard layout (SPDT - Single Pole Double Throw)
Pin Configuration:
- Pin 30: Common Feed (Power In)
- Pin 85: Relay Coil (Ground)
- Pin 86: Relay Coil (Trigger/Switch)
- Pin 87: Normally Open (NO) Contact
- Pin 87a: Normally Closed (NC) Contact
