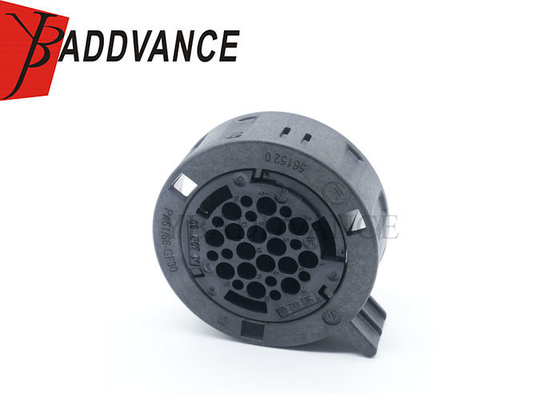

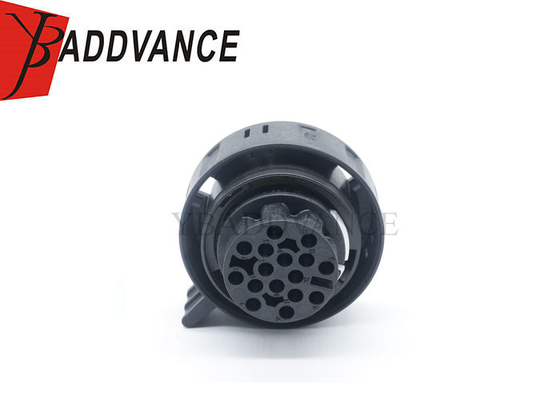

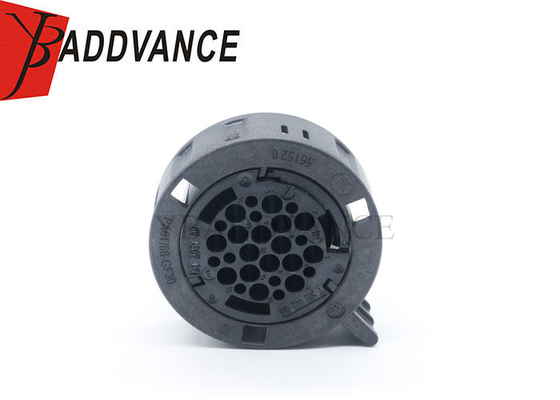

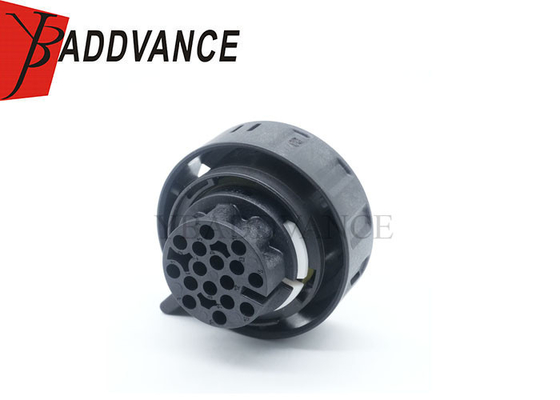

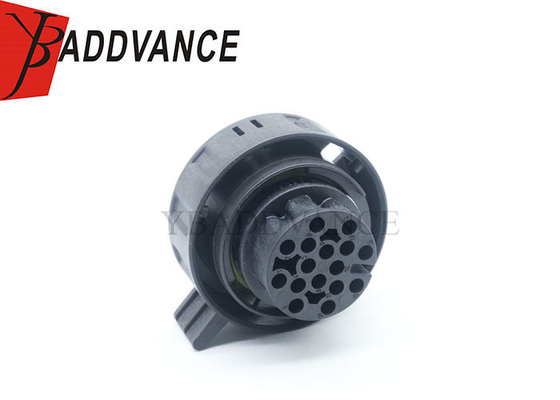

09430701 Female 16 Pin Automotive Waterproof Transmission Gearbox Body Controller Connector

Large Image : 09430701 Female 16 Pin Automotive Waterproof Transmission Gearbox Body Controller Connector

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YB Connector
Certification:	CE + FCC
Model Number:	09430701

Payment & Shipping Terms:

Minimum Order Quantity:	100 UNITS
Price:	Negotiation
Packaging Details:	Inside packing：100 units/lot put into Ziplock bags. Outside packing：carton 5 layers.
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month

Contact Now

Detailed Product Description

Part Number:	09430701	Gender:	Female
Warranty:	1 Year	Pin:	16 Pin
Color:	Black	Material:	PBT
Type:	Connector	Application:	For Cars
MOQ:	100pcs	Delivery Time:	5-7days

09430701 Female 16 Pin Automotive Waterproof Transmission Gearbox Body Controller Connector

Description of Product

Part Number : 09430701

Connector System : Wire-to-Wire

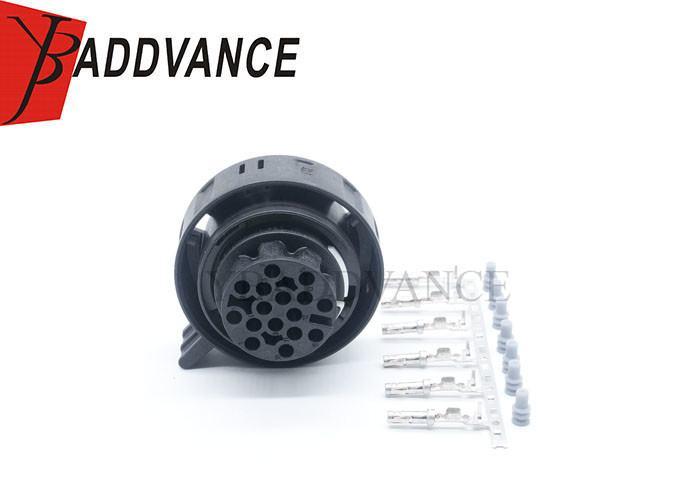

The following is showed this kinds of connector will come with which parts together.

1 x connector housing

16 x terminals

16 x seal

Specification

Sealed/Unsealed	sealed
Male/Female	female
Material	PA66 PBT
Way	16 way
Quality Control	All goods will be 100% inspected before shipment
Operating Temperature (Max)	125 °C [ 257 °F ]
Accepts Wire Insulation Diameter Range	2.23 – 3.68 mm [ .088 – .145 in ]
Operating Temperature range	-55 – 125 °C [ -67 – 257 °F ]
Including	Housing Socket,terminals,rubber seals
Lead Free	Lead Free
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

Hot product

CONNECTOR	GENDER	COLOR	PIN NUMBER
6189-0653	Female connector	Black	2 Pin
0495458528	Male connector	Black	2 Pin
6189-0777	Female connector	Blue	2 Pin
0-2236114-1B	Female connector	Black	2 Pin
6188-0098	Male connector	Grey	2 Pin
