Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 6189-7757 | Pin: | 4 Pin |
|---|---|---|---|
| STYLE: | Automotive Electrical Connectors | Gender: | Female |
| HS CODE: | 8536909000 | Color: | Grey |
| Sealed/Unsealed: | Sealed | MOQ: | 100 Pcs |
| Gross Weight: | 2kgs/100pcs | Application: | For Nissan 2011-2017 |

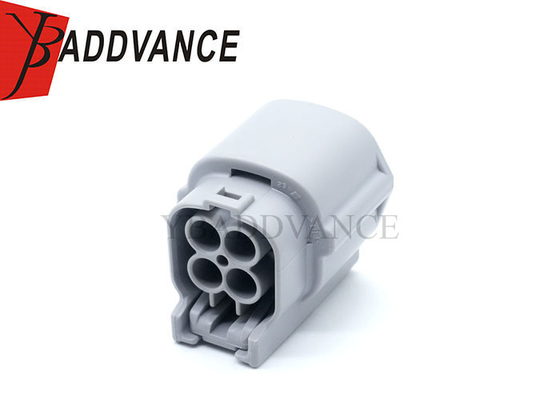

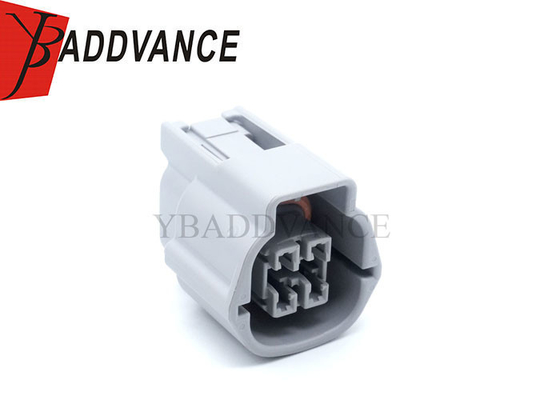

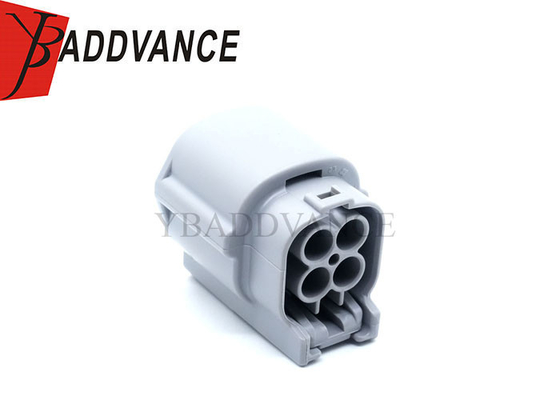

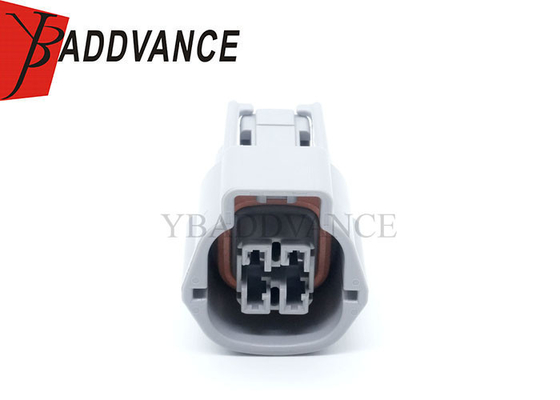

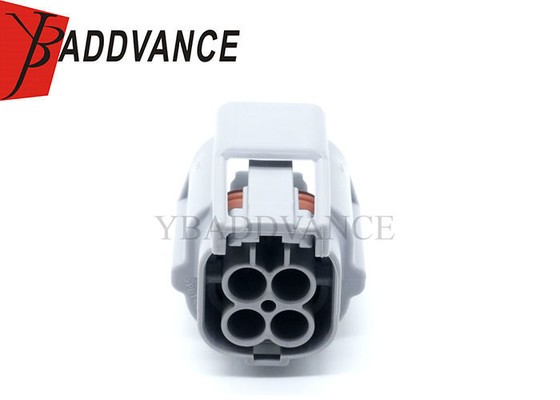

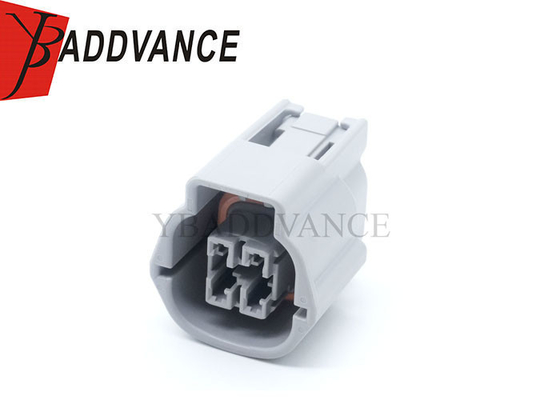

6189-7757 Sumitomo 2.3mm(090) 4 Pin Waterproof Female Oxygen Sensor Connector For Nissan 2011-2017
Description
6189-7757 Sumitomo 2.3mm(090) 4 Pin Waterproof Female Oxygen Sensor Connector For Nissan 2011-2017
This part come with the following types:
Original number:6189-7757
Female Connector Housing
4 x Female Terminal
4 x Silicon Rubber Cable Seal
Pin n/p: 4 pin
Gender:Female
Material :Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy, Brass, Phosphor Bronze.
Color:Grey
Specification
| Product Name | 6189-7757 Sumitomo 2.3mm(090) 4 Pin Waterproof Female Oxygen Sensor Connector For Nissan 2011-2017 |
| Delivery Time | About 3-7 days |
| Way | 4 Way |
| Wire Size | 16-22AWG |
| P/N | 6189-7757 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Grey |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
