Product Details:
Payment & Shipping Terms:
|
| Part Number: | 4F0973731 | Gender: | Female |
|---|---|---|---|
| Warranty: | 1 Year | Pin: | 6 Pin |
| Color: | Black | Material: | PBT |
| Type: | Connector | Application: | For Volkswagen Audi |
| MOQ: | 100pcs | Delivery Time: | 5-7days |

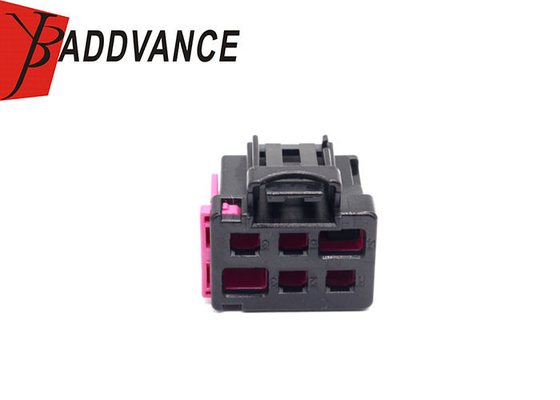

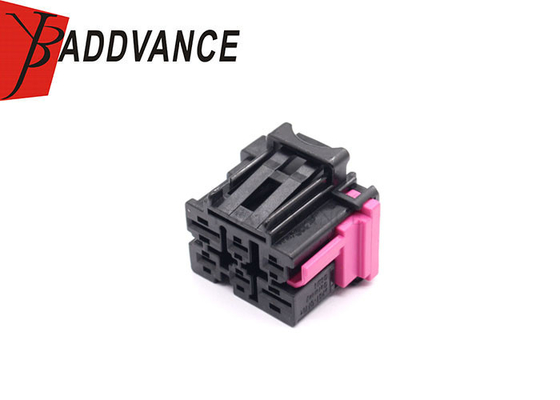

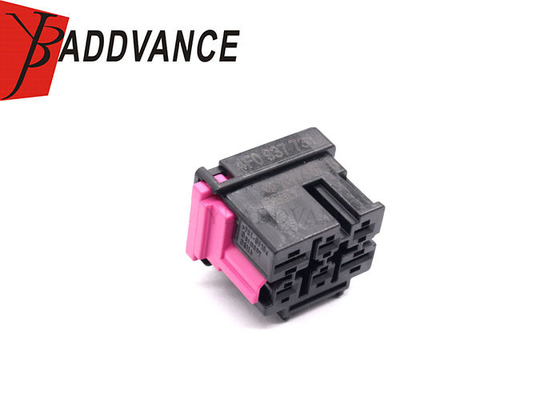

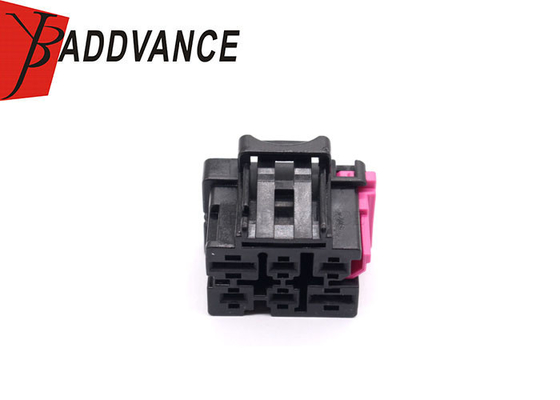

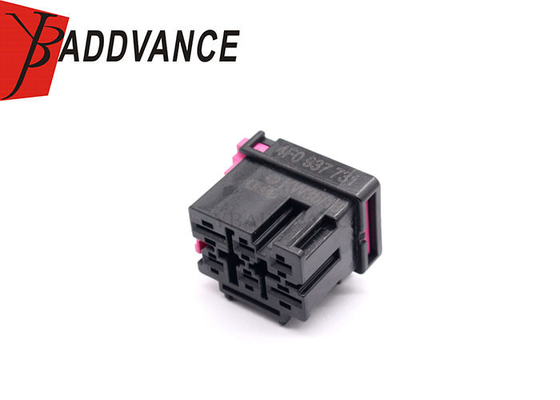

4F0973731 FEP 6 Pin Female Flat Contact Connector Kits For Volkswagen Audi
Description of Product
The following is showed this kinds of connector will come with which parts together.
1 x female connector housing
6 x terminals
Brand Name: YBADDVANCE
Type: ADAPTER
Package: Normal packaging
| Sealed/Unsealed |
Unsealed |
| Male/Female | Female |
| Material | PBT-GF30 |
| Way | 6 way |
|
Width
|
20.83 mm [ .82 in ]
|
| Height | 24.16 mm [ .951 in ] |
| Length |
45.92 mm [ 1.808 in ]
|
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature (Max) | 125 °C [ 257 °F ] |
| Accepts Wire Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Operating Temperature range | -55 – 125 °C [ -67 – 257 °F ] |
| Including | Housing Socket,terminals,rubber seals |
| Lead Free | Lead Free |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
