Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Connection Type: | Wire To Wire |
|---|---|---|---|
| P/N: | 12-1-127 | Male/female: | Male |
| Feature: | Waterproof | HS Code: | 8536909000 |
| Number Of Poles: | 12 | Application: | Automotive Car |

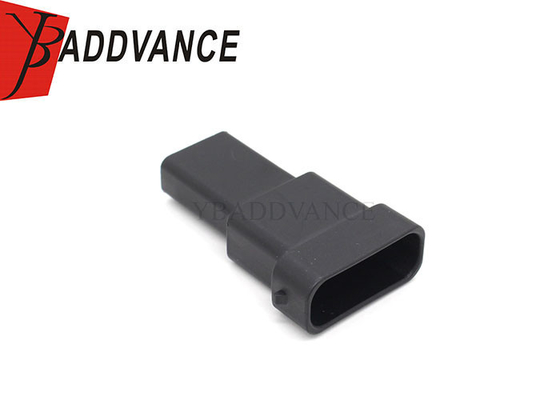

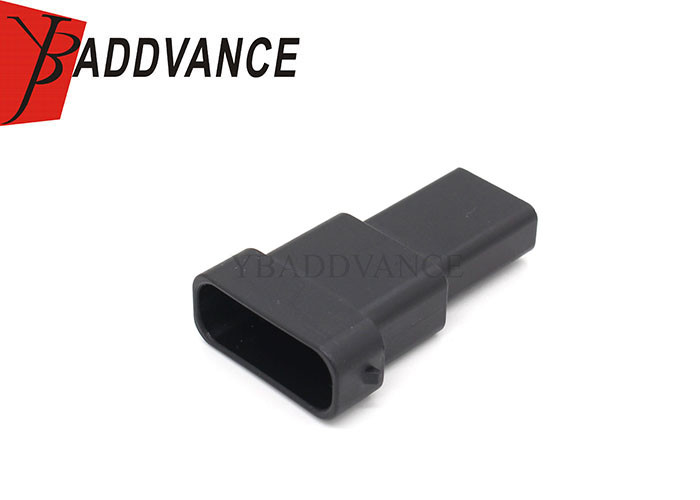

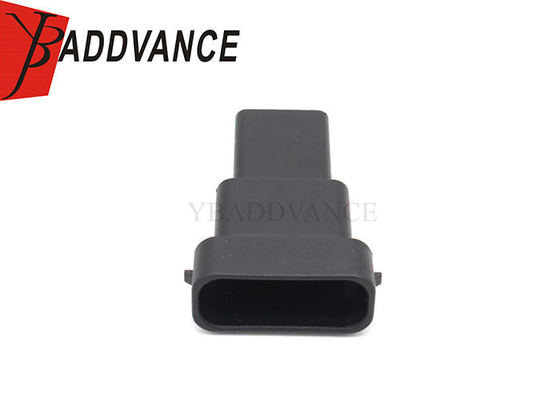

12 Pin Black Waterproof Automotive Electrical Connectors Male Housing
Description
1 X connector housing
12 X terminals
1 X inner seals
Specification
|
Item name |
12 Pin male connector |
| P/N | 12-1-127 |
| Mating Part Numbers | 12-1-127 |
|
Wire Size |
16-22AWG |
|
Operating Temperature range |
-40~125 deg.C |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Tab Width mm(inches) |
2.8(110) |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| number of way | 12 Way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
Product Picture Details
