Product Details:
Payment & Shipping Terms:
|
| Part Number: | 1-827578-1 | Gender: | Female |
|---|---|---|---|
| Warranty: | 1 Year | Pin: | 3 Pin |
| Color: | Black | Material: | PBT |
| Type: | Connector | Application: | For Auto |
| MOQ: | 100pcs | Delivery Time: | 5-7days |
| High Light: | Junior Timer Connector 3 Way,TE Connectivity Junior Timer Connector,1-827578-1 Junior Timer Connector |
||

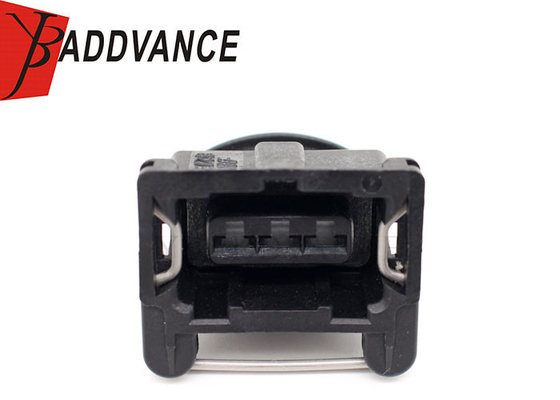

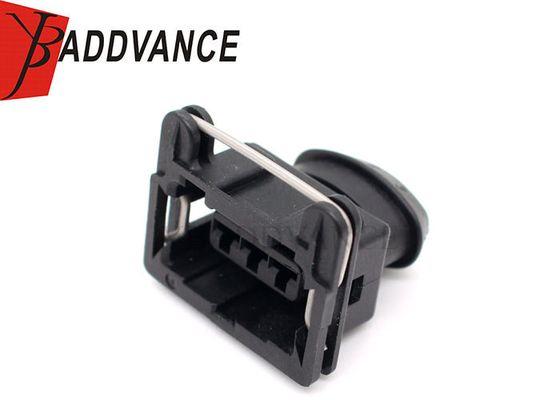

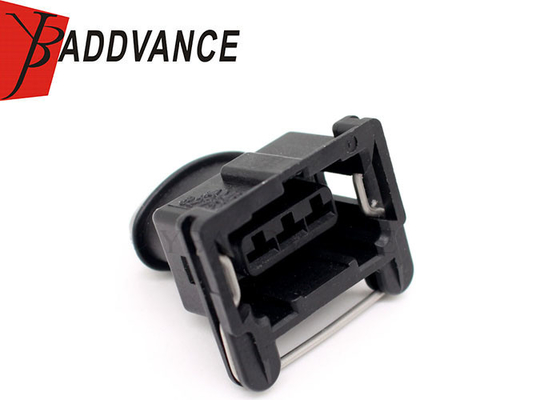

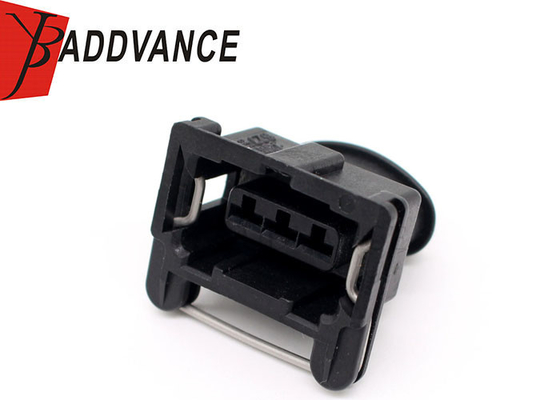

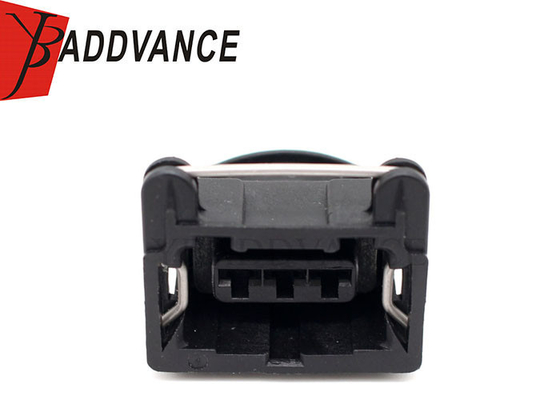

1-827578-1 3 Way Female TE Connectivity Junior Timer Connector For Auto
Description of Product
The following is showed this kinds of connector will come with which parts together.
1 x Female connector housing
3 x Terminals
3 x Seal
| Sealed/Unsealed |
Sealed |
| Male/Female | Female |
| Material | PA66 GF |
| Way | 3 way |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature (Max) | 125 °C [ 257 °F ] |
| Accepts Wire Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Operating Temperature range | -55 – 125 °C [ -67 – 257 °F ] |
| Including | Housing Socket,terminals,rubber seals |
| Lead Free | Lead Free |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
