Product Details:
Payment & Shipping Terms:
|
| Application: | For Truck | Part-No.: | 2-1-509 |
|---|---|---|---|
| Gender: | Female | Pin: | 2 Pin |
| Color: | Green | Gross Weight: | 1kgs/100pcs |
| Sealed/Unsealed: | Unsealed | HS CODE: | 8536909000 |
| STYLE: | Electrical Connectors | Warranty: | One Year |
| High Light: | PBT Electrical Automotive Terminal Connectors,Unsealed Automotive Terminal Connectors,2 Way Automotive Electrical Terminals |
||

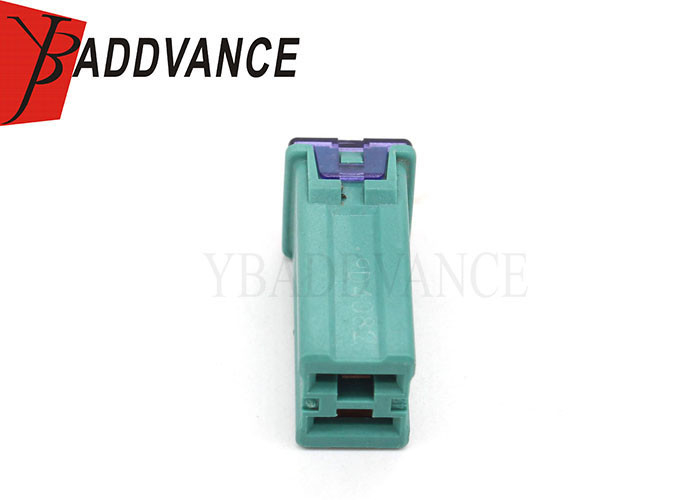

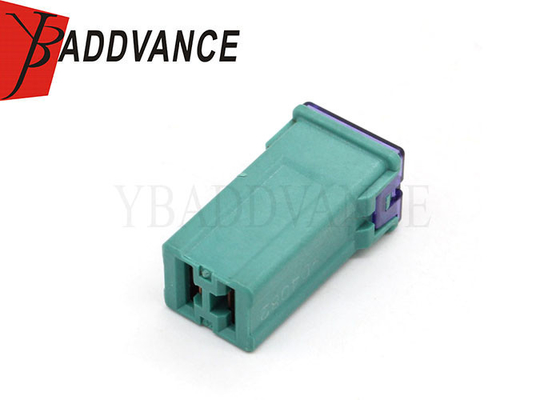

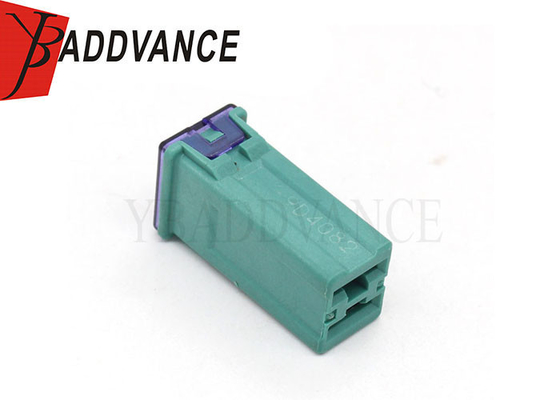

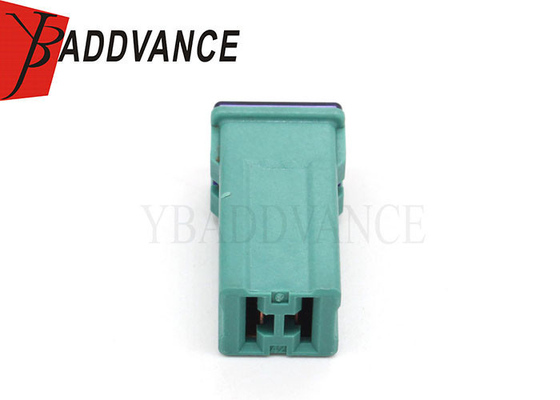

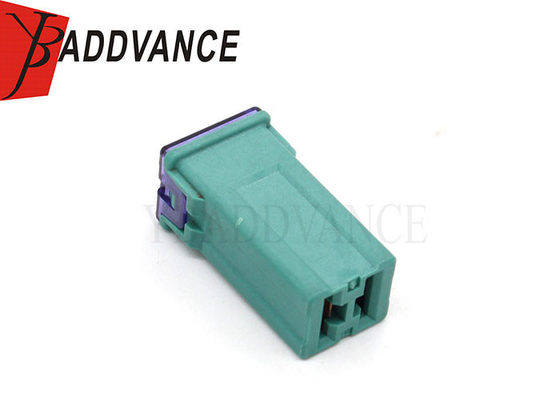

Electrical 2 Pin Female Green Unseald Automotive Terminal Connectors
Description
Electrical 2 Pin Female Green Unseald Automotive Terminal Connectors
This part come with the following types:
Included: terminals
Series:Unseald Series
| Product Name | Electrical 2 Pin Female Green Unseald Automotive Terminal Connectors |
| P/N | 2-1-509 |
| Sealed/Unsealed | Unsealed |
| Gender | Female |
| Way | 2 way |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Green |
| Wire Size | 16-22AWG |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Including | Connector housing,terminals, |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
