Product Details:
Payment & Shipping Terms:
|
| P/N: | 34985-1601 | Key Words: | Sealed Connector |
|---|---|---|---|
| Color: | Black | Materials: | PBT |
| Sealed/Unsealed: | Sealed | Operating Temperature Range: | -40~120 |
| Style: | Female Connector | MOQ: | 100 Units/lot |
| High Light: | 34985-1601 Hybrid Wire Connectors,16 Pin Hybrid Wire Connectors,34985-1601 16 pin wire connector |
||

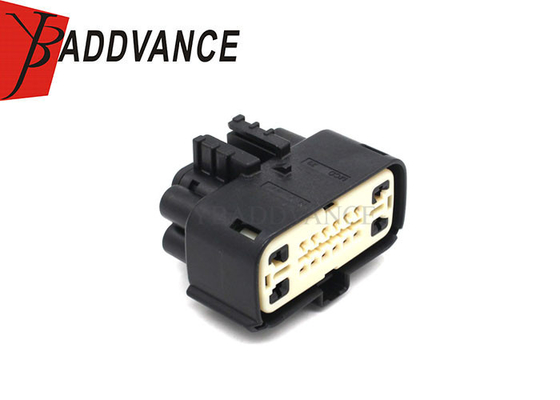

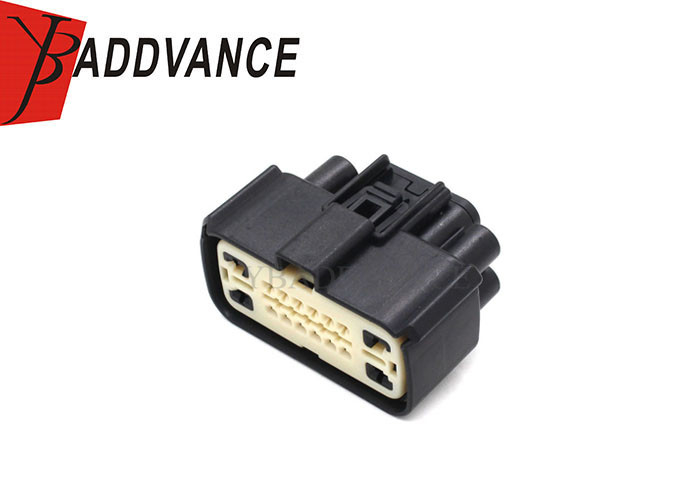

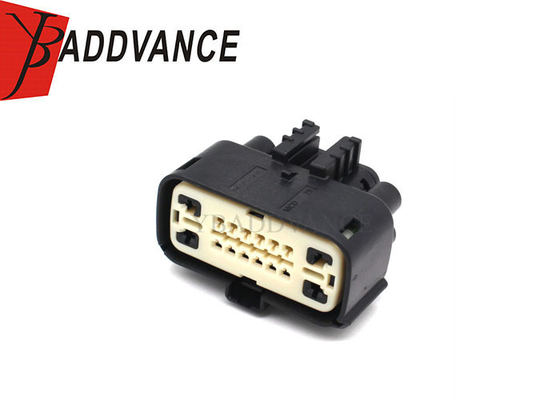

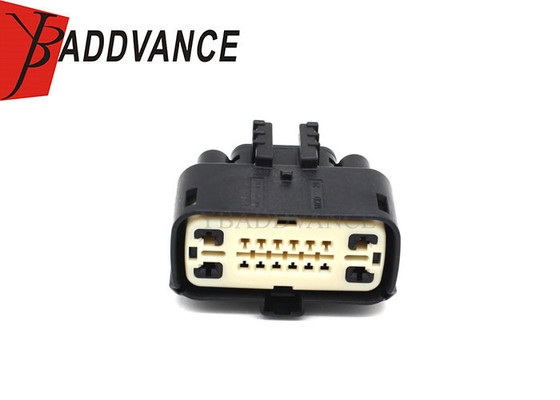

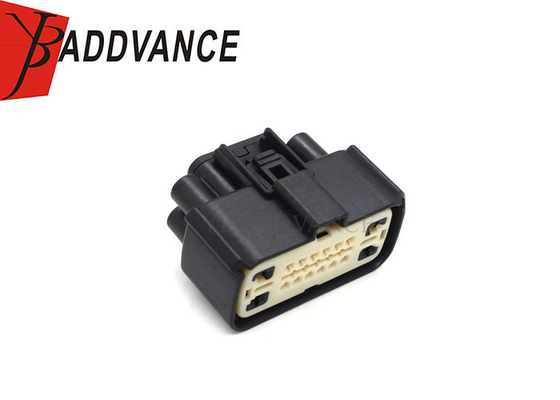

Equivalent to Molex 34985-1601 16 Pin Female Sealed Hybrid Wire Connectors
Description
16 Pin Female Sealed Hybrid Wire Connectors
This part come with the following types:
Place of Origin:Shaanxi, China
Brand Name:YBADDVANCE
Model Number:34985-1601
Type:ADAPTER
Application:Connector
Gender:Female
HS code:8536909000
Warranty:One Year
Pin:16 pin
Certificate:ISO9001
Package:Normal packaging
Shipping by:DHLUPSFedexEMSARAMEX
This connector kits included the following:
1 x connector housing
4 x big terminal
4 x big seal
12 x small terminals
1 x small seal
Specification
| Product Name | Equivalent to Molex 34985-1601 16 Pin Female Sealed Hybrid Wire Connectors |
| Delivery Time | About 7-8 days |
| Way | 16 Way |
| Wire Size | 16-22AWG |
| P/N | 34985-1601 |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Gender | Female |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Material | Plastic |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on.. |
