3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness

3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness
3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness

Large Image :  3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 3A0973334B

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Number Of Positions: 4 Pin Part-No.: 3A0973334B
Application: For VW Audi Sealed/Unsealed: Sealed
STYLE: FEP Connector Color: Green
Gender: Female Warranty: One Year
Gross Weight: 3kgs/100pcs HS CODE: 8536909000
High Light:

3A0973334B Oxygen Sensor Connector

,

A4 FEP Automotive Connectors

,

A6 FEP Automotive Connectors


3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness


Specification


Sealed/UnsealedSealed
ColorGreen
MaterialPBT,Plastic PA66,pbt gf30 and so on...
Quality Control All goods will be 100% inspected before shipment
Wire Size16-22AWG
P/N3A0973334B
Operating Temperature range-40~120
Contact resistanceInitial8m Max.after durability tests16m Ma
Leak currentInitial50kPa Min.after durability tests30kPa Min.
Insulation resistance100MΩ Min.
MOQ100 units/lot
Product Name4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness
IncludingConnector housing,terminals,rubber seals
Main productsElectrical Connectors,wire harnesses and fuel injector repair kits..
Way 4 Way
Delivery TimeAbout 3-7 days
Replacement BrandTE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
GenderFemale
Design AbilityPlease send us drawing or samples to design OEM&ODM
MarketGermany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL



Description

This part come with the following types:





1 x connector

4 x terminal

4 x wire seals
Brand: YBADDVANCE
Connector Style :FEP Connector
Number of Positions : 4 Positions
Sealed/Unsealed: Sealed
Part number:3A0973334B
Gender: F
Color:Green color
MOQ:100pcs

Application:For VW Audi


Hot products


TE ConnectorGenderPin number
0-2112986-1 AFemale Connector2 Pin
0-2112986-2 AFemale Connector2 Pin
0-2236114-1 BFemale Connector2 Pin
1-1924067-4Female Connector2 Pin
1-2296694-3Female connector2 Pin
1-1924067-6Female Connector2 Pin
2-2112986-5 AFemale Connector2 Pin
So on........




More details about pictures

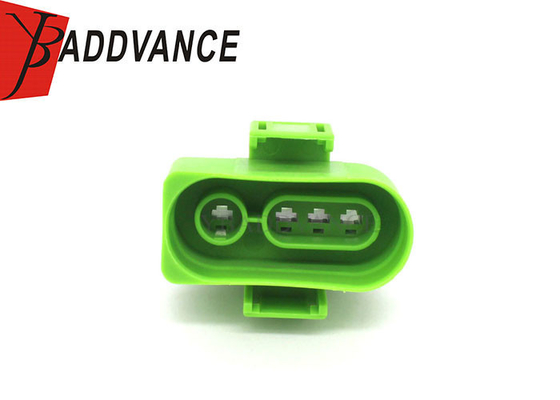

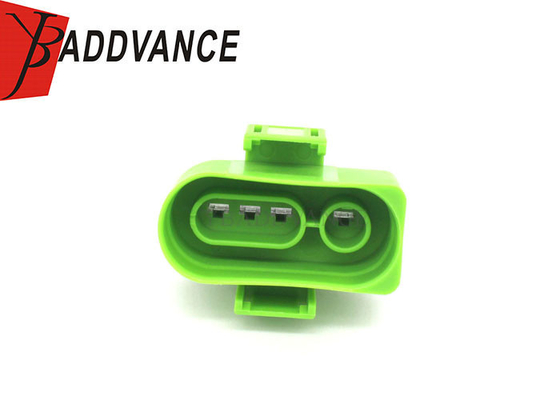

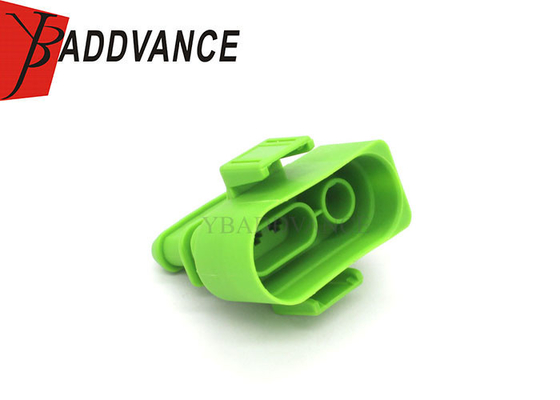

3A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness 03A0973334B 4 Pin Green Male O2 Oxygen Sensor Connector For Wire Harness 1
