2137336-1 / 2137343-1 36 Pin Tyco AMP Connectors Sealed Electrical Plastic Connector

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

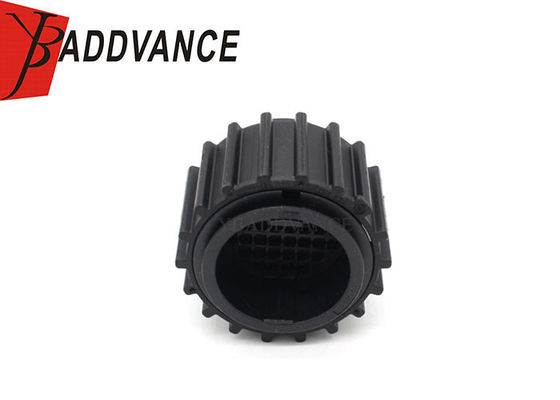

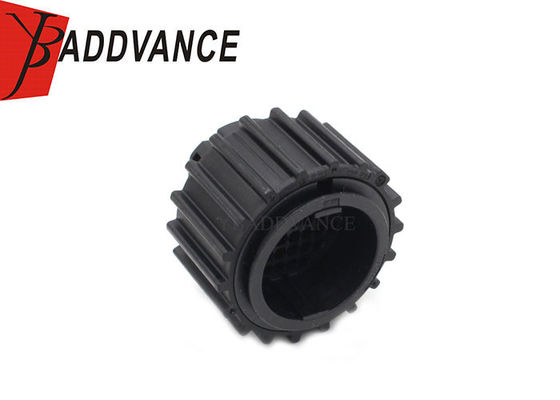

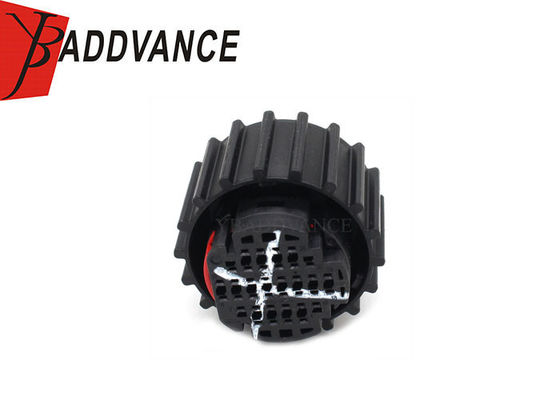

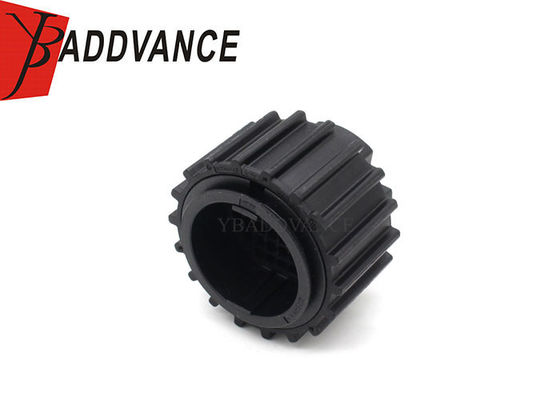

2137336-1 / 2137343-1 36 Pin Tyco AMP Connectors Sealed Electrical Plastic Connector

large.img.alt
large.img.alt

Large Image :  2137336-1 / 2137343-1 36 Pin Tyco AMP Connectors Sealed Electrical Plastic Connector

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 2137336-1 / 2137343-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: Negotiation
Packaging Details: Inside packing:100 units/lot put into Ziplock bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Part Number: 2137336-1 / 2137343-1 Gender: Female
Warranty: 1 Year Pin: 36Pin
Color: Black Material: PBT
Type: Connector Application: For Track
MOQ: 100pcs Delivery Time: 5-7days
High Light:

2137336-1 Tyco AMP Connectors

,

2137343-1 Tyco AMP Connectors

,

2137343-1 Electrical Plastic Connector



2137336-1 / 2137343-1 36 Pin Tyco AMP Sealed Electrical Plastic Connector







Description of  Product



Part Number : 2137336-1 / 2137343-1
Internal Description: 36 POS PLUG ASSEMBLY
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 1.2 mm [ .047 in ]
Connector System : Wire-to-Board, Wire-to-Device
Number of Positions : 36
Sealable : Yes


The following is showed this kinds of connector will come with which parts together.

1 x Male connector housing
36 x Terminals

36 x Seals








Specification



Sealed/Unsealed

Sealed

Male/Female Female
Material PA66 GF
Way 36 way
Width 
20.83 mm [ .82 in ]
Height  24.16 mm [ .951 in ]
Length
45.92 mm [ 1.808 in ]
Quality Control  All goods will be 100% inspected before shipment
Operating Temperature (Max)  125 °C [ 257 °F ]
Accepts Wire Insulation Diameter Range   2.23 – 3.68 mm [ .088 – .145 in ]
Operating Temperature range -55 – 125 °C [ -67 – 257 °F ]
Including Housing Socket,terminals,rubber seals
Lead Free Lead Free
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL







More details about pictures


2137336-1 / 2137343-1 36 Pin Tyco AMP Connectors Sealed Electrical Plastic Connector 02137336-1 / 2137343-1 36 Pin Tyco AMP Connectors Sealed Electrical Plastic Connector 1
