Product Details:
Payment & Shipping Terms:
|
| Pin: | 24 Pin | Part-No.: | 24-1-15 |
|---|---|---|---|
| Gender: | Female | Color: | Black |
| Gross Weight: | 1.5kgs/100pcs | Application: | For Wire Harness |
| Sealed/Unsealed: | Unsealed | STYLE: | Pa66 Gf20 Connector |
| High Light: | 24 Pin Auto Wire Harness Connectors,24-1-15 Auto Wire Harness Connectors,MG655814 Wire Harness Connectors |
||

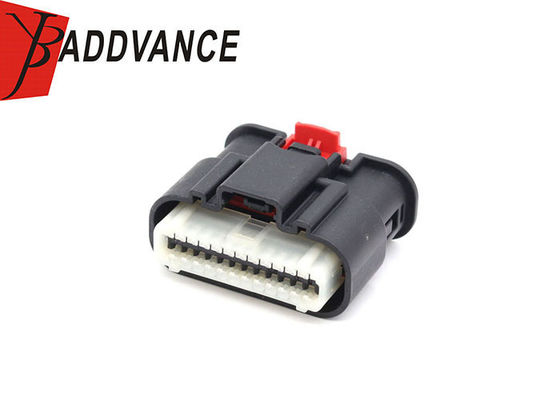

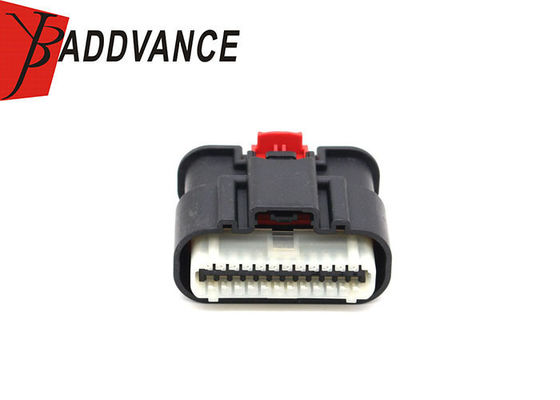

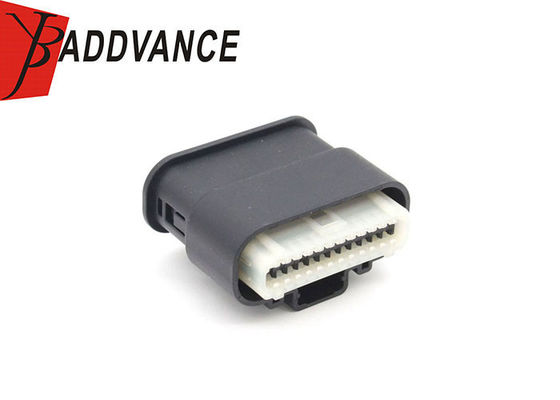

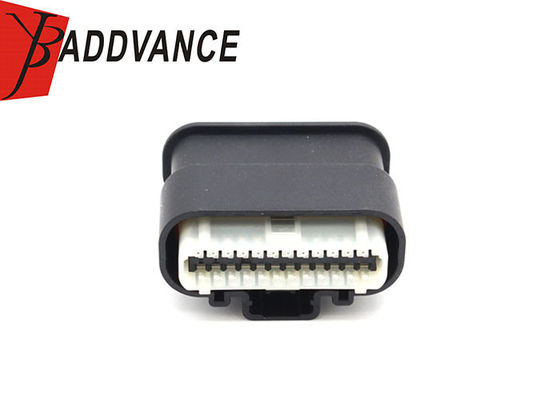

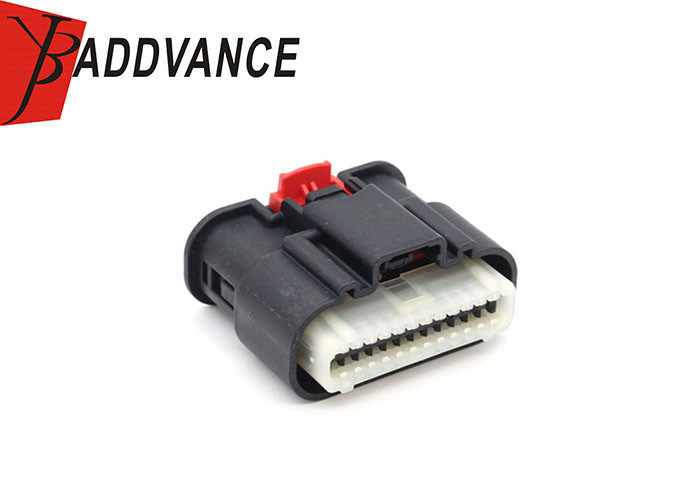

24 Pin Female pa66 gf20 Auto Wire Harness Connectors
Description
This part come with the following types:
Connector: Black female connector housing
Application:For Wire Harness
Specification
| Product Name | 24 Pin Female pa66 gf20 Auto Wire Harness Connectors |
| Delivery Time | About 3-7 days |
| Way | 24 Way |
| Wire Size | 16-22AWG |
| P/N | 24-1-15 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Hot products
| AMP Connector | Gender | Pin number |
| 4-1437290-0 | Female Connector | 34 Pin |
| 282087-1 | Female Connector | 3 Pin |
| 174352-2 | Female Connector | 2 Pin |
| 1-1418390-1 | Female Connector | 4 Pin |
| 2005210-2 | Female Connector | 68 Pin |
| 174877-2 / 174352-2 | Female connector | 1 Pin |
| So on.. | ... | ... |
