Product Details:
Payment & Shipping Terms:
|
| Pin: | 4 Pin | Part-No: | MX10-4SC |
|---|---|---|---|
| Application: | For Car | Color: | Yellow |
| Style: | Automotive Connectors | Gender: | Female |
| Package: | Original Package | Shipping By: | DHL\UPS\Fedex\EMS\HK POST |
| High Light: | MX10-4SC 4 Pin Automotive Socket,MX10-4SC Wire Connector Housing,MX10-4SC 4 Pin Automotive Connector |
||

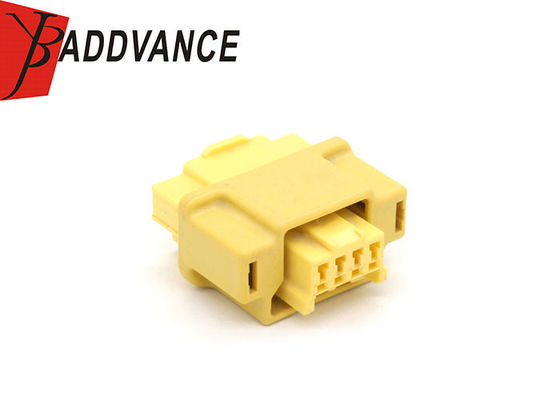

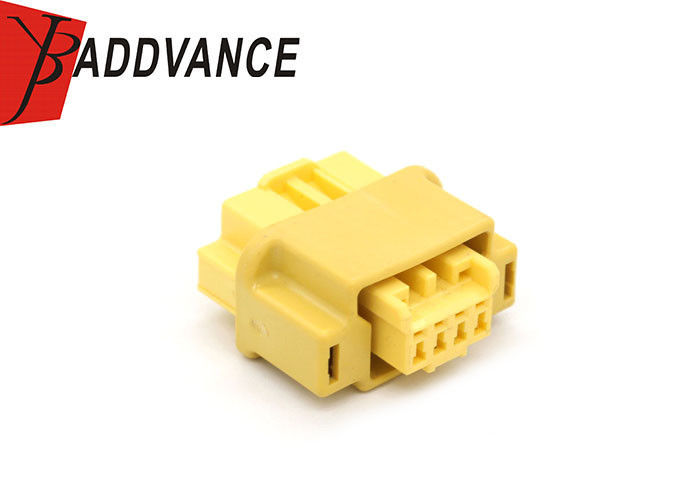

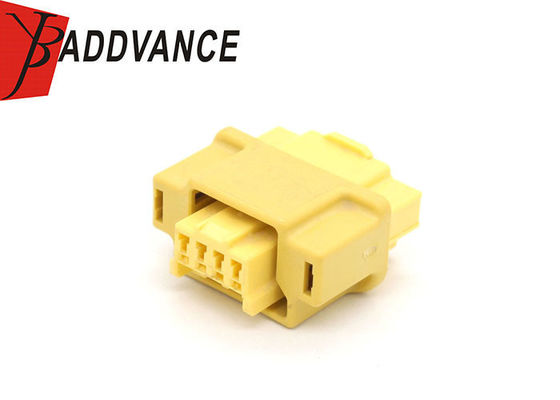

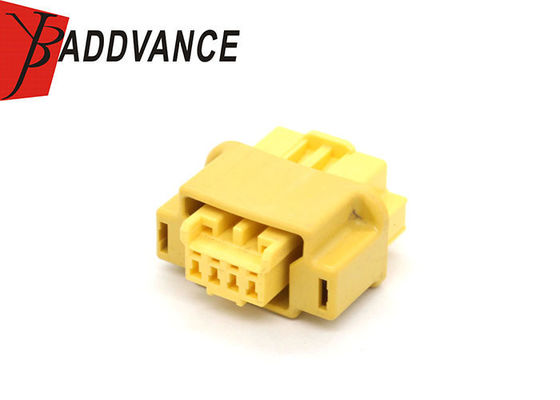

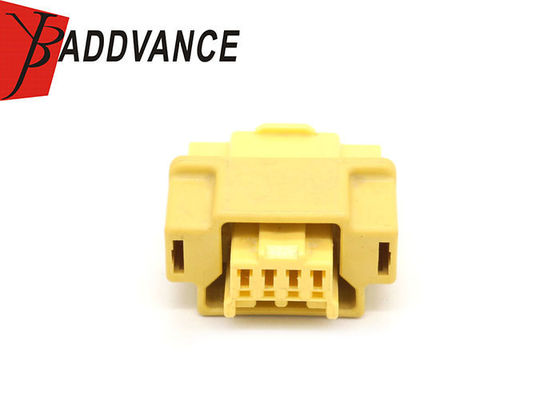

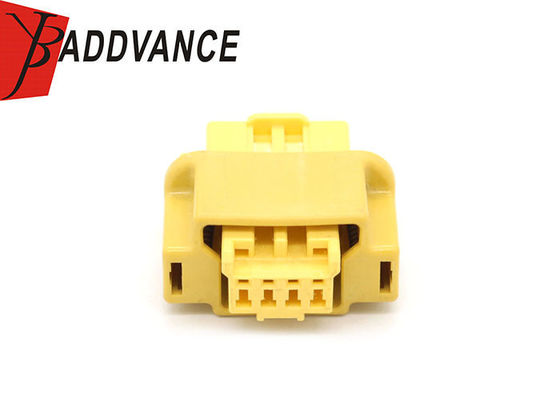

MX10-4SC Yellow 4 Pin Automotive Socket Connector Housing
Description
Yellow 4 Pin Automotive Socket Connector Housing
This part come with the following types:
Brand: YBADDVANCE
Connector Type:Female
Body Color:Yellow
Sealed/Unsealed:Unsealed
Contact Pitch:3.0 mm
Rated Current:3 A
Dielectric Withstanding Voltage:1000 VACr.m.s. (1 minute)
Insulation Resistance:100 megohm min.
Contact Resistanc:7 milliohm max. (initial)
Operating Temperature Range:-40 deg. C to +85 deg. C
Specification
| Product Name | Yellow 4 Pin Female Automotive Socket Connector Housing |
| Delivery Time | About 7-8 days |
| Way | 4 Way |
| Wire Size | 16-22AWG |
| P/N | MX10-4SC |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Unsealed |
| Gender | Female |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
