Product Details:
Payment & Shipping Terms:
|
| Pin: | 3 Pin | Shipping By: | DHL\UPS\Fedex\EMS\HK Post |
|---|---|---|---|
| Part-No.: | 6189-6907 | Application: | For Honda/Acura |
| Package: | Original Package | Color: | Blue |
| STYLE: | Sumitomo Automotive Connectors | Gender: | Female |
| High Light: | HVG .040 Ignition Coil Connector,6189-6907 Ignition Coil Connector,6189-6907 ignition coil wiring harness |
||

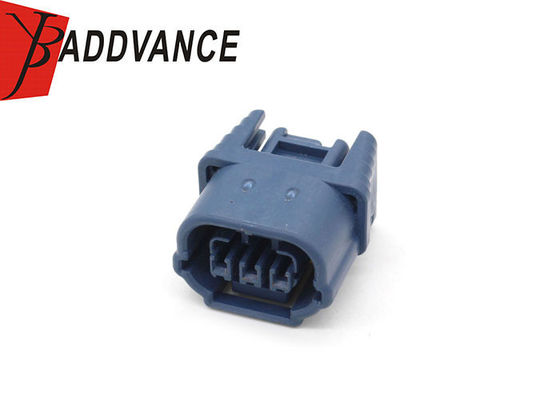

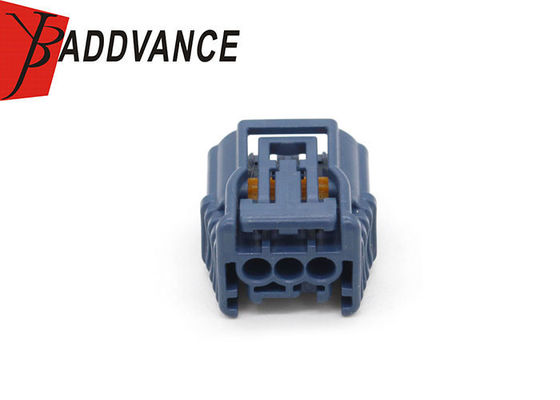

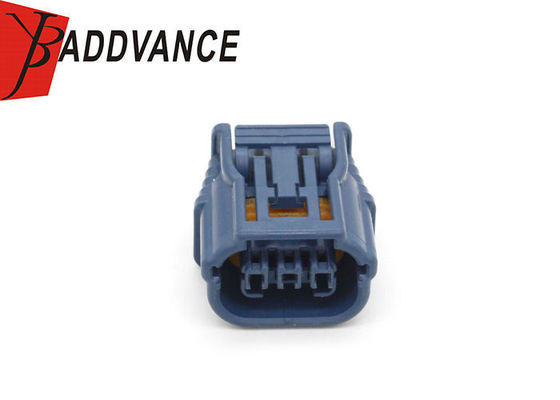

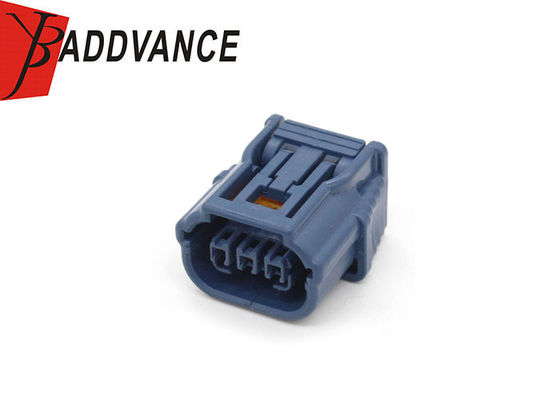

Sumitomo 6189-6907 3 Pin Female Ignition Coil Connector For Honda/Acura
Description
3 Pin HVG .040 Female Ignition Coil Connector For Honda/Acura
This part come with the following types:
Number of Positions:3 Position
Terminals Fit wire size .5 - 1.3 mm (18-22 AWG)
Sumitomo part number 6189-7037 and 6918-1833 Japan
This Connector has Top Rib
Waterproof housing with inner seal, and a seal for each wire
Specification
| Product Name | 3 Pin HVG .040 Female Ignition Coil Connector For Honda/Acura |
| Delivery Time | About 3-7 days |
| Way | 3 Way |
| Wire Size | 16-22AWG |
| P/N | 6189-6907 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Blue |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
