Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| STYLE: | Electrical Connectors | Part-No.: | 2345394-1 |
|---|---|---|---|
| Pin: | 4 Pin | Gender: | Female |
| Color: | Black | Gross Weight: | 2kgs/100pcs |
| Sealed/Unsealed: | Sealed | HS CODE: | 8536909000 |
| High Light: | 2345394-1 4 Pin Female Connector,22AWG 4 Pin Female Connector,2345394-1 |
||

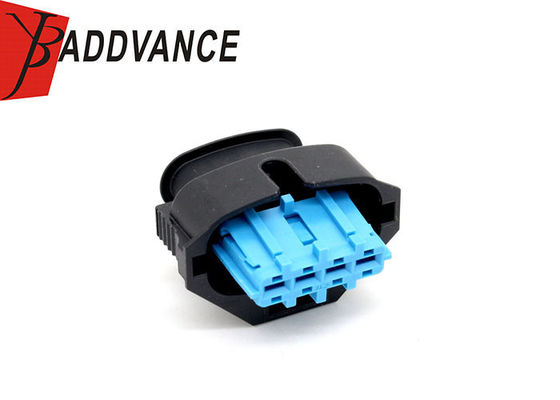

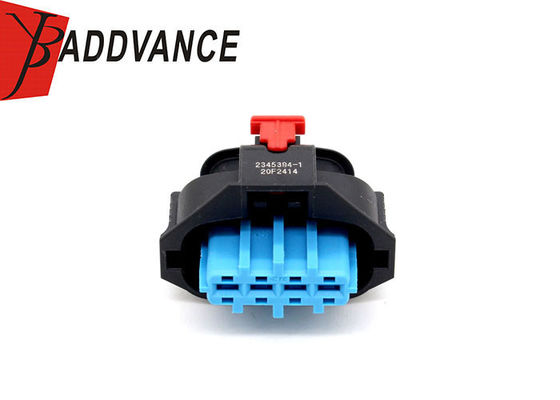

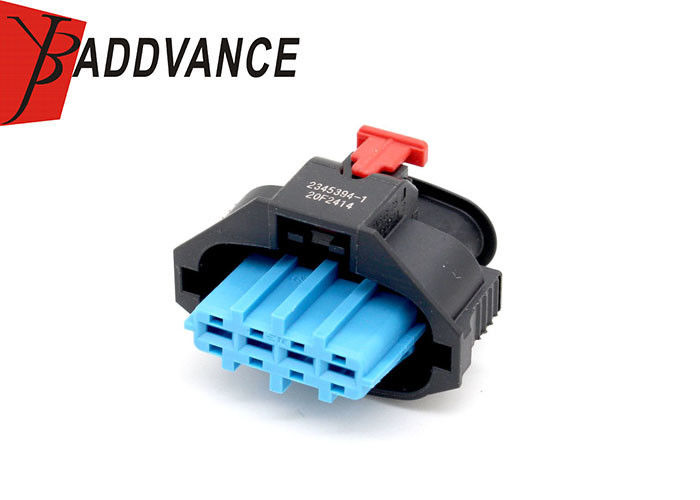

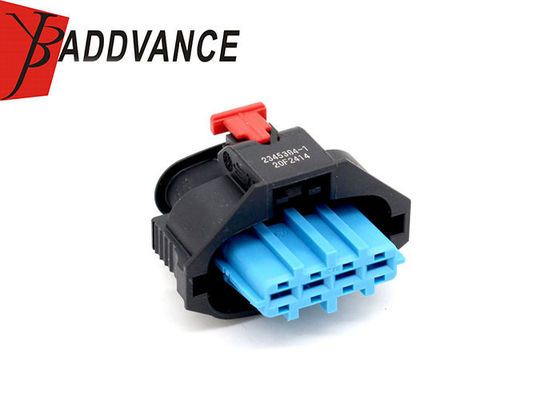

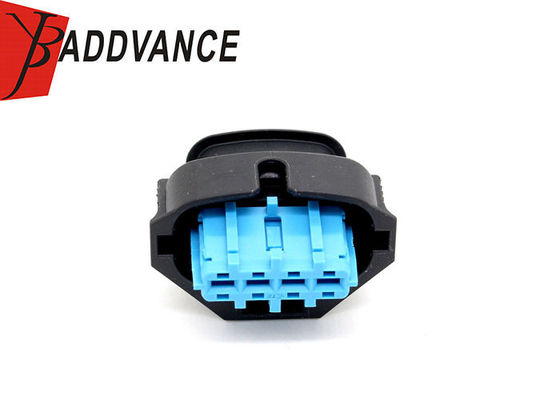

2345394-1 4 Pin Female Sealed Auto Connector For Wire Harness
Specification
| Product Name | 4 Pin Female Sealed Auto Connector |
| Delivery Time | About 3-7 days |
| Way | 4 Way |
| Wire Size | 16-22AWG |
| P/N | 2345394-1 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Description
2345394-1 4 Pin Female Sealed Auto Connector For Wire Harness
This part come with the following types:
Part-No.:2345394-1
Gender:Female
Series:Sealed
Color:Black
RoHS conform:Yes
Mates with:10010059
Type:Connector
Required Numbers1
Weight [kg]0.0072
Cavities:2
Application:For Car
Hot products
| Deutsch Connector | Gender | Pin number |
| DTP06-4S | Female Connector | 4 Pin |
| HD16-3-16S | Female Connector | 3 Pin |
| DT04-3P-E008 | Male Connector | 3 Pin |
| DTM06-2S-EE03 | Female Connector | 2 Pin |
| So on.. | ... | ... |
| AMP Connector | Gender | Pin number |
| 174352-2 | Female Connector | 2 Pin |
| 4-1437290-0 | Female Connector | 34 Pin |
| 1-1418390-1 | Female Connector | 4 Pin |
| 282087-1 | Female Connector | 3 Pin |
| So on.. | ... | ... |
