Product Details:
Payment & Shipping Terms:
|
| Application: | For N Issan | Length: | Standard |
|---|---|---|---|
| Pin: | 3,7 Pin | Style: | Wiring Connector Pigtails |
| Gender: | Female | Color: | Gray+Brown |
| OE-No.: | WH-10 | Material: | PBT,Plastic |
| High Light: | RB26 Ignition Coil Wiring Harness Replacement,R32 Ignition Coil Wiring Harness Replacement,GTR ignition coil harness connector |
||

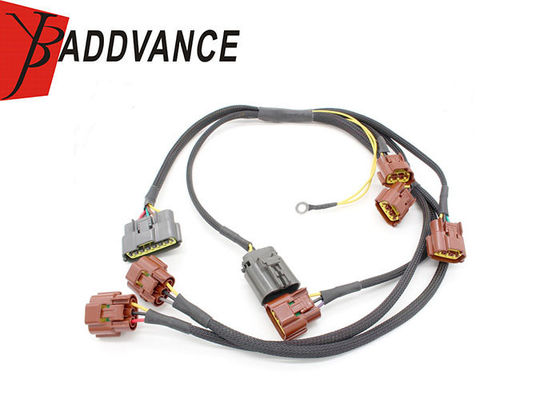

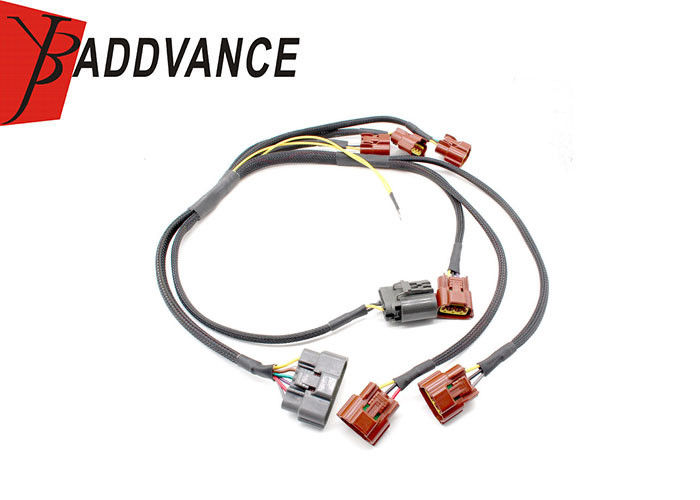

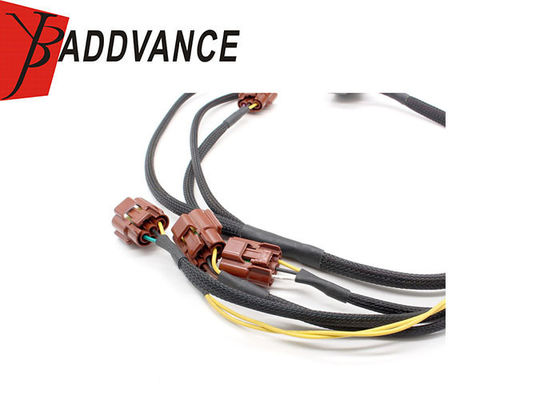

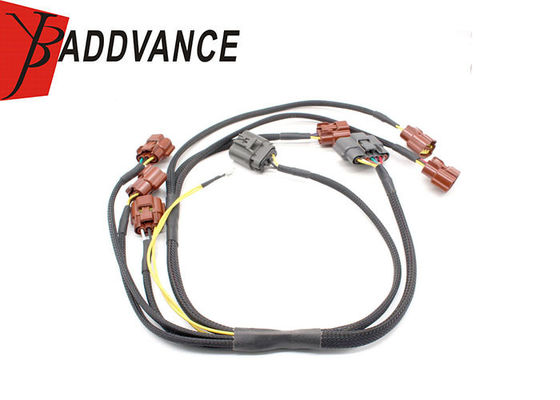

For Nissan Skyline R32 GTR RB26 Ignition Coil Pack Sub Harness
Description
Skyline R32 GTR RB26 Ignition Coil Pack Sub Harness
RBLOOM1 R32 GTR - 6pin igniter delete, big 3pin grey power
RBLOOM2 RB25 - 7pin igniter delete, small 2pin grey power
RBLOOM3 R33 GTR - 6pin igniter delete, small 2pin black power
RBLOOM4 R34 GTR - 8pin harness connector
RBLOOM5 RB25 NEO - 8pin harness connector + custom harness for cocked #6 coil
RBLOOM6 RB UNIVERSAL - dt8 deutsch connector end
Specification
| Color | Gary+Brown |
| Material | PBT |
| Sealed/Unsealed | WH-10 |
| OE.-no. | Sealed |
| Product Name | Skyline R32 GTR RB26 Ignition Coil Pack Sub Harness |
| Delivery Time | About 3-7 days |
| Gender | Female+male |
| Sample | We can provide you samples before place an order |
| Application | For Nissan |
| Quality Control | All goods will be 100% inspected before shipment |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Insulation resistance | 100MΩ Min. |
| Leak current | 10μA Max. |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Gross weight | 1.5kgs/1pieces |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Hot products
| Parts number | Keywords | Color | Wire length |
| BC70424 | Sumitomo Denso Female to EV6 EV14 Male | Black | 11cm |
| BC70425 | EV1 Female to Sumitomo/DensoMale | Black and Gray | 11cm |
| BC7015 | EV6 US Car (Female) to Denso (Male) | Black and Gray | 11cm |
| BC7278 | Fuel Pump For N issan | Black | 11cm |
| BC7043 | EV1 Female to Sumitomo/Denso Male | Black and Gray | 11cm |
| BC7683 | EV6 US Car to H-onda (male) | Black and Gray | 11cm |
| So on... | ... | ... | ... |
