Product Details:
Payment & Shipping Terms:
|
| Number Of Way: | 2 Pin | Part-No.: | WH-14 |
|---|---|---|---|
| Shipping By: | UPS/Fedex/TNT | STYLE: | Wire Harness |
| Color: | Gray | Application: | For Denso |
| Gender: | Female Harness | Warranty: | One Year |
| High Light: | 2 Pin Nippon Denso Fuel Injector Connector,Female Nippon Denso Fuel Injector Connector,2 Pin nippon denso injector connector |
||

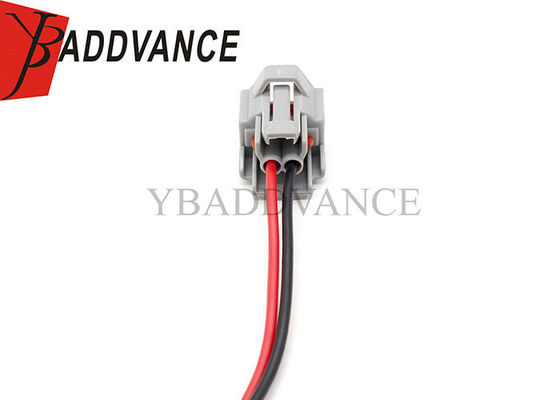

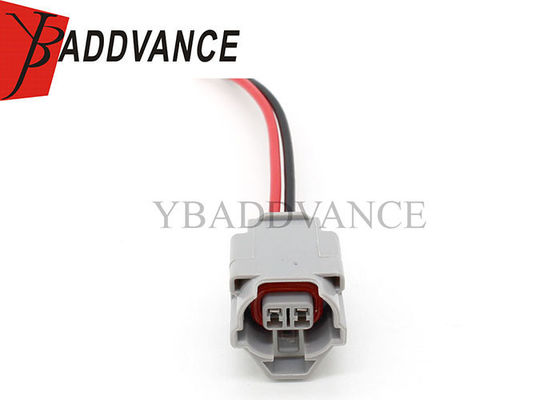

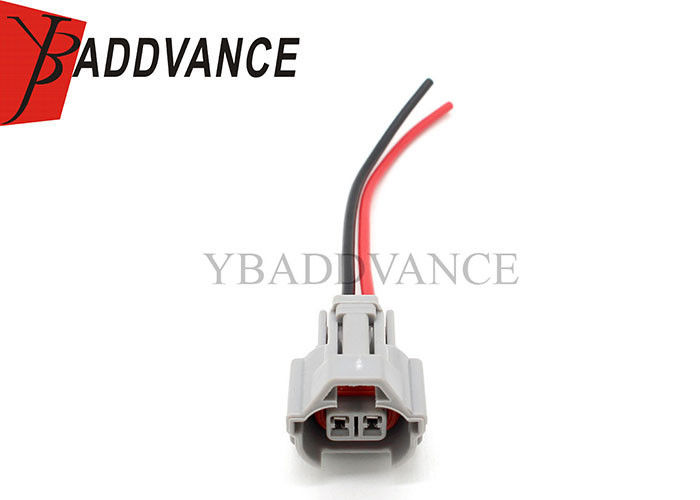

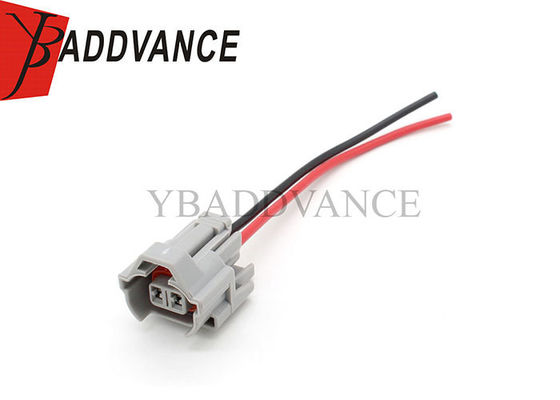

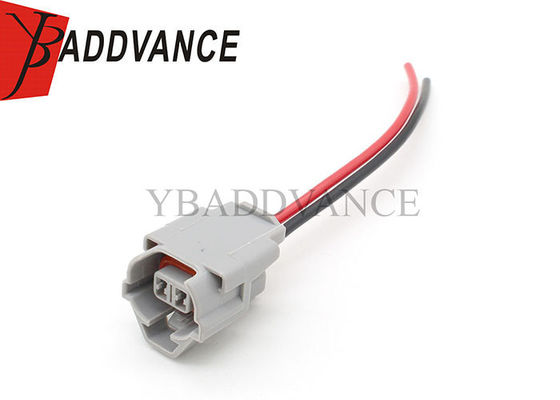

Nippon Denso Type Fuel Injector Connector 2 Pin Female Wire Pigtail
Specification
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | WH-14 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | Nippon Denso Type Fuel Injector Connector 2 Pin Female Wire Pigtail |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 2 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Female |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
Nippon Denso Type Fuel Injector Connector 2 Pin Female Wire Pigtail
This part come with the following types:
Brand: YBADDVANCE
Stype:Fuel Injector Connector
Connector Type:Female
Body Color:Gray
Application:For denso
Hot products
| TE Connector | Gender | Pin number |
| 0-2112986-1 A | Female Connector | 2 Pin |
| 0-2112986-2 A | Female Connector | 2 Pin |
| 0-2236114-1 B | Female Connector | 2 Pin |
| 1-1924067-4 | Female Connector | 2 Pin |
| 1-2296694-3 | Female connector | 2 Pin |
| 1-1924067-6 | Female Connector | 2 Pin |
| 2-2112986-5 A | Female Connector | 2 Pin |
| So on.. | ... | ... |
