Product Details:
Payment & Shipping Terms:
|
| Application: | For GM | Way: | 3 Way |
|---|---|---|---|
| Gender: | Male | Color: | Gray |
| Warranty: | One Year | Sealed/Unsealed: | Sealed |
| Gross Weight: | 2kgs/100pcs | HS CODE: | 8536909000 |
| High Light: | QLW-A-3F-GR Light Socket Connector,2.3mm Light Socket Connector,QLW-A-3F-GR light bulb connector |
||

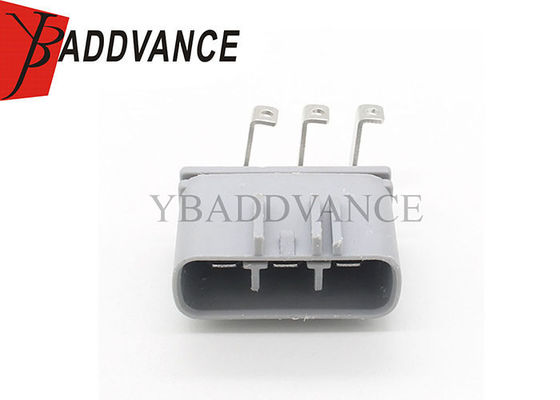

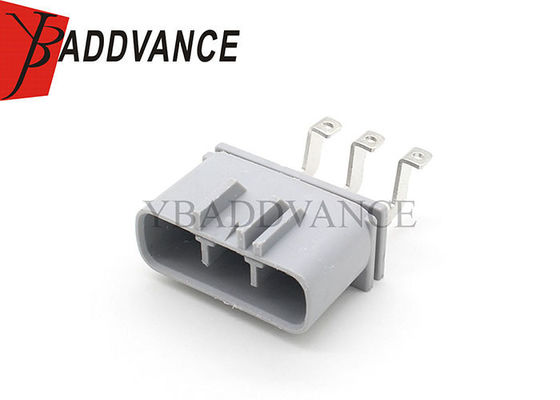

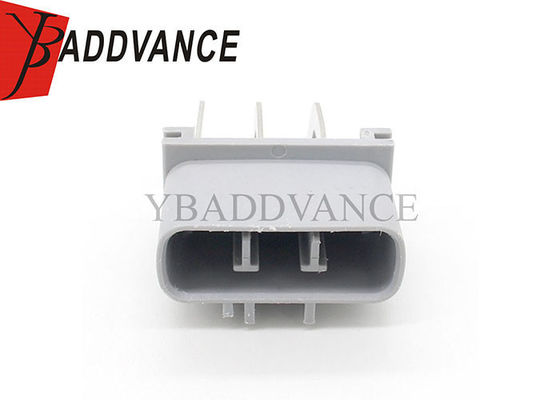

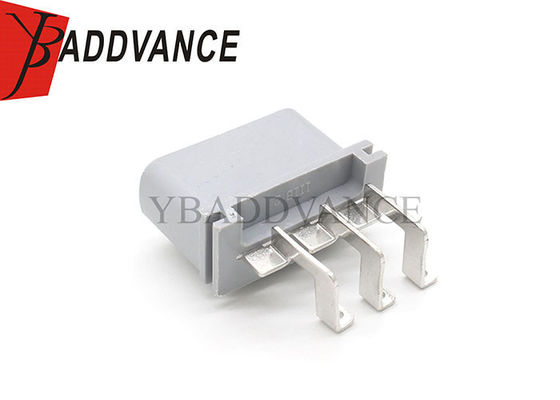

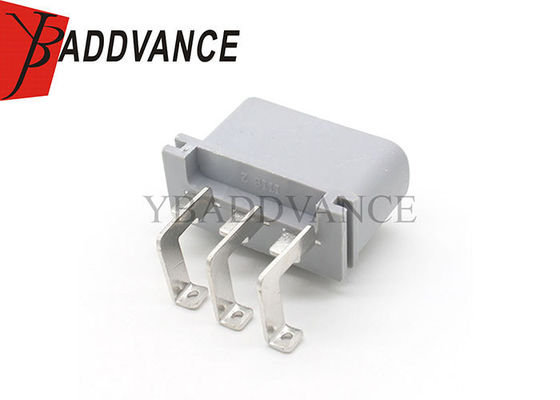

Furukawa QLW-A-3F-GR 3 Way 2.3mm Male Auto Light Lamp Socket Connector
Description
Furukawa QLW-A-3F-GR 3 Way 2.3mm Male Auto Light Lamp Socket Connector
This part come with the following types:
Application:For car
Specification
| Product Name | 3 Way 2.3mm Male Auto Light Lamp Socket Connector |
| Number of Positions | 3 Way |
| Original number | NO |
| Material | Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze. |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Male/Female | Male |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| Operating Temperature range | -40℃~120℃ |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Hot products
| Sumitomo Connector | Gender | Pin number | Application |
| 6185-1177 6918-1780 | Female Connector | 8 Pin | For Headlight Lamp |
| HC-050 | Male Connector | 2 Pin | For Turn Signal Light |
| 6189-0715 | DL Female Connector | 16 Pin | |
| 6098-0148 | Female Connector | 7 Pin | For nissan |
| So on.. | ... | ... | |
| Molex Connector | Gender | Pin number | Application |
| 34062-0021 | Female Connector | 2 Pin | For Fuel Injector |
| 987881201 0987881201 | Female Connector | 10 Pin | For Peugeot |
43025-1000 |
Female Connector | 10 Pin | |
| 31403-3700 | Female Connector | 3 Pin | |
| So on.. | ... | ... |
