Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 7282-3445-30 | Pin: | 16 Pin |
|---|---|---|---|
| STYLE: | Automotive Connectors | Gender: | Male |
| Color: | Black | Sealed/Unsealed: | Sealed |
| Gross Weight: | 2kgs/100pcs | Application: | For Auto |
| High Light: | 16 Pin Automotive Electrical Connectors,7282-3445-30 Automotive Electrical Connectors,7282-3445-30 16 pin automotive connector |
||

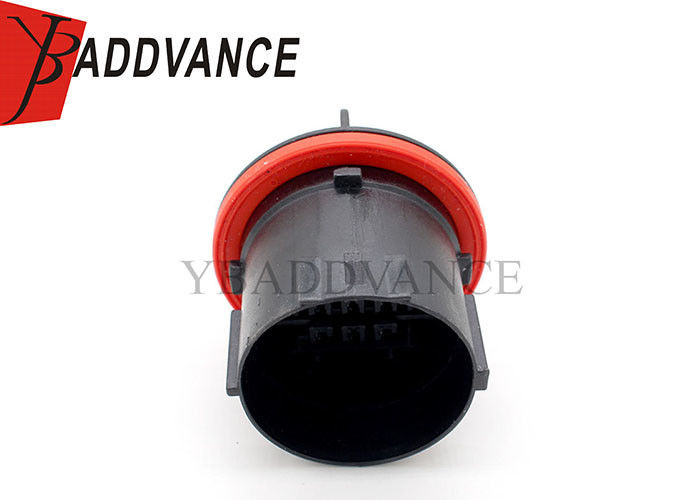

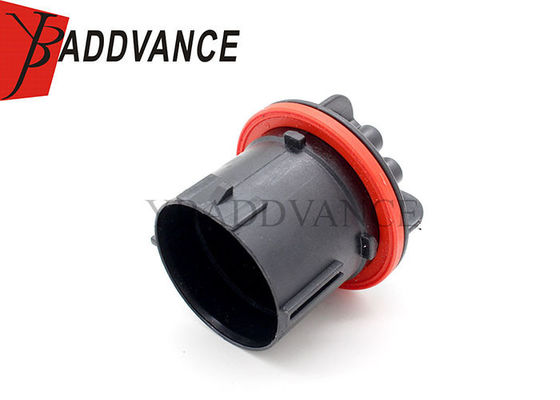

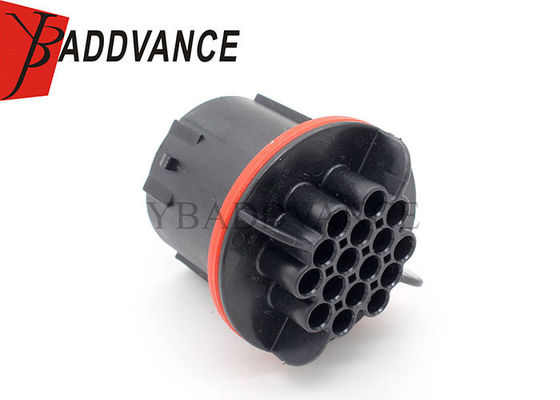

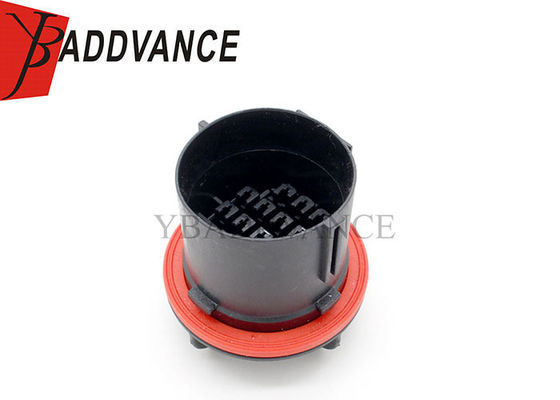

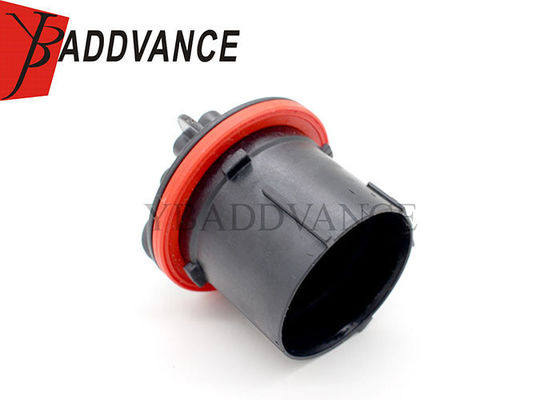

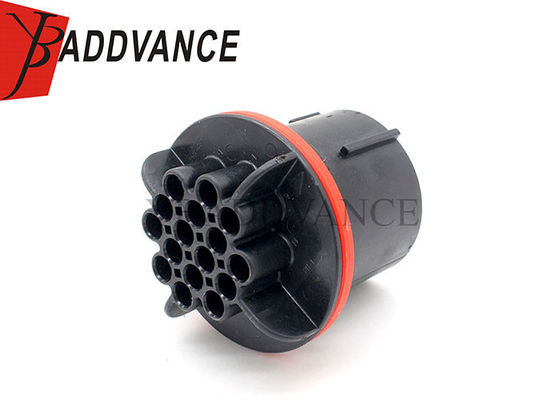

7282-3445-30 16 Pin Male Waterproof Automotive Connectors
Description
16 Pin Male Waterproof Automotive Connectors
This part come with the following types:
Original number:7282-3445-30
Pin n/p: 16 pin
Gender:male connector
Brand:YBADDVANCE
Color:Black
Application:For auto
Specification
| Product Name | 16 Pin Male Waterproof Automotive Connectors |
| Delivery Time | About 3-7 days |
| Way | 16 Way |
| Wire Size | 16-22AWG |
| P/N | 7282-3445-30 |
| Gender | male |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Hot products
| Sumitomo Connector | Pin number | Gender | Application |
| 6189-0647 | 4 Pin | Female | For T-PRS-Switch |
| 6189-7396 / 90980-12A88 | 1 Pin | Female | For Lexus Toyota |
| 6195-0038 | 8 Pin | DL 090 Female | |
| 6187-2171 | 2 Pin | Female | For Automotive |
| 6189-0134 6918-0332 | 8 Pin | HW 090 Female | |
| So on.. | ... | ... | ... |
| Deutsch Connector | Pin number | Gender | |
| DTM06-3S-E007 | 3 Pin | Female connector | |
| DTM06-2S-EE03 | 2 Pin | Female connector | |
| DT04-8P | 8 Pin | Male connector | |
| DTM04-12P | 12 Pin | Male connector | |
| So on.. | ... | ... | ... |
