Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 4H0973713 | Pin: | 6 Pin |
|---|---|---|---|
| STYLE: | FEP Auto Connectors | Color: | Black Color |
| Sealed/Unsealed: | Sealed Connector | Including: | Connector Housing,terminals,rubber Seals |
| Gross Weight: | 1.5kgs/100pcs | Application: | For VW Audi |
| High Light: | 6 Pin FEP Automotive Connectors,4H0973713 FEP Automotive Connectors,4H0973713 6 pin electrical connector |
||

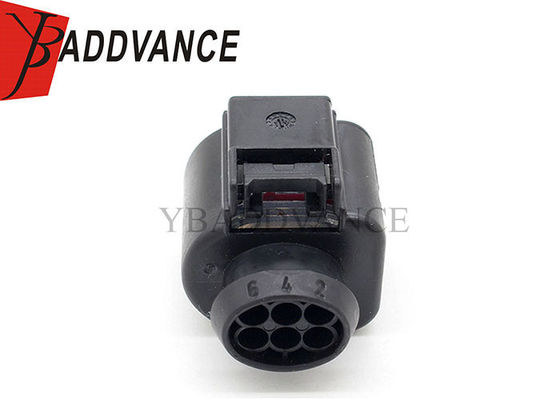

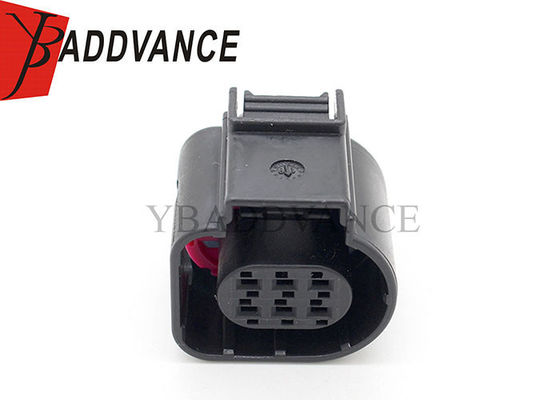

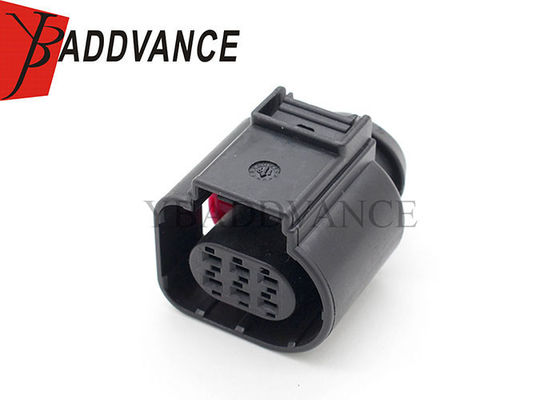

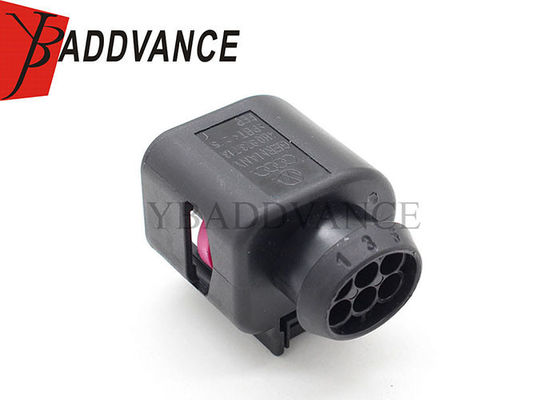

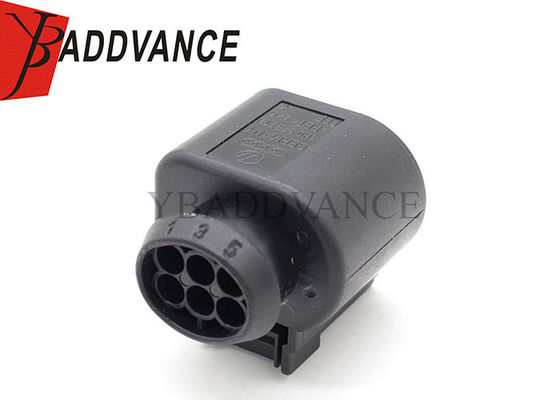

4H0973713 6 Pin O2 Oxygen Sensor Throttle Body Connectors Plugs For VW Audi
Description
This part come with the following types:
Condition: 100% new
Color: Black
Material: Plastic&Metal
MPN: 4H0973713,1928404669
Item included:
5 x Oxygen Sensor Connector Plugs
30 x Pins
30 x Waterproof Stoppers
Compatible With: fit for VW Audi
Application:For VW Audi
Specification
| Product Name | 6 Pin O2 Oxygen Sensor Throttle Body Connectors |
| Delivery Time | About 3-7 days |
| Way | 6 Way |
| Wire Size | 16-22AWG |
| P/N | 4H0973713 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
