Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Number Of Pin: | 4 Pin | Part-No.: | 4B0973712 |
|---|---|---|---|
| Material: | PBT PA66 | MOQ: | 100 Units/lot |
| Application: | For VW Jetta Golf AUDI A4 | Delivery Time: | About 3-7 Days |
| STYLE: | FEP Automotive Connectors | Color: | Black |
| Highlight: | 4B0973712 4 Pin Pigtail Plug,4B0 973 712 4 Pin Pigtail Plug,4B0973712 4 pin wiring connector |
||

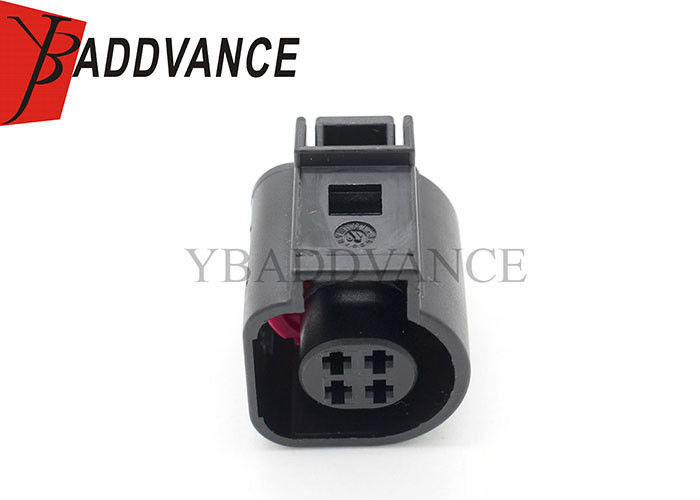

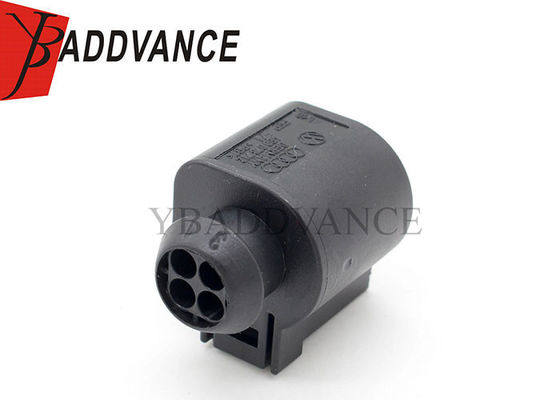

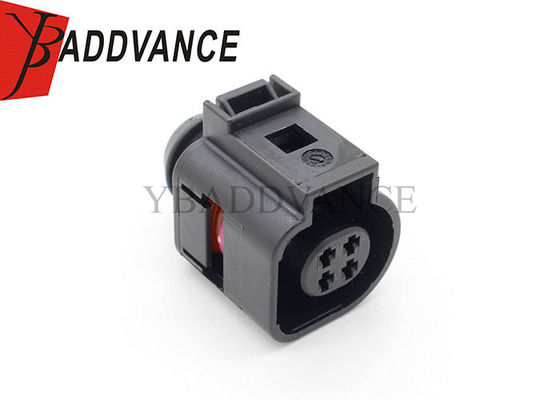

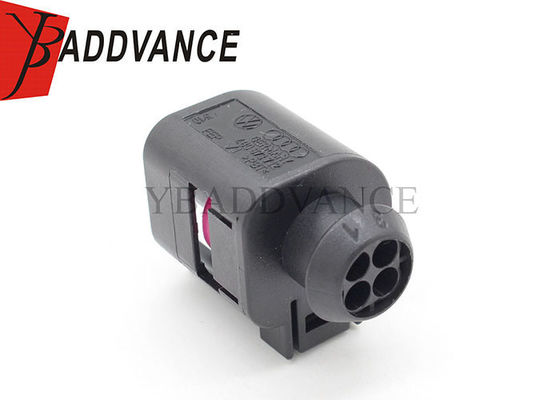

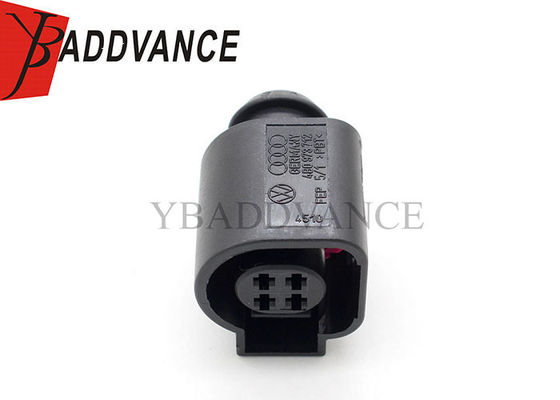

4B0973712 4 Pin Pigtail Plug Wiring Connector For VW Jetta Golf AUDI A4
Specification
| Sealed/Unsealed | Sealed |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | 4B0973712 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 4 Pin Pigtail Plug Wiring Connector For VW Jetta Golf AUDI A4 |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 4 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Female |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
4B0973712 4 Pin Pigtail Plug Wiring Connector For VW Jetta Golf AUDI A4
This part come with the following types:
Place of Origin:Zhejiang, China
Condition: New
Other Part Number: 4B0 973 712
Superseded Part Number: 4B0 -973-712
Brand: YBADDVANCE
Fitment Type: Direct Replacement
Interchange Part Number: 4B0973712
Manufacturer Part Number: 4B0 973 712
Application:For VW Jetta Golf AUDI A4
