Product Details:
Payment & Shipping Terms:
|
| Number Of Pin: | 2 Pin | Part-No.: | 49093-0211 |
|---|---|---|---|
| Gender: | Female | Application: | For HYUNDAI KIA |
| Sealed / Unsealed: | Sealed | STYLE: | Waterproof Automotive Connectors |
| Color: | Black | Material: | PBT / PA66 |
| High Light: | 49093-0211 Ignition Coil Connector,2 Pin Ignition Coil Connector,49093-0211 hyundai getz coil pack connector |
||

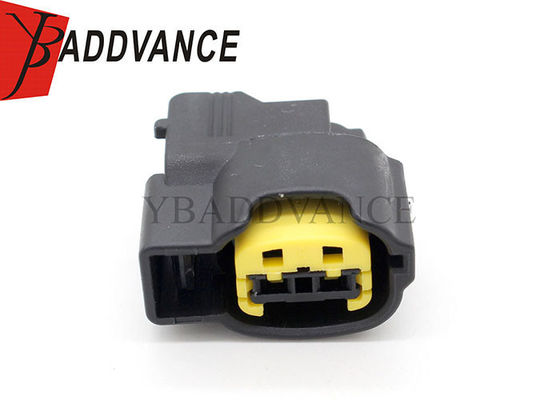

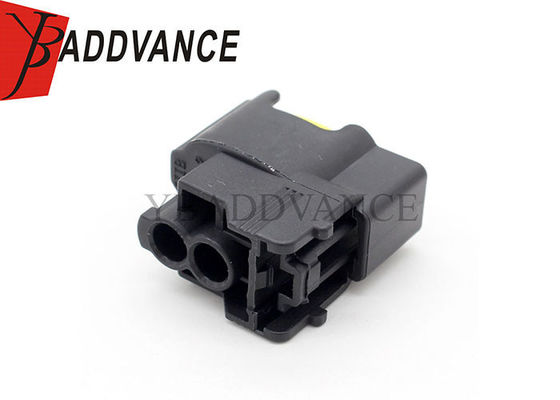

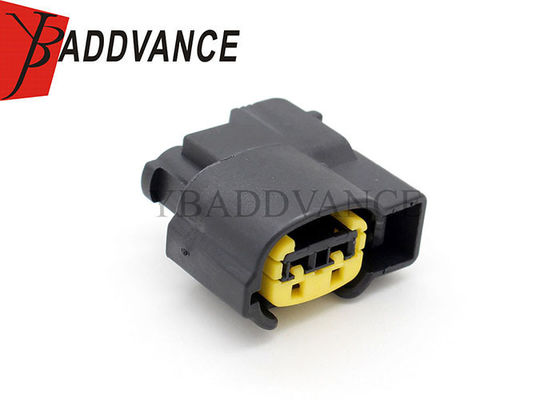

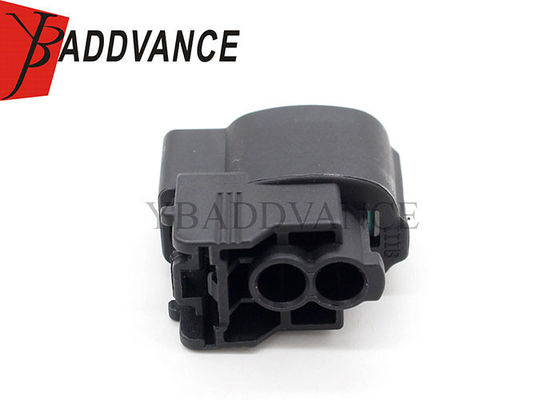

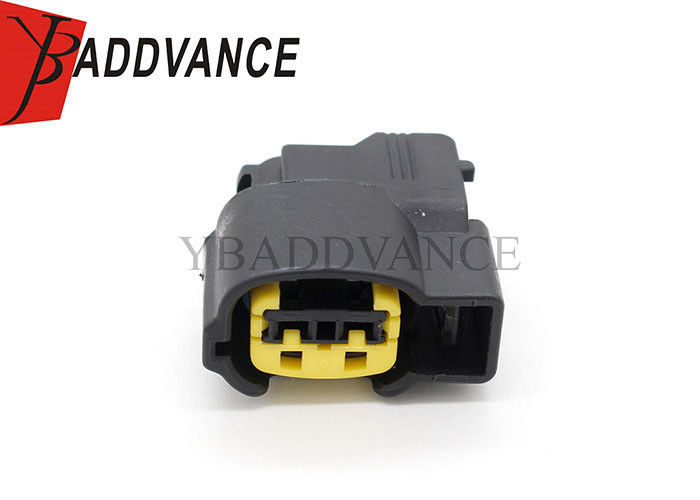

49093-0211 2 Pin Female Ignition Coil Connector For HYUNDAI KIA
Specification
| Sealed/Unsealed | Sealed |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | 49093-0211 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 2 Pin Female Ignition Coil Connector For HYUNDAI KIA |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 2 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Female |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
49093-0211 2 Pin Female Ignition Coil Connector For HYUNDAI KIA
This part come with the following types:
Place of Origin:Zhejiang, China
Brand Name:YBADDVANCE
Model Number:49093-0211 / PL7024Q-2.2-21
Gender:Female
Ways:2Ways
Sealed / Unsealed:Sealed
With Wedge:Available
Color:Black
Operating Temp:-40℃-125℃
Sample:Available
OEM / ODM:Available
Application:For HYUNDAI KIA
