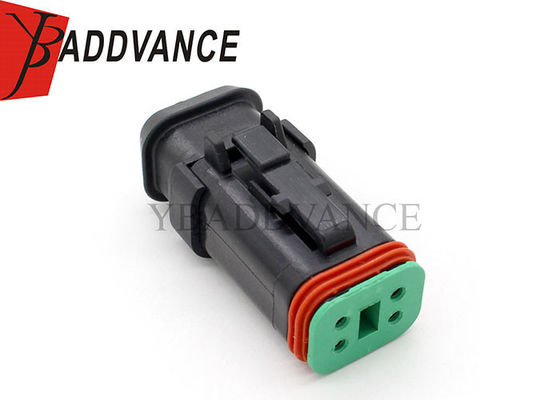

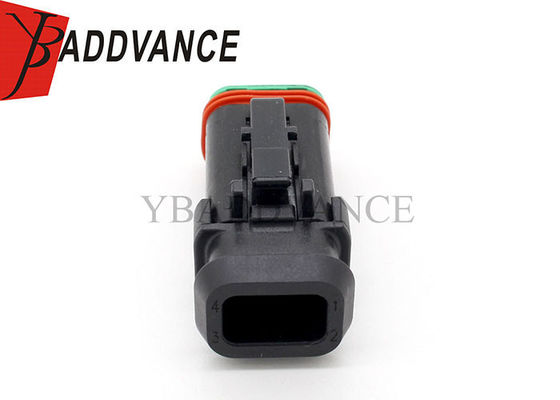

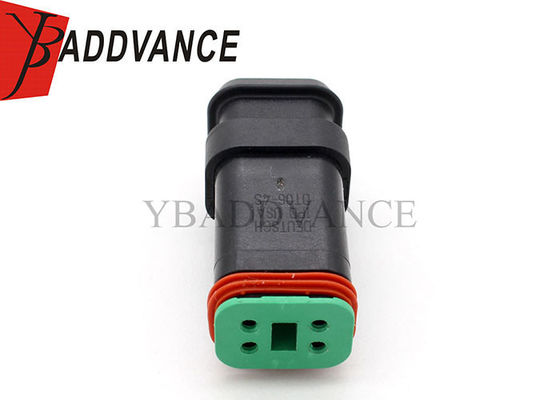

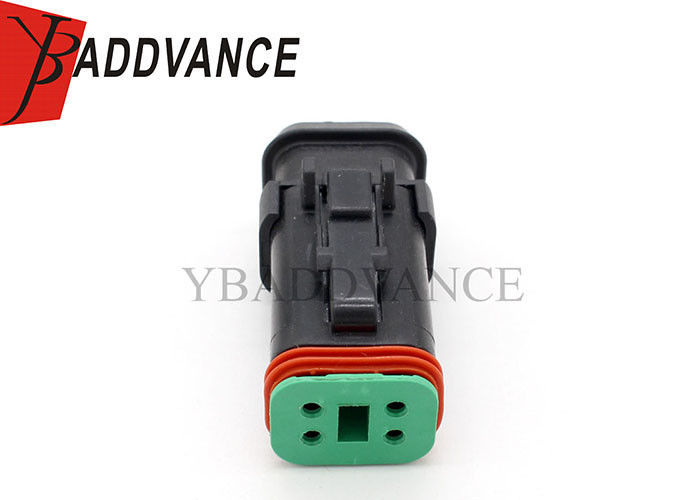

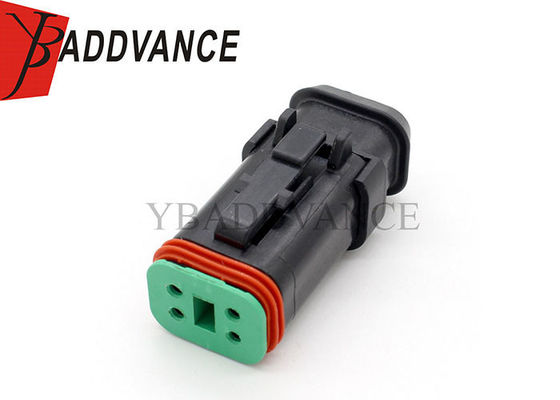

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention
DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

Large Image :  DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT06-4S-EP11

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: Negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Color: Black Warranty: 1 Year
Materials: PBT,Plastic PA66,pbt Gf30 And So On... Sealed/Unsealed: Sealed
Standard: OEM Standard Part Number: DT06-4S-EP11
Leak Current: 100μA Max. Insulation Resistance: 100M Min.
Moq: 100 Pcs Gender: Female
High Light:

DT06-4S-EP11 Deutsch Automotive Connectors

,

1.59 mm Deutsch Automotive Connectors

,

DT06-4S-EP11 4 pin deutsch plug

DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector


Description of  Product
DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector
Including:
connector housing * 1
grommet * 1
wedge * 1
Connector & Housing Type : Housing for Female Terminals
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Wire
Number of Positions : 4
Centerline (Pitch) : 4.45 mm [ .175 in ]



Specification



Keywords

4 Pin Connector

Part NumberDT06-4S-EP11
Sealed/Unsealed

sealed

Male/Femalefemale
MaterialPBT  PA66
Way4 way
MOQ

100 units/lot

Leak current100μA Max.
Insulation resistance100MΩ Min.
seal

Initial
98kPa Min.
after durability tests
98kPa Min.

Mating Pin Diameter 1.59 mm [ .063 in ]
Housing ColorBlack
Operating Temperature range-40℃~120℃
SampleWe can provide you samples before place an order
IncludingHousing Socket,terminals,seals
Main productsElectrical Connectors,wire harnesses and fuel injector repair kits..
Delivery TimeAbout 3-7 days
Replacement BrandTE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.
Design AbilityPlease send us drawing or samples to design OEM&ODM
MarketCANADA,ITALY,Germany,Finland,UK,USA, and so on...
Gross weight1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention 0
More details about pictures

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention 1
DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention 2
