DT04-8P-L012 8 Pin Male Receptacle Plug Connector With Flange

Name: DT04-8P-L012 8 Pin Male Receptacle Plug Connector With Flange
Brand: YBADDVANCE
SKU: DT04-8P-L012
Rating: 4.8 (187 reviews)

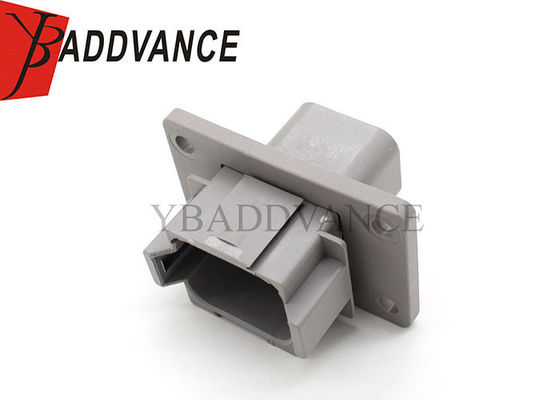

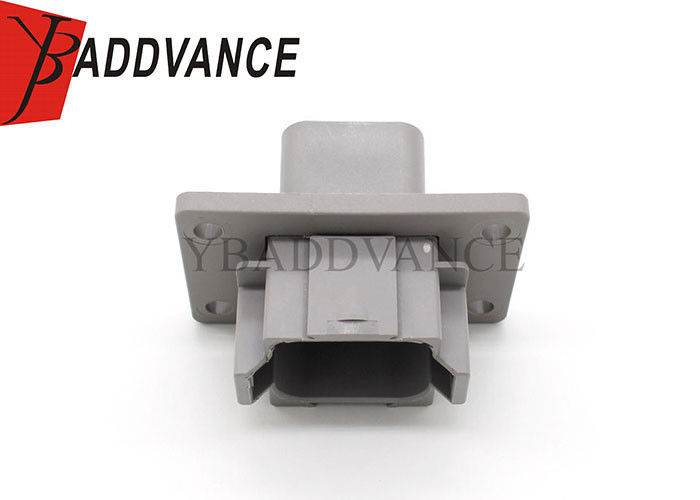

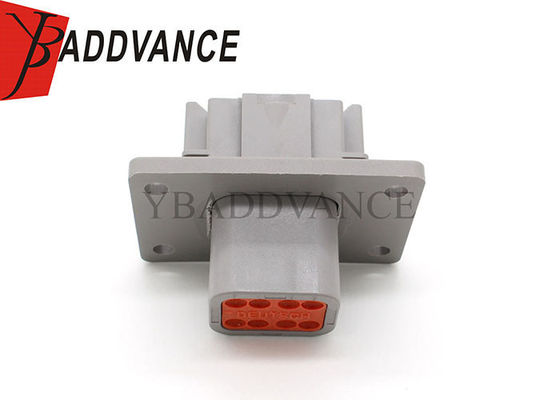

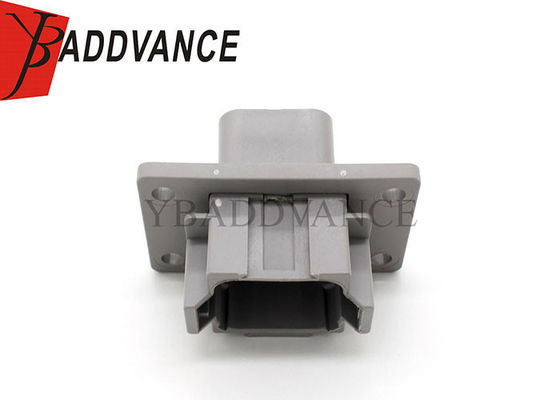

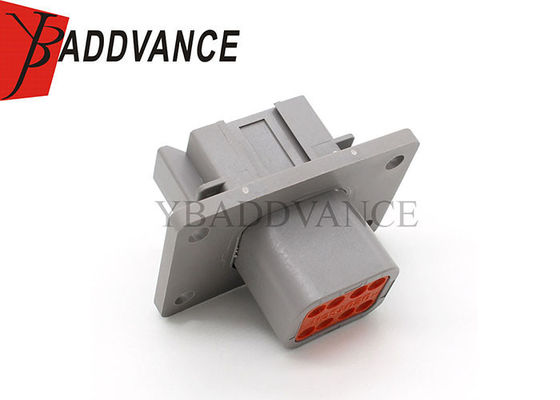

Large Image : DT04-8P-L012 8 Pin Male Receptacle Plug Connector With Flange

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	DT04-8P-L012

Payment & Shipping Terms:

Minimum Order Quantity:	100 UNITS
Price:	negotiation
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month

Contact Now

Detailed Product Description

Number Of Positions:	8 Pin	Gender:	Male
Material:	Plastic	STYLE:	Deutsch DT Connectors
Color:	Gray	Part-No.:	DT04-8P-L012
Wire Range:	20-18 AWG	HS CODE:	8536909000
High Light:	DT04-8P-L012 Male Receptacle Plug Connector , 8 Pin Male Receptacle Plug Connector , DT04-8P-L012 8 pin receptacle connector

DT04-8P-L012 8 Pin Male Receptacle Connector With Flange

Description

This part come with the following types:

Group :Receptacles

Brand :YBADDVANCE

Part № :DT04-8P-L012

U/M :Each

Wedgelock :Requirement W8P (sold separately)

Keyed:B

Cable :Insulation Range .088" - .145"

Holds :Pin

Cavities :8

Color :Gray

Operating :Temperature -55°C to +125°C (-67°F to 257°F)

Shape :Rectangular

Max Current Range 13 Amps

Mount In-line

Specification

Material	PBT,Plastic PA66,pbt gf30 and so on...
Quality Control	All goods will be 100% inspected before shipment
Wire Size	16-22AWG
P/N	DT04-8P-L012
Operating Temperature range	-40~120
Insulation resistance	100MΩ Min.
MOQ	100 units/lot
Product Name	8 Pin Male Receptacle Connector With Flange
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Way	8 Pin
Delivery Time	About 3-7 days
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
