Product Details:
Payment & Shipping Terms:
|
| Number Of Positions: | 6 Pin | Gender: | Male |
|---|---|---|---|
| Sealed/Unsealed: | Sealed | STYLE: | Deutsch DT Connectors |
| Color: | Gray | Part-No.: | DT04-6P-L012 |
| Gross Weight: | 2kgs/100pcs | HS CODE: | 8536909000 |
| High Light: | DT04-6P-L012 Deutsch Automotive Connectors,22AWG Firewall Deutsch Automotive Connectors,DT04-6P-L012 male deutsch connector |
||

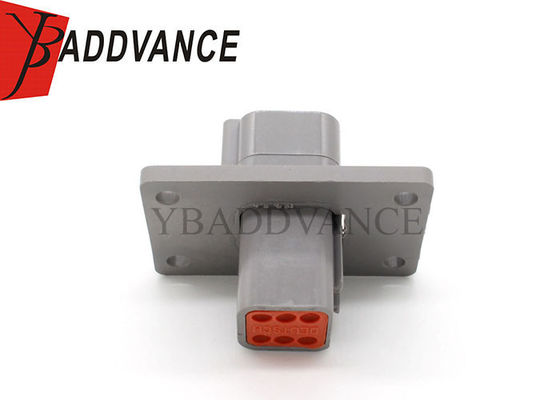

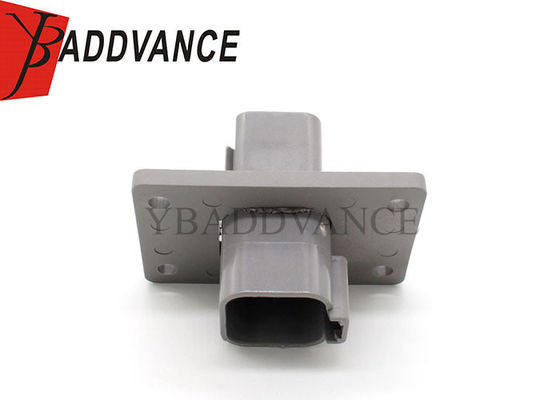

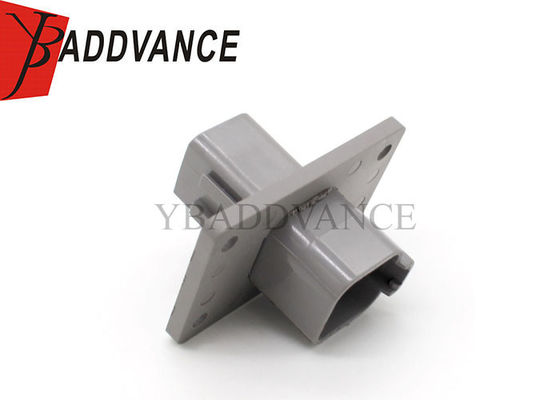

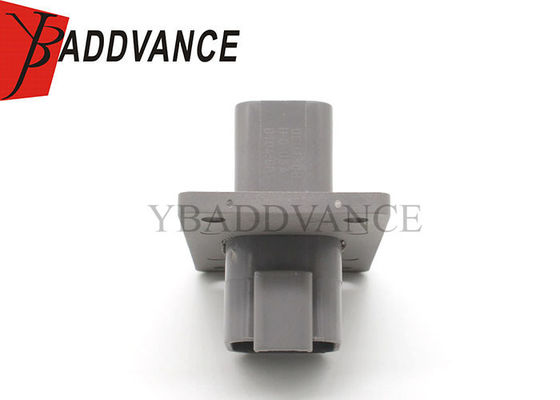

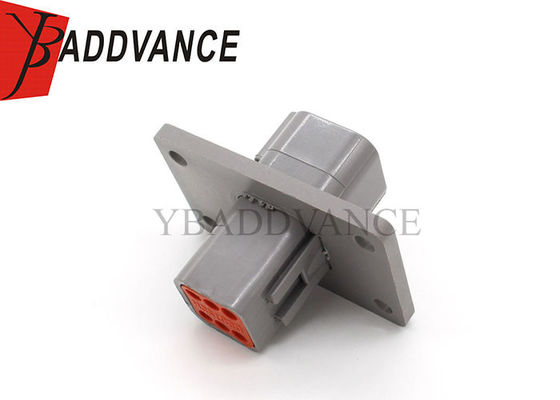

DT04-6P-L012 6 Pin Deutsch DT Male Firewall Connector
Description
This part come with the following types:
Connector Style :Sumitomo Automotive ConnectorProduct Type: Plug
Number of Positions: 6-Way A Position Key
Contact Size: 16
AWG: 14-20
AMP: 13A
Contact Type: Socket
Color: Gray
End Cap/Rear Seal Dimensions: .088" - .145"
Mating Part(s): AT04-12PA* Receptacle
Wedgelock Part Number : AW12S
Wire Range: 14-20 AWG
Specification
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | DT04-6P-L012 |
| Operating Temperature range | -40~120 |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 6 Pin Deutsch DT Male Firewall Connector |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 6 Way |
| Delivery Time | About 3-7 days |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
