Product Details:
Payment & Shipping Terms:
|
| Part Number: | DT04-2P-L012 | Gender: | Male |
|---|---|---|---|
| Warranty: | 1 Year | Sealed/Unsealed: | Sealed |
| Insulation Resistance: | 100M Min. | Pin: | 2 Pin |
| MOQ: | 100 Pcs | Materials: | PBT,Plastic PA66,pbt Gf30 And So On... |
| High Light: | DT04-2P-L012 Deutsch DT 2 Pin Connector,Flange Deutsch DT 2 Pin Connector,DT04-2P-L012 two pin deutsch connector |
||

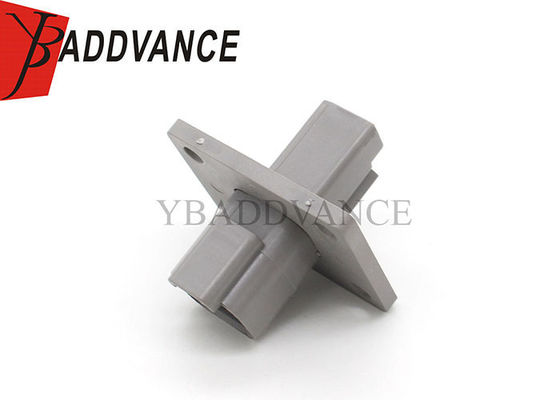

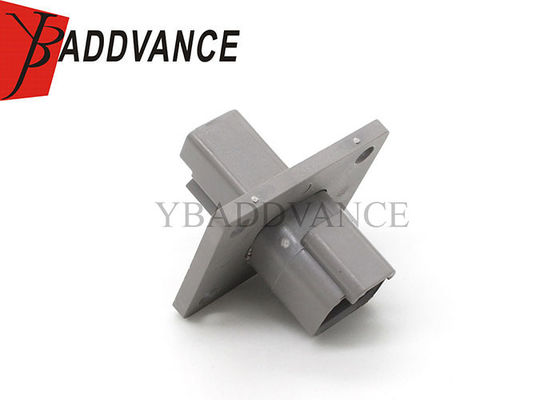

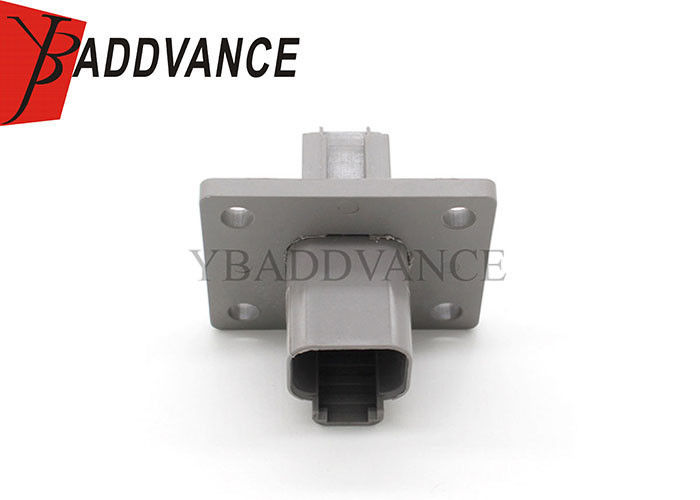

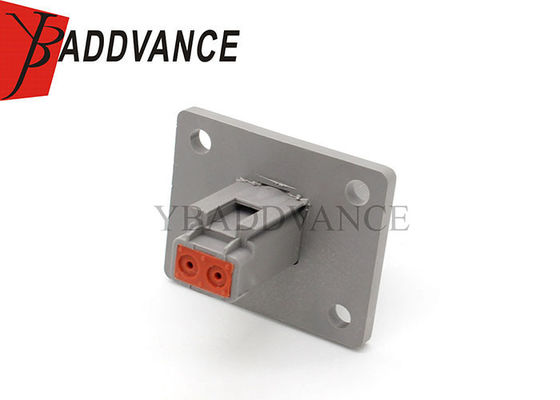

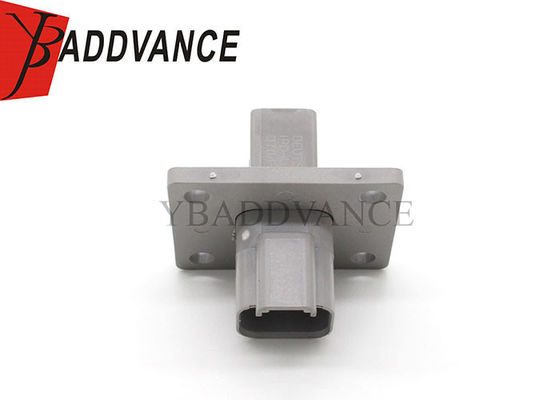

DT04-2P-L012 Grey Deutsch With Welded Flange 2 Pin DT Connector
Description of Product
| Keywords |
2 Pin DT Connector |
| Part Number | DT04-2P-L012 |
| Sealed/Unsealed |
Sealed |
| Male/Female | Male |
| Material | PA66 GF |
| Way | 2 way |
| Mating Pin Diameter |
1.59 mm [ .063 in ]
|
| Centerline (Pitch) | 5.46 mm [ .215 in ] |
| Size |
Width : 40.51 mm [ 1.595 in ]
Height : 31.75 mm [ 1.25 in ]
Length : 43.38 mm [ 1.708 in ]
|
| Quality Control | All goods will be 100% inspected before shipment |
| Accepts Wire Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Operating Temperature range | -55 – 125 °C [ -67 – 257 °F ] |
| Including | Housing Socket,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on. |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
