Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Part-No.: | DT06-6S-E003 | Pin: | 6 Pin |
|---|---|---|---|
| Gender: | Female | Gross Weight: | 2kgs/100pcs |
| Application: | For Truck / Bus | STYLE: | Deutsch Automotive Connectors |
| Color: | Gray | Part Number: | DT06-6S-E003 |
| Highlight: | deutsch waterproof connectors,deutsch dt series connectors |
||

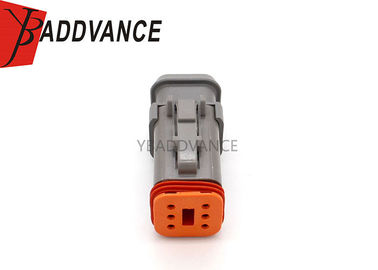

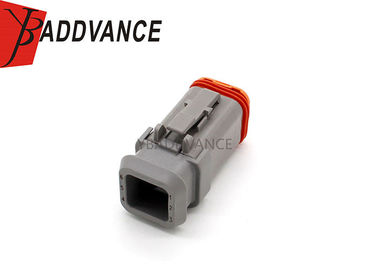

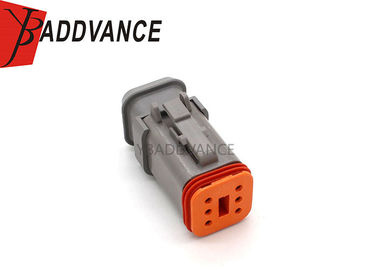

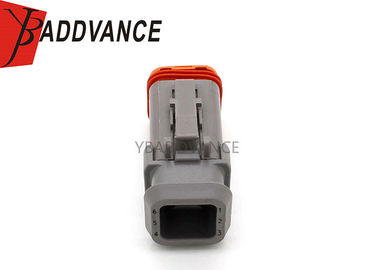

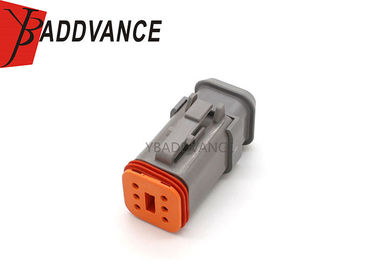

DT06-6S-E003 6 Pin DT Series Female Connector With Wedgelock And Long Cap
Description
6 Pin DT Series Female Connector With Wedgelock And Long Cap
This part come with the following types:
Original number:DT06-6S-E003
Pin n/p: 6 pin
Gender:Female
Series:DT Series
Material :PBT
Included:Terminals / Wedge / Long Cap.
Color:Gray
Application:For Truck / Bus
Specification
| Product Name | 6 Pin DT Series Female Connector |
| Delivery Time | About 3-7 days |
| Way | 6 Way |
| Wire Size | 16-20AWG |
| P/N | DT06-6S-E003 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
Hot products
| Deutsch Connector | Pin number | Gender | Application |
| DTM06-3S-E007 | 3 Pin | Female connector | For Truck / Bus |
| DTM06-2S-EE03 | 2 Pin | Female connector | For Truck / Bus |
| DT04-8P | 8 Pin | Male connector | For Truck / Bus |
| DTM04-12P | 12 Pin | Male connector | For Truck / Bus |
| DT04-2P-CE04 | 2 Pin | Male connector | For Truck / Bus |
| DT06-12SA-CE01 | 12 Pin | Female connector | For Truck / Bus |
| DT04-4P-CE04 | 4 Pin | Male connector | For Truck / Bus |
| So on.. | ... | ... | ... |
